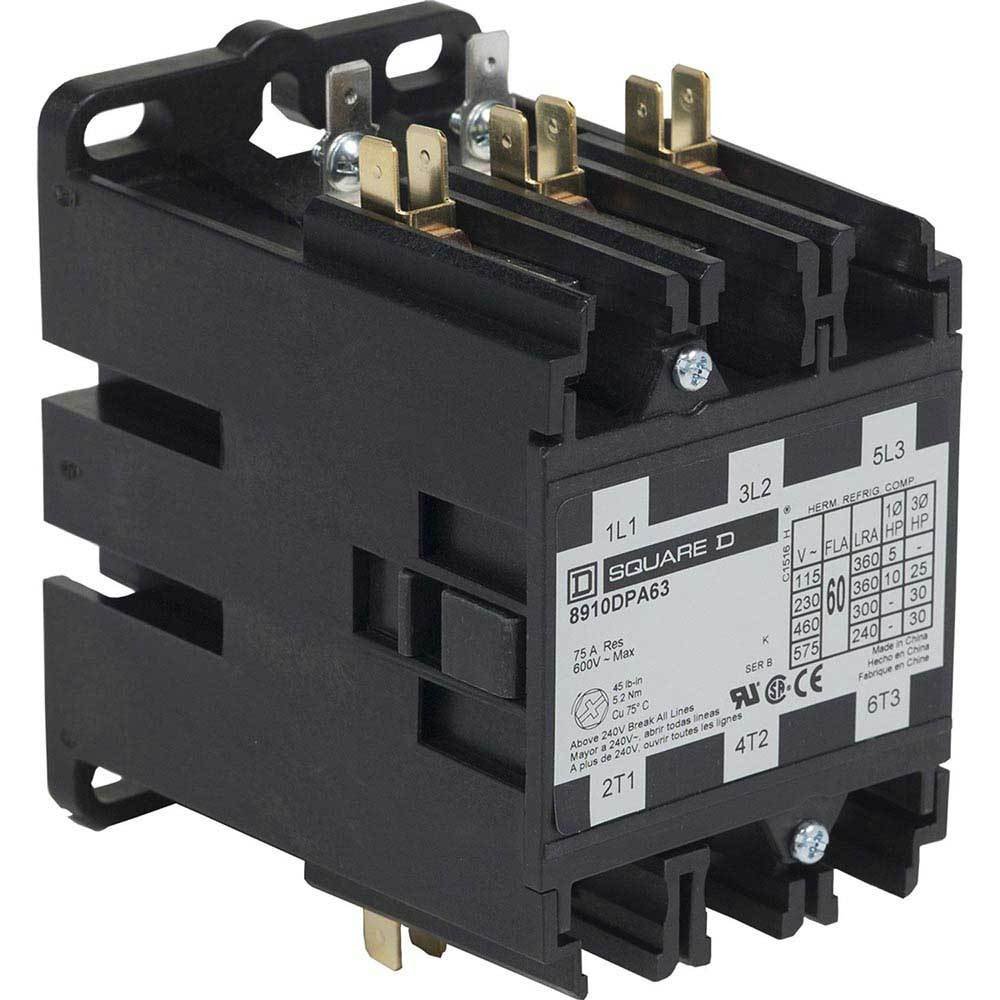

8910DPA63V09 – Square D Definite Purpose Contactor

Schneider Electric / Square D Definite purpose contactor features a three pole 60 ampere non reversing DP Contactor with full load amps-Inductive/resistive 60/75 Amp Includes quick connect terminal and coil voltage rating of 220 V At 50 Hz 208 To 240 V At 60 Hz Suitable for heating air conditioning refrigeration data processing and food service equipment UL Recognized and CSA Certified.

Specifications:

• Product or component type: Definite Purpose Contactor
• Pole contact composition: 3 NO
• Range of product: DPA
• Motor power hp: 5 hp 115 V AC 1 phase, 10 hp 230 V AC 1 phase, 30 hp 460 V AC 3 phases, 30 hp 575 V AC 3 phases, 25 hp 230 V AC 3 phases
• Locked rotor rated current: 360 A 277 V AC, 300 A 460 V AC, 240 A 575 V AC
• System Voltage: 600 V AC
• [Uc] control circuit voltage: 220 V AC 50 Hz, 208…240 V AC 60 Hz
• Phase: 3 phases
• Electrical connection: Quick connect terminals, Box lugs
• Product certifications: CE, UL listed, CSA
• Authentic Square D Product
• 3 phase
