BDL36125 – Square D – Molded Case Circuit Breaker

SKU BDL36125 Category
Availability: Some items may be in stock.
For current availability or a custom quote, please contact us at quote@amrocor.com.

Price:

$ 1,399.99

BDL36125 – Square D – Molded Case Circuit Breaker

SKU BDL36125 Category
Thumb
Thumb
Thumb
Thumb
Thumb
Product Image
Product Image
Product Image
Product Image
Product Image
Click image to view
Photo may not represent actual item. Refer to name and product specs for all details.
Price:

$ 1,399.99

Availability: Some items may be in stock.
For current availability or a custom quote, please contact us at quote@amrocor.com.

Description

Overview

Product Specifications – BDL36125 – Square D Molded Case Circuit Breakers

  • Part Number:

    BDL36125

  • Manufacturer:

    Square D

  • Family:

    Powerpact

  • Pole:

    3

  • Amp

    125

  • Volt:

    600

  • Phase:

    3

  • Category:

    Molded Case / 3-Pole

  • Connection:

    Feed-Thru

  • Type:

    BDL

  • Functions:

    LI – Long-Time and Instantaneous

  • Protection:

    Thermal Magnetic

  • AIC Ratings:

    18kA@480V

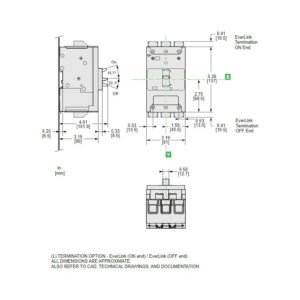

Dimensions

  • Dimensions (HxWxD):

    5.39″ x 2.13″ x 3.15″

  • Weight:

    2.37 lbs

Additional Details

  • Trip Unit Technology:

    Thermal-magnetic

  • Line Rated Current:

    125 Amp

  • Mounting Mode:

    Clip-on 35 x 15 mm symmetrical DIN rail)
    By screws plate)

  • Breaking Capacity Code

    D

  • Electrical Connection:

    Everlink lug line / Everlink lug load

  • Continuous Current Rating

    80%

  • Control Type:

    Toggle

  • AWG Gauge:

    AWG 6…AWG 2/0 fine stranded aluminium/copper
    AWG 14…AWG 3/0 rigid or stranded aluminium/copper

Standards

CSA Approved logo

Product Description – BDL36125 – Square D Molded Case Circuit Breakers

Square D / Schneider Electric, Powerpact, type BDL, 3PH, 3P, 600Y/347Vac, 125A, 18kA@480V, feed-thru with EverLink connectors, complete with non-interchangeable trip, LI – Long-Time and Instantaneous trip functions and line & load side lug terminals

Documentation

PDF Icon Catalogue

PDF Icon Product Specifcation
