BGA36090 – Square D – Molded Case Circuit Breaker

SKU BGA36090 Category
Availability: Some items may be in stock.
For current availability or a custom quote, please contact us at quote@amrocor.com.

Price:

$ 699.99

BGA36090 – Square D – Molded Case Circuit Breaker

SKU BGA36090 Category
Thumb
Thumb
Thumb
Thumb
Thumb
Product Image
Product Image
Product Image
Product Image
Product Image
Click image to view
Photo may not represent actual item. Refer to name and product specs for all details.
Price:

$ 699.99

Availability: Some items may be in stock.
For current availability or a custom quote, please contact us at quote@amrocor.com.

Description

Overview

Product Specifications – BGA36090 – Square D Molded Case Circuit Breakers

  • Part Number:

    BGA36090

  • Manufacturer:

    Square D

  • Family:

    Powerpact

  • Pole:

    3

  • Amp

    90

  • Volt:

    600

  • Phase:

    3

  • Category:

    Molded Case / 3-Pole

  • Connection:

    I-Line Style Plug-In

  • Type:

    BGA

  • Functions:

    LI – Long-Time and Instantaneous

  • Protection:

    Thermal Magnetic

  • AIC Ratings:

    35kA@480V

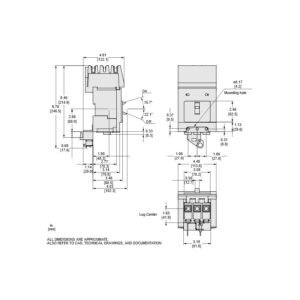

Dimensions

  • Dimensions (HxWxD):

    5.39″ x 3.19″ x 3.50″

  • Weight:

    2.90 lbs

Additional Details

  • Trip Unit Technology:

    Thermal-magnetic

  • Line Rated Current:

    90 Amp

  • Mounting Mode:

    I-Line

  • Breaking Capacity Code:

    G

  • Electrical Connection:

    I-Line connection line / Lugs load

  • Continuous Current Rating:

    80%

  • Control Type:

    Toggle

  • AWG Gauge:

    AWG 14…AWG 2/0 aluminium/copper

Standards

CSA Approved logo

Product Description – BGA36090 – Square D Molded Case Circuit Breakers

Schneider Electric / Square D, Powerpact, type BGA, 3PH, 3P, 600Y/347Vac, 90A, 35kA@480V rated, i-line style plug-in with ABC phase connection, complete with non-interchangeable trip, LI – Long-Time and Instantaneous trip functions and load side mechanical lug terminals, thermal magnetic, molded case circuit breakers.

Documentation

PDF Icon Catalogue

PDF Icon Product Specifcation
