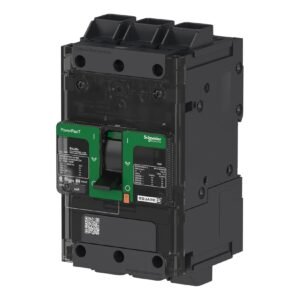

BGL36100 – Square D – Molded Case Circuit Breaker

SKU BGL36100 Category
Availability: Some items may be in stock.
For current availability or a custom quote, please contact us at quote@amrocor.com.

Price:

$ 999.99

BGL36100 – Square D – Molded Case Circuit Breaker

SKU BGL36100 Category
Thumb
Thumb
Thumb
Thumb
Product Image
Product Image
Product Image
Product Image
Click image to view
Photo may not represent actual item. Refer to name and product specs for all details.
Price:

$ 999.99

Availability: Some items may be in stock.
For current availability or a custom quote, please contact us at quote@amrocor.com.

Description

Overview

Product Specifications – BGL36100 – Square D Molded Case Circuit Breakers

  • Part Number:

    BGL36100

  • Manufacturer:

    Square D

  • Family:

    Powerpact

  • Pole:

    3

  • Amp

    100

  • Volt:

    600

  • Phase:

    3

  • Category:

    Molded Case / 3-Pole

  • Connection:

    Feed-Thru

  • Type:

    BGL

  • Functions:

    LI – Long-Time and Instantaneous

  • Protection:

    Thermal Magnetic

  • AIC Ratings:

    35kA@480V

Dimensions

  • Dimensions (HxWxD):

    5.39″ x 3.19″ x 3.15″

  • Weight:

    2.37 lbs

Additional Details

  • Trip Unit Technology:

    Thermal-magnetic

  • Line Rated Current:

    100 Amp

  • Mounting Mode:

    I-Line

  • Breaking Capacity Code:

    G

  • Electrical Connection:

    I-Line connection line / Lugs load

  • Continuous Current Rating:

    80%

  • Control Type:

    Toggle

  • AWG Gauge:

    AWG 14…AWG 2/0 aluminium/copper

Standards

CSA Approved logo

Product Description – BGL36100 – Square D Molded Case Circuit Breakers

Square D / Schneider Electric, Powerpact, type BGL, 3PH, 3P, 600Y/347Vac, 100A, 35kA@480V, feed-thru with EverLink connectors, complete with non-interchangeable trip, LI – Long-Time and Instantaneous trip functions and line & load side lug terminals.

Documentation

PDF Icon Catalogue

PDF Icon Product Specifcation
