EDB16020 – Square D – Molded Case Circuit Breaker

SKU EDB16020 Category
Availability: Some items may be in stock.
For current availability or a custom quote, please contact us at quote@amrocor.com.

Price:

$ 72.99

EDB16020 – Square D – Molded Case Circuit Breaker

SKU EDB16020 Category
Thumb
Thumb
Thumb
Thumb
Product Image
Product Image
Product Image
Product Image
Click image to view
Photo may not represent actual item. Refer to name and product specs for all details.
Price:

$ 72.99

Availability: Some items may be in stock.
For current availability or a custom quote, please contact us at quote@amrocor.com.

Description

Overview

Product Specifications – EDB16020 – Square D Bolt-On Circuit Breaker

  • Category:

    Molded Case / 1-Pole

  • Connection:

    Bolt-On

  • Type:

    EDB

  • Functions:

    LI – Long-Time and Instantaneous

  • Protection:

    Thermal Magnetic

  • AIC Ratings:

    14 kA @ 600Y/347 V AC

Dimensions

  • Dimensions (HxWxD):

    5.66″ x 0.98″ x 4.05″

  • Weight:

    2lbs

Standards

CSA Approved logo

Additional Details

  • Protection Type:

    Short-Circuit / Overload

  • Module Type:

    E-Frame

  • Trip Unit Rating:

    875 Amp

  • Line Rated Current:

    20 Amp

  • Maximum Operating Voltage:

    347 V AC

  • Mounting Mode:

    Bolt-On

  • Product Destination:

    Square D NF Panelboard

  • Electrical Connection:

    Aluminum Lugs

  • Holding Current:

    270 Amp

  • Local Signaling:

    Trip Indicator

  • Circuit Breaker Application:

    HID-Rated / HACR-Rated

  • AWG Gauge:

    AWG 12…AWG 6 Aluminum | AWG 14…AWG 6 Copper

Product Description – EDB16020 – Square D Bolt-On Circuit Breaker

Schneider Electric / Square D’s EDB16020 bolt-on molded case circuit breaker is a reliable and easy-to-install device designed for use in Square D NF Panelboards. This circuit breaker is CSA-rated, HID-rated and HACR-rated, and UL Listed as High-Intensity Discharge.

The EDB16020 is a 1-pole bolt-on circuit breaker, rated at 20A at a system voltage of 347V AC. The circuit breaker has a thermal-magnetic trip unit and a signal indicator to indicate when a trip occurred. The device has a hold current of 270A (the maximum current the breaker can be held at to ensure a trip will occur) and a trip current of 875A (the current value when the breaker is guaranteed to trip).

Square D’s EDB16020 circuit breaker is calibrated for 40 degrees C and has aluminum lugs with a terminal lug rating of AWG 12…AWG 6 (aluminum) and AWG 14…AWG 6 (copper).

You may also like

Related products

Customers Also Bought

PGA36060CU33A - Square D - Molded Case Circuit Breaker
PGA36060CU33A – Square D – Molded C...
SKU: PGA36060CU33A
In stock
Original price was: $ 8,084.99.Current price is: $ 4,850.99.
HFD2070 - Eaton - Molded Case Circuit Breaker
HFD2070 – Eaton – Molded Case Circu...
SKU: HFD2070
In stock
Original price was: $ 629.99.Current price is: $ 316.99.

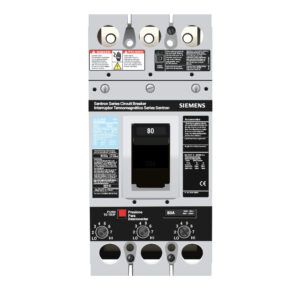

HGB3B080B - Siemens - Molded Case Circuit Breaker
