EDB24070 – Square D – Molded Case Circuit Breaker

SKU MOLDED-0627 Category
Availability: Some items may be in stock.
For current availability or a custom quote, please contact us at quote@amrocor.com.

Price:

$ 185.99

EDB24070 – Square D – Molded Case Circuit Breaker

SKU MOLDED-0627 Category
Thumb
Product Image
Click image to view

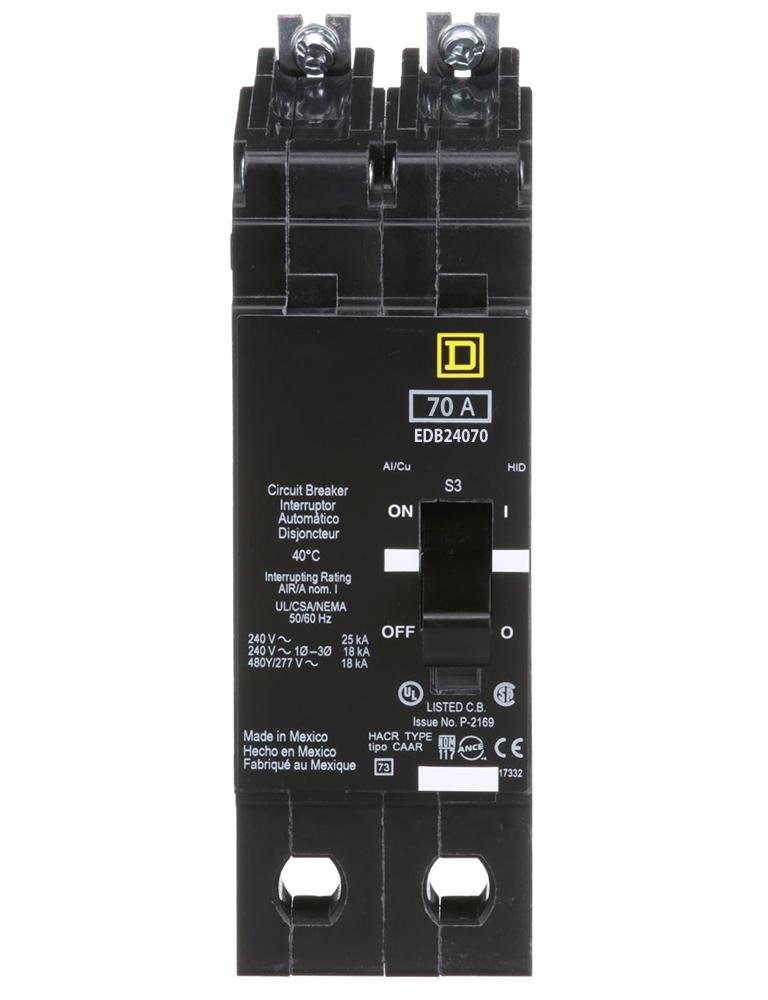

Photo may not represent actual item. Refer to name and product specs for all details.
Price:

$ 185.99

Availability: Some items may be in stock.
For current availability or a custom quote, please contact us at quote@amrocor.com.

Description

Overview

Product Specifications – EDB24070 – Square D Bolt-On Circuit Breaker

  • Category:

    Molded Case / 2-Pole

  • Connection:

    Bolt-On

  • Type:

    EDB

  • Functions:

    LI – Long-Time and Instantaneous

  • Protection:

    Thermal Magnetic

  • AIC Ratings:

    18kA@480V | 18kA@277V | 25kA@240V | 25kA@120V

Dimensions

  • Dimensions (HxWxD):

    5.66″ x 1.96″ x 4.05″

  • Weight:

    4lbs

Standards

CSA Approved logo

Additional Details

  • Protection Type:

    Short-Circuit / Overload

  • Module Type:

    E-Frame

  • Trip Unit Rating:

    875 Amp

  • Line Rated Current:

    70 Amp

  • Maximum Operating Voltage:

    480Y/277 V AC

  • Mounting Mode:

    Bolt-On

  • Product Destination:

    Square D NF Panelboard

  • Electrical Connection:

    Aluminum Lugs

  • Holding Current:

    270 Amp

  • Local Signaling:

    Trip Indicator

  • Circuit Breaker Application:

    HID-Rated / HACR-Rated

  • AWG Gauge:

    AWG 12…AWG 6 Aluminum | AWG 14…AWG 6 Copper

Product Description – EDB24070 – Square D Bolt-On Circuit Breaker

Schneider Electric / Square D’s EDB24070 bolt-on molded case circuit breaker is a reliable and easy-to-install device designed for use in Square D NF Panelboards. This circuit breaker is CSA-rated, HID-rated and HACR-rated, and UL Listed as High-Intensity Discharge.

The EDB24070 is a 2-pole bolt-on circuit breaker, rated at 70A at a system voltage of 480Y/277V AC. The circuit breaker has a thermal-magnetic trip unit and a signal indicator to indicate when a trip occurred. The device has a hold current of 270A (the maximum current the breaker can be held at to ensure a trip will occur) and a trip current of 875A (the current value when the breaker is guaranteed to trip).

Square D’s EDB24070 circuit breaker is calibrated for 40 degrees C and has aluminum lugs with a terminal lug rating of AWG 12…AWG 6 (aluminum) and AWG 14…AWG 6 (copper).
