EDB36080 – Square D – Molded Case Circuit Breaker

SKU EDB36080 Category
Availability: Some items may be in stock.
For current availability or a custom quote, please contact us at quote@amrocor.com.

Price:

Original price was: $ 911.00.Current price is: $ 399.99.

EDB36080 – Square D – Molded Case Circuit Breaker

SKU EDB36080 Category
Thumb
Thumb
Thumb
Thumb
Product Image
Product Image
Product Image
Product Image
Click image to view
Photo may not represent actual item. Refer to name and product specs for all details.
Price:

Original price was: $ 911.00.Current price is: $ 399.99.

Availability: Some items may be in stock.
For current availability or a custom quote, please contact us at quote@amrocor.com.

Description

Overview

Product Specifications – EDB36080 – Square D Bolt-On Circuit Breaker

  • Category:

    Molded Case / 3-Pole

  • Connection:

    Bolt-On

  • Type:

    EDB

  • Functions:

    LI – Long-Time and Instantaneous

  • Protection:

    Thermal Magnetic

  • AIC Ratings:

    14 kA 600Y/347 V AC

Dimensions

  • Dimensions (HxWxD):

    5.66″ x 2.94″ x 4.05″

  • Weight:

    4lbs

Standards

CSA Approved logo

Additional Details

  • Protection Type:

    Short-Circuit / Overload

  • Module Type:

    E-Frame

  • Trip Unit Rating:

    875 Amp

  • Line Rated Current:

    80 Amp

  • Maximum Operating Voltage:

    600Y/347 V AC

  • Mounting Mode:

    Bolt-On

  • Product Destination:

    Square D NF Panelboard

  • Electrical Connection:

    Aluminum Lugs

  • Holding Current:

    270 Amp

  • Local Signaling:

    Trip Indicator

  • Circuit Breaker Application:

    HID-Rated / HACR-Rated

  • AWG Gauge:

    AWG 12…AWG 6 Aluminum | AWG 14…AWG 6 Copper

Product Description – EDB36080 – Square D Bolt-On Circuit Breaker

Schneider Electric / Square D’s EDB36080 bolt-on molded case circuit breaker is a reliable and easy-to-install device designed for use in Square D NF Panelboards. This circuit breaker is CSA-rated, HID-rated and HACR-rated, and UL Listed as High-Intensity Discharge.

The EDB36080 is a 3-pole bolt-on circuit breaker, rated at 80A at a system voltage of 600Y/347 V AC. The circuit breaker has a thermal-magnetic trip unit and a signal indicator to indicate when a trip occurred. The device has a hold current of 270A (the maximum current the breaker can be held at to ensure a trip will occur) and a trip current of 875A (the current value when the breaker is guaranteed to trip).

Square D’s EDB36080 circuit breaker is calibrated for 40 degrees C and has aluminum lugs with a terminal lug rating of AWG 12…AWG 6 (aluminum) and AWG 14…AWG 6 (copper).

You may also like

Related products

Customers Also Bought

04089EP3PCT364V2-W22 WEG NEMA Premium Efficiency Motor (40/10 HP, 3PH, 200V)
04089EP3PCT364V2-W22 WEG NEMA Premium Efficienc...
SKU: WEG-2013
In stock
Original price was: $ 11,336.00.Current price is: $ 8,827.91.
S5P2GCR U.S. Motors General Purpose Steel Edge Motor (5 HP, 1800 RPM, 575V, Three Phase)
S5P2GCR U.S. Motors General Purpose Steel Edge ...
SKU: USMOTORS-0751
In stock
$ 0.00
PCQ110H WEG Motor, Pool and Spa (1 HP, L48Y FRAME, 115/230 V, SINGLE PHASE, ODP , 3510 RPM)
PCQ110H WEG Motor, Pool and Spa (1 HP, L48Y FRA...
SKU: WEG-2326
In stock
Original price was: $ 416.00.Current price is: $ 323.96.
MES3800LSI - Eaton - Trip Unit
MES3800LSI – Eaton – Trip Unit
SKU: MES3800LSI
In stock
Original price was: $ 3,509.99.Current price is: $ 3,158.99.
ECP84310T-5 Baldor Severe Duty IEEE 841 Motor (60 HP, 3600 RPM, 3 Phase, 364TS Frame, TEFC Enclosure, 575 Voltage)
ECP84310T-5 Baldor Severe Duty IEEE 841 Motor (...
SKU: BALDOR-1166
In stock
Original price was: $ 22,178.75.Current price is: $ 15,636.01.

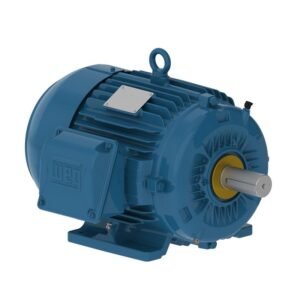

02009ST3QIE324T-W22 WEG Motor (20 HP, 324T FRAME, 460 V, THREE PHASE, TEFC , 880 RPM)
