FAL36015 – Square D – Molded Case Circuit Breaker

SKU FAL36015 Category
Availability: Some items may be in stock.
For current availability or a custom quote, please contact us at quote@amrocor.com.

Price:

Original price was: $ 416.99.Current price is: $ 249.99.

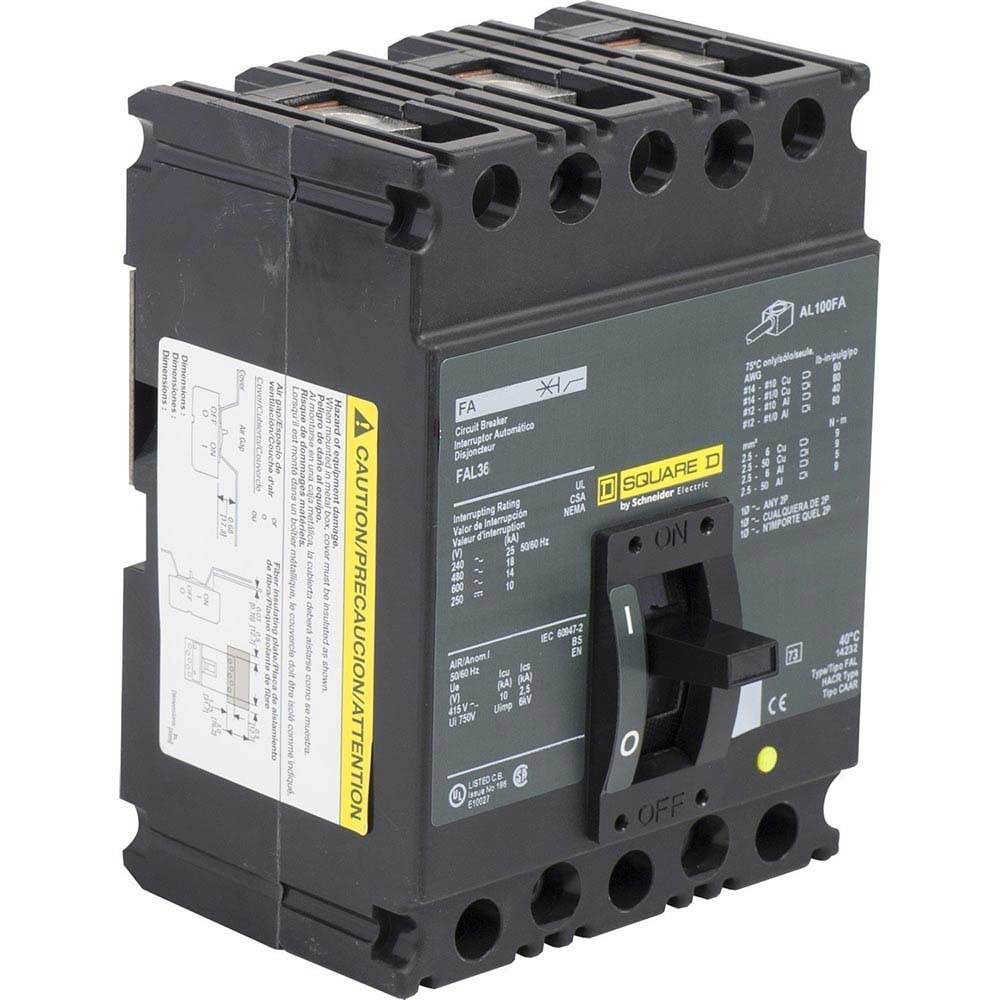

FAL36015 – Square D – Molded Case Circuit Breaker

SKU FAL36015 Category
Thumb
Product Image
Click image to view
Photo may not represent actual item. Refer to name and product specs for all details.
Price:

Original price was: $ 416.99.Current price is: $ 249.99.

Availability: Some items may be in stock.
For current availability or a custom quote, please contact us at quote@amrocor.com.

Description

Overview

Product Specifications – FAL36015 – Square D Powerpact Circuit Breaker

  • Category:

    Molded Case / 3-Pole

  • Connection:

    Feed-Thru

  • Type:

    FAL

  • Functions:

    LI – Long-Time and Instantaneous

  • Protection:

    Thermal Magnetic

  • AIC Ratings:

    18kA@480V

Dimensions

  • Dimensions (HxWxD):

    6″ x 4.5″ x 4.13″

  • Weight:

    5.04 lbs

Standards

CSA Approved logo

Additional Details

  • Frame Type:

    F-Frame

  • Trip Unit Technology:

    Thermal-magnetic

  • Line Rated Current:

    15 A

  • Mounting Mode:

    Unit Mount

  • Breaking Capacity Code

    A

  • Electrical Connection:

    Lugs load / Lugs Line

  • Magnetic Hold Current:

    275 A

Product Description – FAL36015 – Square D Powerpact Circuit Breaker

Square D, FAL Series, type FAL, 3P, 3PH, 15A, 600V, 14kA@600V, standard interrupting capacity, feed-thru, complete with LI – Long-Time and Instantaneous trip functions and line & load side lug terminals, thermal magnetic molded case circuit breakers.
