FXD63B070 – Siemens – Molded Case Circuit Breaker

SKU FXD63B070 Category
Availability: Some items may be in stock.
For current availability or a custom quote, please contact us at quote@amrocor.com.

Price:

Original price was: $ 799.99.Current price is: $ 469.99.

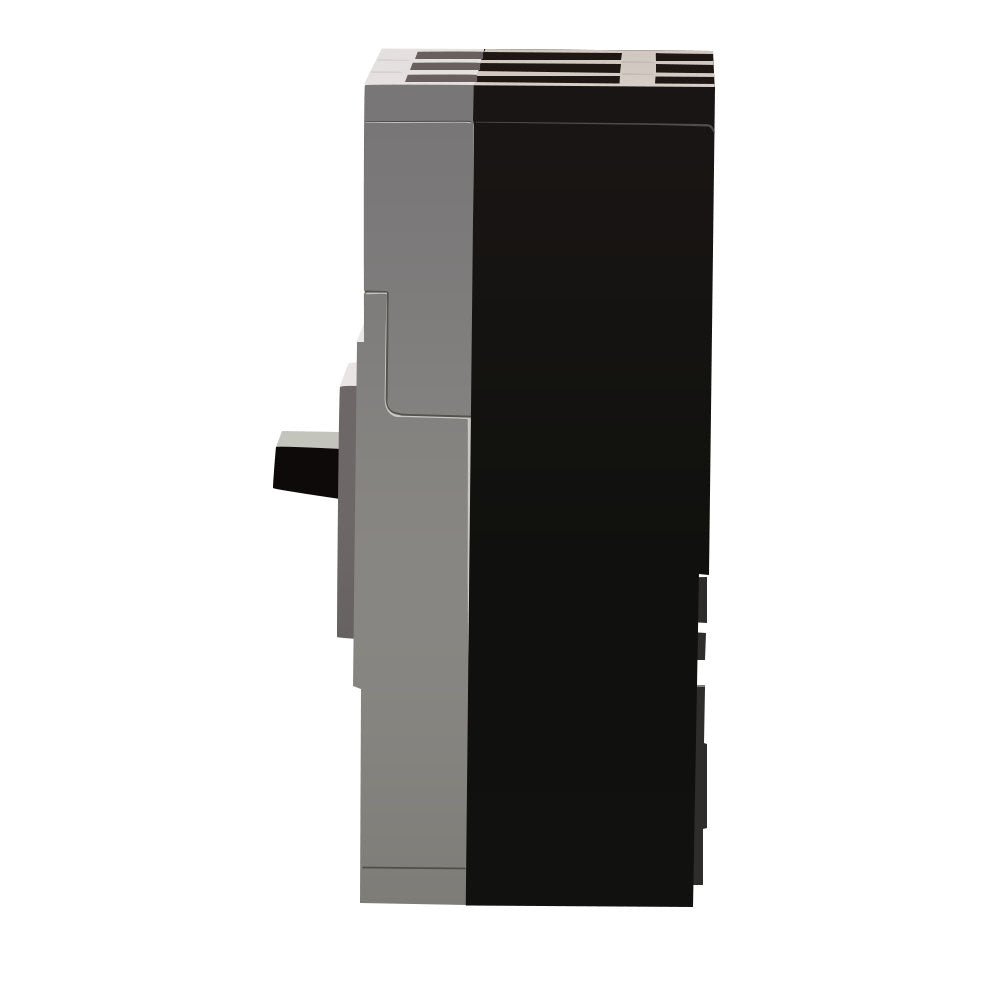

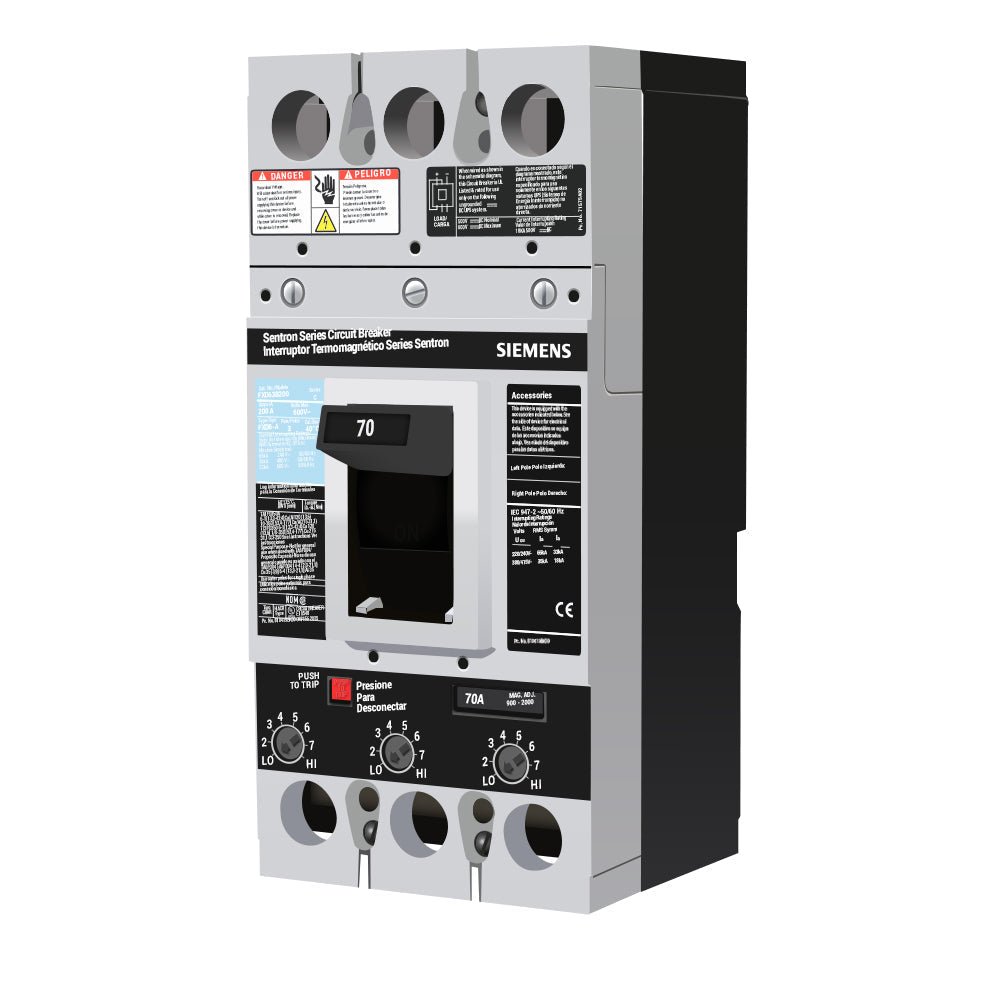

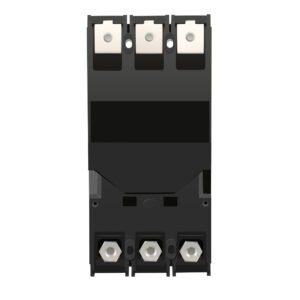

FXD63B070 – Siemens – Molded Case Circuit Breaker

SKU FXD63B070 Category
Thumb
Thumb
Thumb
Thumb
Thumb
Product Image
Product Image
Product Image
Product Image
Product Image
Click image to view
Photo may not represent actual item. Refer to name and product specs for all details.
Price:

Original price was: $ 799.99.Current price is: $ 469.99.

Availability: Some items may be in stock.
For current availability or a custom quote, please contact us at quote@amrocor.com.

Description

Overview

Product Specifications – FXD63B070 – Siemens Breakers Molded Case Circuit Breakers

  • Part Number:

    FXD63B070

  • Manufacturer:

    Siemens Breakers

  • Family:

    Sentron Series

  • Pole:

    3

  • Amp

    70

  • Volt:

    600

  • Phase:

    3

  • Category:

    Molded Case / 3-Pole

  • Connection:

    Bolt-On

  • Type:

    FXD

  • Functions:

    LI – Long-Time and Instantaneous

  • Protection:

    Thermal Magnetic

  • AIC Ratings:

    35kA@480V

Dimensions

  • Dimensions (HxWxD):

    9.5″ x 4.5″ x 4″

  • Weight:

    8.95 lbs

Standards

CSA Approved logo

Product Description – FXD63B070 – Siemens Breakers Molded Case Circuit Breakers

Siemens, Sentron Series, type FXD, 3P, 3PH, 70A, 600V, 35kA@480V, standard interrupting capacity, 40 degree C, bolt-on, UL listed for reverse fed applications, complete with non-interchangeable trip, LI – Long-Time and Instantaneous trip functions. No lugs installed., thermal magnetic molded case circuit breakers.

Documentation

PDF Icon Catalogue

PDF Icon Installation Instructions

PDF Icon Data Sheet
