HDA36060U33X – Square D – Molded Case Circuit Breaker

SKU MOLDED-4836 Category
Availability: Some items may be in stock.
For current availability or a custom quote, please contact us at quote@amrocor.com.

Price:

Original price was: $ 1,512.00.Current price is: $ 1,199.99.

HDA36060U33X – Square D – Molded Case Circuit Breaker

SKU MOLDED-4836 Category
Thumb
Thumb

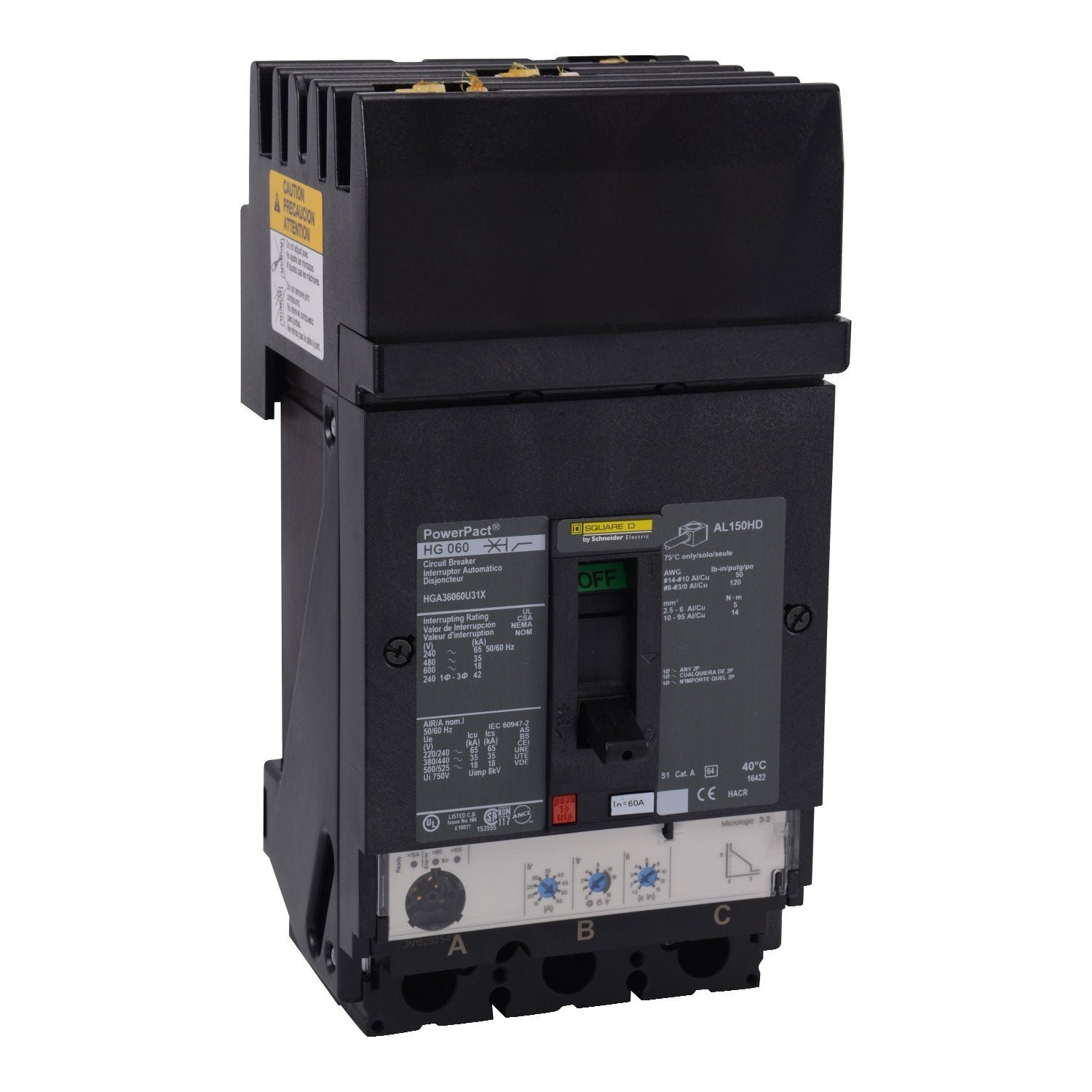

Product Image
Product Image
Click image to view
Photo may not represent actual item. Refer to name and product specs for all details.
Price:

Original price was: $ 1,512.00.Current price is: $ 1,199.99.

Availability: Some items may be in stock.
For current availability or a custom quote, please contact us at quote@amrocor.com.

Description

Overview

Product Specifications – HDA36060U33X – Square D Powerpact Circuit Breaker

  • Category:

    Molded Case / 3-Pole

  • Connection:

    I-Line Style Plug-In

  • Type:

    HDA

  • Functions:

    LSI – Long-Time, Short-Time and Instantaneous

  • Protection:

    Thermal Magnetic

  • AIC Ratings:

    18kA@480V

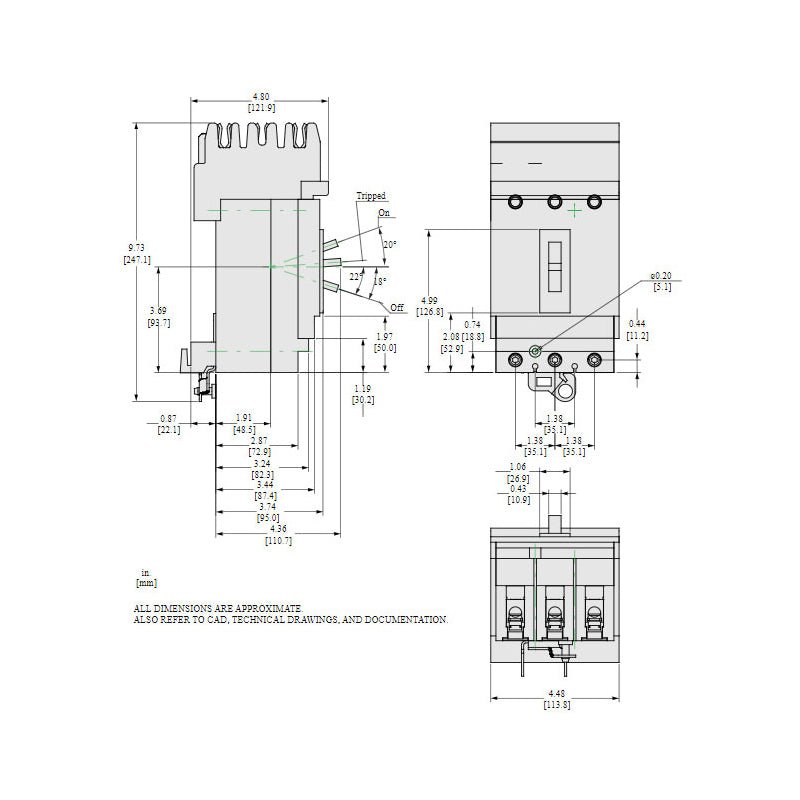

Dimensions

  • Dimensions (HxWxD):

    6.42″ x 4.09″ x 3.39″

  • Weight:

    4.85 lbs

Standards

CSA Approved logo

Additional Details

  • Frame Type:

    H-Frame

  • Trip Unit Technology:

    Thermal-magnetic

  • Line Rated Current:

    60 A

  • Mounting Mode:

    I-Line bracket

  • Breaking Capacity Code

    D

  • Electrical Connection:

    I-Line connection line / Lugs load

  • Continuous Current Rating:

    80%

  • Control Type:

    Toggle

  • AWG Gauge:

    AWG 14…AWG 3/0 aluminium/copper terminal

Product Description – HDA36060U33X – Square D Powerpact Circuit Breaker

Square D, Powerpact, type HDA, 3P, ABC phase connection, 3PH, 60A, 600V, 18kA@480V, standard interrupting capacity, i-line style plug-in, UL listed, suitable for reverse connection, can be used for 2P applications, complete with micrologic standard 3.2S non-interchangeable trip, LSI – Long-Time.

Documentation

PDF Icon Catalogue

PDF Icon Technical Specifications
