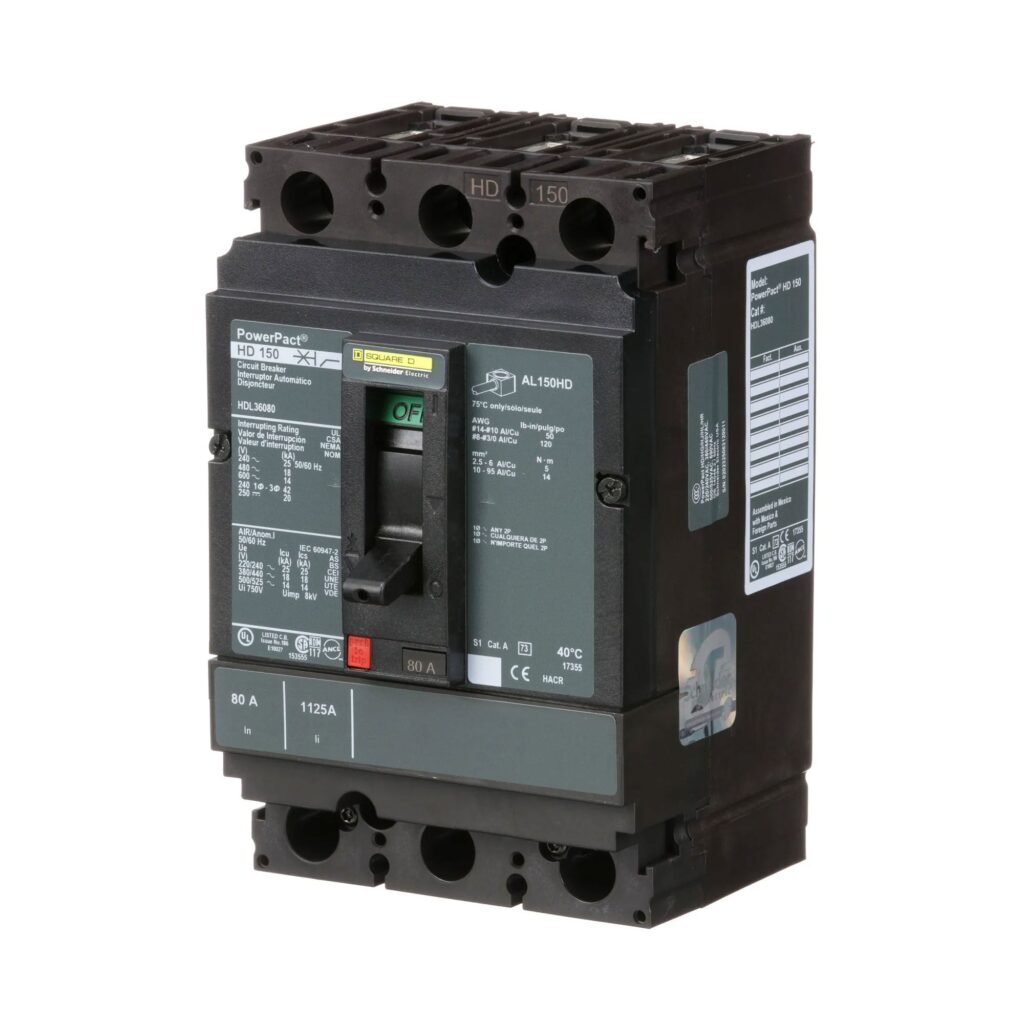

HDL36080 – Square D – Molded Case Circuit Breaker

SKU HDL36080 Category
Availability: Some items may be in stock.
For current availability or a custom quote, please contact us at quote@amrocor.com.

Price:

Original price was: $ 1,328.00.Current price is: $ 549.99.

HDL36080 – Square D – Molded Case Circuit Breaker

SKU HDL36080 Category
Thumb
Thumb
Thumb
Thumb
Thumb
Product Image
Product Image
Product Image
Product Image
Product Image
Click image to view
Photo may not represent actual item. Refer to name and product specs for all details.
Price:

Original price was: $ 1,328.00.Current price is: $ 549.99.

Availability: Some items may be in stock.
For current availability or a custom quote, please contact us at quote@amrocor.com.

Description

Overview

Product Specifications – HDL36080 – Square D Powerpact Circuit Breaker

  • Category:

    Molded Case / 3-Pole

  • Connection:

    Feed-Thru

  • Type:

    HDL

  • Functions:

    LI – Long-Time and Instantaneous

  • Protection:

    Thermal Magnetic

  • AIC Ratings:

    18kA@480V

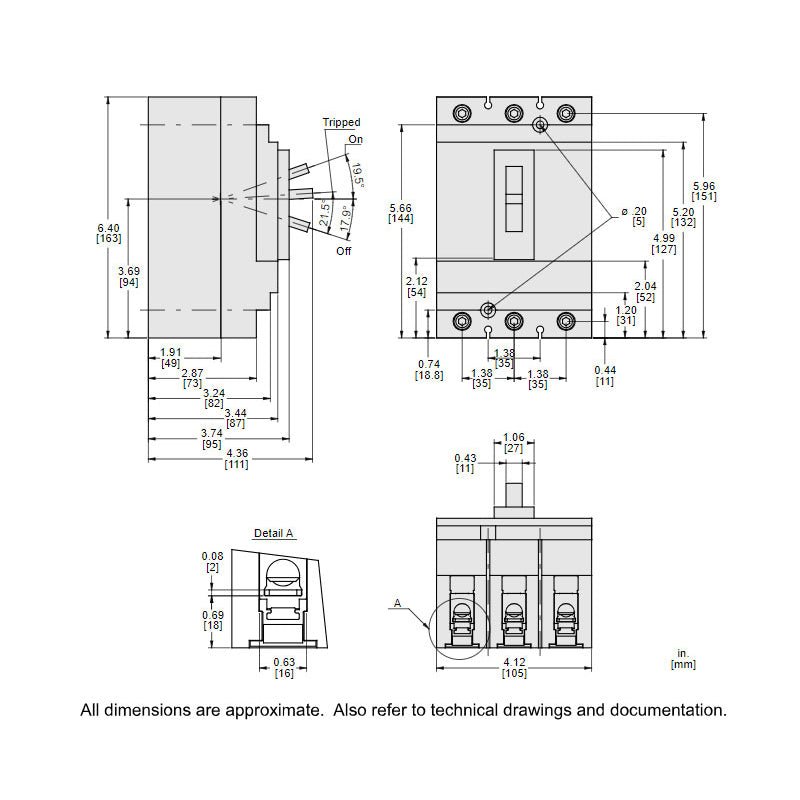

Dimensions

  • Dimensions (HxWxD):

    6.4″ x 4.12″ x 4.36″

  • Weight:

    1.86 lbs

Standards

CSA Approved logo

Additional Details

  • Frame Type:

    H-Frame

  • Trip Unit Technology:

    Thermal-magnetic

  • Line Rated Current:

    80 A

  • Mounting Mode:

    Unit mount lug

  • Breaking Capacity Code

    D

  • Electrical Connection:

    Lugs line / Lugs load

  • Magnetic Hold Current:

    800 A

  • Continuous Current Rating:

    80%

  • Control Type:

    Toggle

  • AWG Gauge:

    AWG 14…AWG 3/0 aluminium/copper terminal

Product Description – HDL36080 – Square D Powerpact Circuit Breaker

Schneider Electric / Square D, Powerpact, type HDL, 3P, 3PH, 80A, 600V, 18kA@480V, standard interrupting capacity, feed-thru, UL listed, suitable for reverse fed applications, complete with non-interchangeable trip, LI – Long-Time and Instantaneous trip functions and line & load side lug terminals, thermal magnetic, molded case circuit breakers

Documentation

PDF Icon Catalogue

PDF Icon Technical Specifications

You may also like

Related products

Customers Also Bought

THQL1115DF - GE - 15 Amp Dual Function Circuit Breaker
THQL1115DF – GE – 15 Amp Dual Funct...
SKU: thql1115df
In stock
$ 65.04
C25FNF275A - Eaton - Magnetic Contactor
C25FNF275A – Eaton – Magnetic Conta...
SKU: C25FNF275A
In stock
$ 257.99
QCF2050 - Eaton - Circuit Breaker
QCF2050 – Eaton – Circuit Breaker
SKU: QCF2050
In stock
$ 41.99
1311087115 WEG HydroDuty NEMA Premium Efficiency (1 HP, 04P, 56C, 230/460 V, 60 Hz, TEFC)
1311087115 WEG HydroDuty NEMA Premium Efficienc...
SKU: WEG-0465
In stock
$ 0.00
ED42B070L - Siemens - Molded Case Circuit Breaker
ED42B070L – Siemens – Molded Case C...
SKU: ED42B070L
In stock
$ 265.99

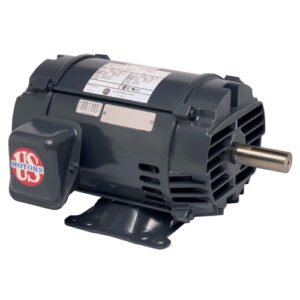

D50P2GS U.S. Motors General Purpose Motor (50 HP, 326TS Frame, Three Phase, 1800 RPM)
