HGL36100U33X – Square D – Molded Case Circuit Breaker

SKU HGL36100U33X Category
Availability: Some items may be in stock.
For current availability or a custom quote, please contact us at quote@amrocor.com.

Price:

$ 811.99

HGL36100U33X – Square D – Molded Case Circuit Breaker

SKU HGL36100U33X Category
Thumb
Product Image
Click image to view
Photo may not represent actual item. Refer to name and product specs for all details.
Price:

$ 811.99

Availability: Some items may be in stock.
For current availability or a custom quote, please contact us at quote@amrocor.com.

Description

Overview

Product Specifications – HGL36100U33X – Square D Molded Case Circuit Breakers

  • Category:

    Molded Case / 3-Pole

  • Connection:

    Feed-Thru

  • Type:

    HGL

  • Functions:

    LSI – Long-Time, Short-Time and Instantaneous

  • Protection:

    Solid State

  • AIC Ratings:

    35kA@480V

Dimensions

  • Dimensions (HxWxD):

    6.42″ x 4.09″ x 3.39″

  • Weight:

    4.85 lbs

Standards

CSA Approved logo

Additional Details

  • Trip Unit Technology:

    Electronic, standard, MicroLogic 3.2 S, LSI

  • Line Rated Current:

    100 Amp

  • Mounting Mode:

    Unit mount lug

  • Breaking Capacity Code

    G

  • Electrical Connection:

    Lugs line / Lugs load

  • Continuous Current Rating

    80%

  • Control Type:

    Toggle

  • AWG Gauge:

    AWG 14…AWG 3/0 aluminium/copper terminal

Product Description – HGL36100U33X – Square D Molded Case Circuit Breakers

Schneider Electric / Square D, Powerpact, type HGL, 3P, 3PH, 100A, 600V, 18kA@600V, 35kA@480V, 65kA@240V, high interrupting capacity, feed-thru, UL listed, suitable for reverse fed applications, can be used for 2P applications, complete with micrologic standard non-interchangeable trip with LSI, LSI – Long-Time, Short-Time and Instantaneous trip functions and line & load side lug terminals, solid state electronic, molded case circuit breakers

Documentation

PDF Icon Catalogue

PDF Icon Installation Instructions

PDF Icon Technical Specifications

You may also like

Related products

Customers Also Bought

BDA36070 - Square D - Molded Case Circuit Breaker
BDA36070 – Square D – Molded Case C...
SKU: BDA36070
In stock
Original price was: $ 1,225.00.Current price is: $ 599.99.
BRN250GF - Eaton - 50 Amp GFCI Circuit Breaker
BRN250GF – Eaton – 50 Amp GFCI Circ...
SKU: GFCI-0091
In stock
Original price was: $ 273.87.Current price is: $ 48.99.
JD2225 - Eaton - Molded Case Circuit Breaker
JD2225 – Eaton – Molded Case Circui...
SKU: JD2225
In stock
$ 1,089.99
FDB3040L - Eaton - Molded Case Circuit Breaker
FDB3040L – Eaton – Molded Case Circ...
SKU: MOLDED-3887
In stock
Original price was: $ 489.99.Current price is: $ 452.99.
00156ES1B143T-S WEG General Purpose Motor (1.5 HP, 3600 RPM, 1 Phase, 143/5T Frame, TEFC, 115/208-230 Voltage, Foot Mount)
00156ES1B143T-S WEG General Purpose Motor (1.5 ...
SKU: WEG-1299
In stock
Original price was: $ 782.60.Current price is: $ 609.45.
CA3175 - Eaton - Main Circuit Breaker
CA3175 – Eaton – Main Circuit Breaker
SKU: CA3175
In stock
$ 1,569.99
AeroShell Fluid 31 Hydraulic Fluid 1-Gallon Can
AeroShell Fluid 31 Hydraulic Fluid 1-Gallon Can
SKU: AMRO-00002
In stock
$ 99.99

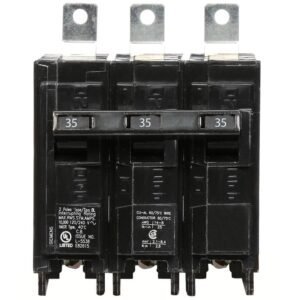

B335 - Siemens - 35 Amp Circuit Breaker
