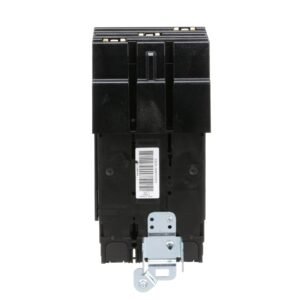

HJA36070 – Square D – Molded Case Circuit Breaker

SKU HJA36070 Category
Availability: Some items may be in stock.
For current availability or a custom quote, please contact us at quote@amrocor.com.

Price:

Original price was: $ 2,225.00.Current price is: $ 999.99.

HJA36070 – Square D – Molded Case Circuit Breaker

SKU HJA36070 Category
Thumb
Thumb
Thumb
Thumb
Thumb
Product Image
Product Image
Product Image
Product Image
Product Image
Click image to view
Photo may not represent actual item. Refer to name and product specs for all details.
Price:

Original price was: $ 2,225.00.Current price is: $ 999.99.

Availability: Some items may be in stock.
For current availability or a custom quote, please contact us at quote@amrocor.com.

Description

Overview

Product Specifications – HJA36070 – Square D Powerpact Circuit Breaker

  • Category:

    Molded Case / 3-Pole

  • Connection:

    I-Line Style Plug-In

  • Type:

    HJA

  • Functions:

    LI – Long-Time and Instantaneous

  • Protection:

    Thermal Magnetic

  • AIC Ratings:

    35kA@480V

Dimensions

  • Dimensions (HxWxD):

    9.37″ x 4.48″ x 4.8″

  • Weight:

    4.85 lbs

Standards

CSA Approved logo

Additional Details

  • Frame Type:

    H-Frame

  • Trip Unit Technology:

    Thermal-magnetic

  • Line Rated Current:

    70 A

  • Mounting Mode:

    I-Line bracket

  • Breaking Capacity Code

    J

  • Electrical Connection:

    I-Line connection line / Lugs load

  • Magnetic Hold Current:

    800 A

  • Continuous Current Rating:

    80%

  • Control Type:

    Toggle

  • AWG Gauge:

    AWG 14…AWG 3/0 aluminium/copper terminal

Product Description – HJA36070 – Square D Powerpact Circuit Breaker

Square D, Powerpact, type HJA, 3PH, 3P, ABC phase connection, 70A, 600V, 65kA@480V, current limiting, i-line style plug-in, UL listed, suitable for reverse fed applications, complete with non-interchangeable trip, LI – Long-Time and Instantaneous trip functions, thermal magnetic, molded case circuit breakers.

Documentation

PDF Icon Catalogue

PDF Icon Technical Specification

You may also like

Related products

Customers Also Bought

SP0012 TECO Westinghouse HVAC Motors (1 HP, 1 Phase, 3600 RPM, 143/145T Frame, ODP, NEMA Premium)
SP0012 TECO Westinghouse HVAC Motors (1 HP, 1 P...
SKU: TECO-0009
In stock
$ 0.00
Placeholder
Mobilgear 600 XP 460 Gear Oil–38 lb Pail | ISO ...
SKU: AMRO-00207
In stock
$ 0.00
HFD63B090L - Siemens - Molded Case Circuit Breaker
HFD63B090L – Siemens – Molded Case ...
SKU: HFD63B090L
In stock
$ 1,085.99
07518ET3PCT365T-W22 WEG NEMA Premium Efficiency Motor (75 HP, 3PH, 200V)
07518ET3PCT365T-W22 WEG NEMA Premium Efficiency...
SKU: WEG-2172
In stock
Original price was: $ 12,901.20.Current price is: $ 10,046.80.

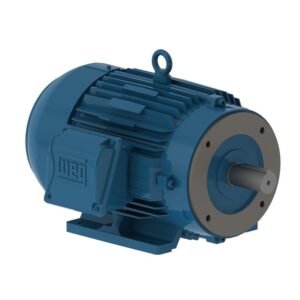

25018ET3G447TSC-W22 WEG Motor (250 HP, 1800 RPM, 3 Phase, 60 Hz, 445/7TSC, 460V, TEFC, Foot Mount)
