Sale!

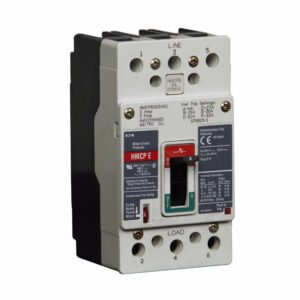

HMCPE050K2C – Eaton – Molded Case Circuit Breaker

SKU HMCPE050K2C Category
Availability: Some items may be in stock.
For current availability or a custom quote, please contact us at quote@amrocor.com.

Price:

Original price was: $ 549.99.Current price is: $ 300.99.

HMCPE050K2C – Eaton – Molded Case Circuit Breaker

SKU HMCPE050K2C Category
Thumb
Thumb
Thumb
Product Image
Product Image
Product Image
Click image to view
Photo may not represent actual item. Refer to name and product specs for all details.
Price:

Original price was: $ 549.99.Current price is: $ 300.99.

Availability: Some items may be in stock.
For current availability or a custom quote, please contact us at quote@amrocor.com.

Description

Overview

Product Specifications – HMCPE050K2C – Eaton Molded Case Circuit Breaker

  • Part Number:

    HMCPE050K2C

  • Manufacturer:

    Eaton Cutler-Hammer

  • Family:

    Series G

  • Pole:

    3

  • Amp

    50

  • Volt:

    480

  • Phase:

    3

  • Category:

    Molded Case / 3-Pole

  • Connection:

    Feed-Thru

  • Type:

    HMCPE

  • Functions:

    I – Instantaneous

  • Protection:

    Magnetic Only

  • AIC Ratings:

    15kA@400V

Dimensions

  • Dimensions (HxWxD):

    B 5.5″ x 3″ x 6.5″

  • Weight:

    2.6 lbs

Standards

CSA Approved logo

Product Description – HMCPE050K2C – Eaton Molded Case Circuit Breaker

Cutler Hammer, Series G, type HMCPE, EG Frame, 3P, 3PH, 50A, 480V, 600Y/347Vac, 40 degree C, feed-thru, complete with non-interchangeable trip with I – Instantaneous protection only, non-aluminum line & load side lug terminals, MCP, motor circuit protector, magnetic range 150-550A, motor FLA 11.5-43.5A, magnetic only, molded case circuit breakers.

Documentation

PDF Icon Catalogue

PDF Icon Technical Specifications

PDF Icon Installation Instructions

PDF Icon Data Sheet
