HOM120EPD – Square D – 20 Amp Molded Case Circuit Breaker

SKU HOM120EPD Category
Availability: Some items may be in stock.
For current availability or a custom quote, please contact us at quote@amrocor.com.

Price:

$ 116.99

HOM120EPD – Square D – 20 Amp Molded Case Circuit Breaker

SKU HOM120EPD Category
Thumb

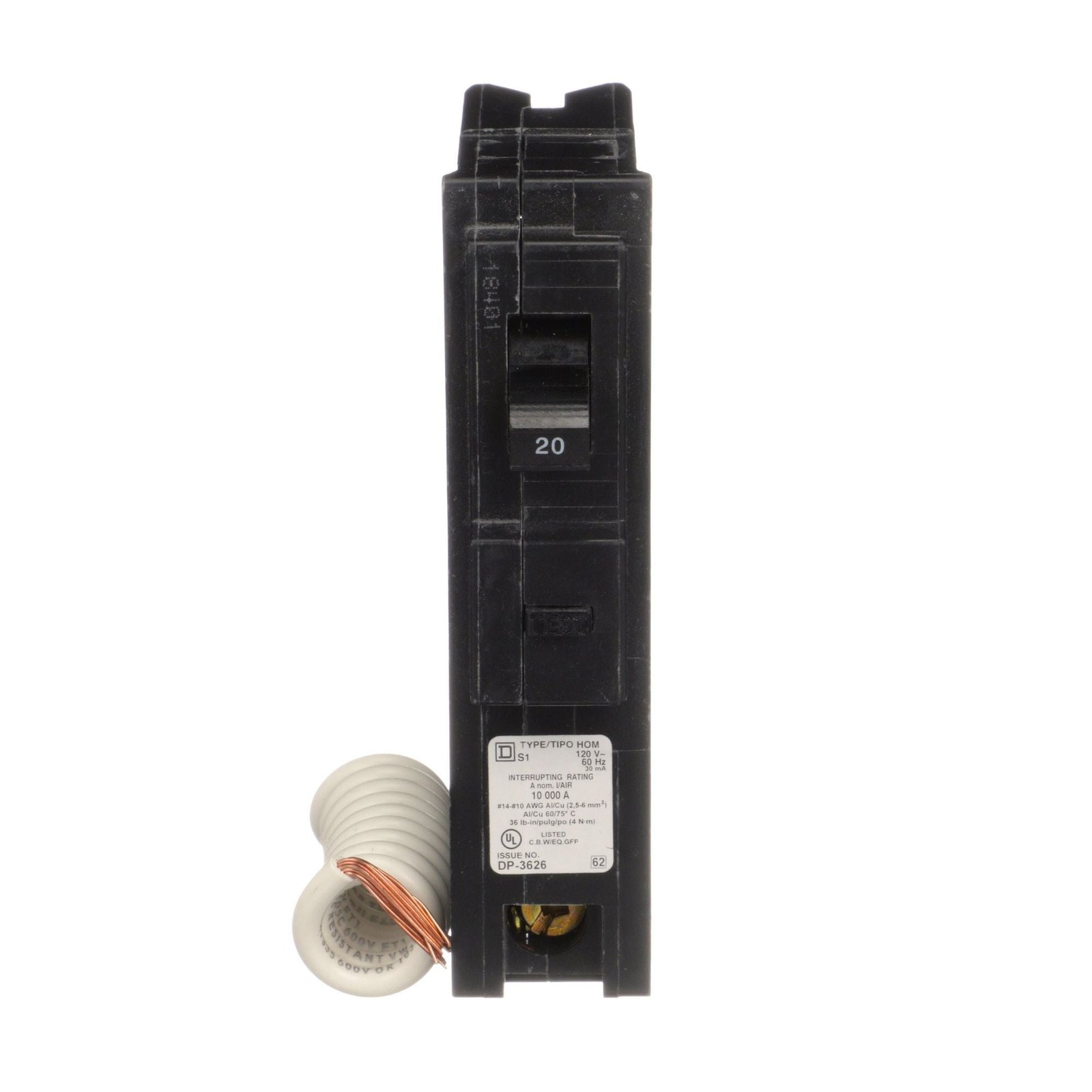

Product Image
Click image to view
Photo may not represent actual item. Refer to name and product specs for all details.
Price:

$ 116.99

Availability: Some items may be in stock.
For current availability or a custom quote, please contact us at quote@amrocor.com.

Description

Overview

Product Specifications – HOM120EPD – Square D – 20 Amp Molded Case Circuit Breaker

  • Category:

    Molded Case Circuit Breakers / 1-Pole

  • Connection:

    Plug-In

  • Type:

    HOM

  • Functions:

    LI – Long-Time and Instantaneous

  • Protection:

    Thermal Magnetic

  • AIC Ratings:

    10kA@120V

Dimensions

  • Dimensions (HxWxD):

    3.7 x 2 x 2.6

  • Weight:

    1.1 lbs

Standards

CSA Approved logo

Product Description – HOM120EPD – Square D – 20 Amp Molded Case Circuit Breaker

Homeline miniature circuit breakers are engineered and designed for fast installation and superior circuit protection. Homeline circuit breakers are designed to plug into Homeline load centers to provide circuit protection. This circuit breaker provides standard circuit protection and is HACR rated. This 1 pole circuit breaker with plug in mounting is rated 20A at 120 VAC. HOM breakers provide 10 kA breaking capacity. This Homeline circuit breaker has Class B equipment protection ground fault protection. This Homeline circuit breakers has 30mA equipment ground fault protection. The electrical connection is a clamp terminal that will accept 1 wire. The clamp terminal will accept a wire range of 14 AWG to 8 AWG copper or aluminum wire. HOM Homeline miniature circuit breakers are UL Listed.
