HOM120PCAFI – Square D Homeline – Arc Fault (AFCI) Circuit Breaker

SKU HOM120PCAFI Category
Availability: Some items may be in stock.
For current availability or a custom quote, please contact us at quote@amrocor.com.

Price:

$ 33.99

HOM120PCAFI – Square D Homeline – Arc Fault (AFCI) Circuit Breaker

SKU HOM120PCAFI Category
Thumb
Thumb
Thumb
Thumb
Product Image
Product Image
Product Image
Product Image
Click image to view
Photo may not represent actual item. Refer to name and product specs for all details.
Price:

$ 33.99

Availability: Some items may be in stock.
For current availability or a custom quote, please contact us at quote@amrocor.com.

Description

Overview

Product Specifications – HOM120PCAFI – Square D Homeline Arc Fault (AFCI) Circuit Breaker

Dimensions

  • Dimensions (HxWxD):

    3.13 x 2 x 2.98

  • Weight:

    2000 lbs

Standards

CSA Approved logo

Product Description – HOM120PCAFI – Square D Homeline Arc Fault (AFCI) Circuit Breaker

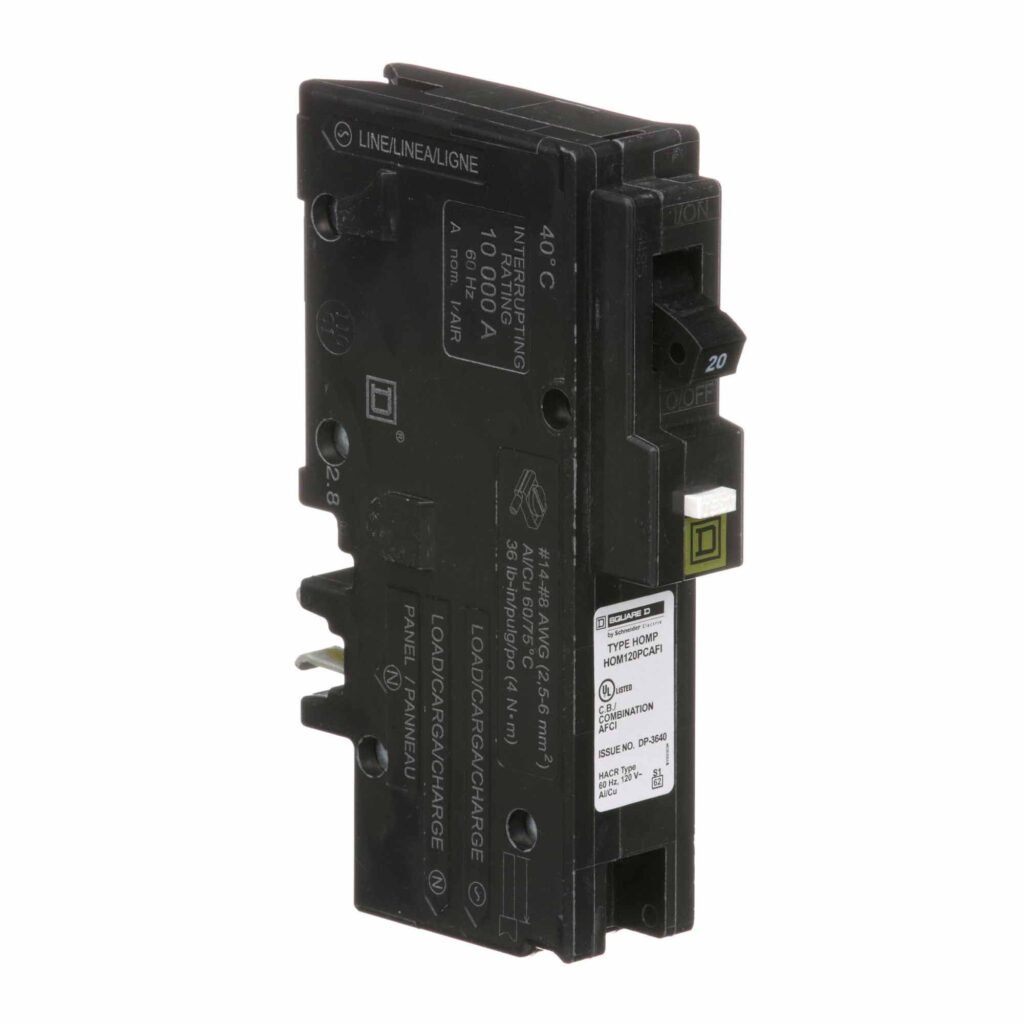

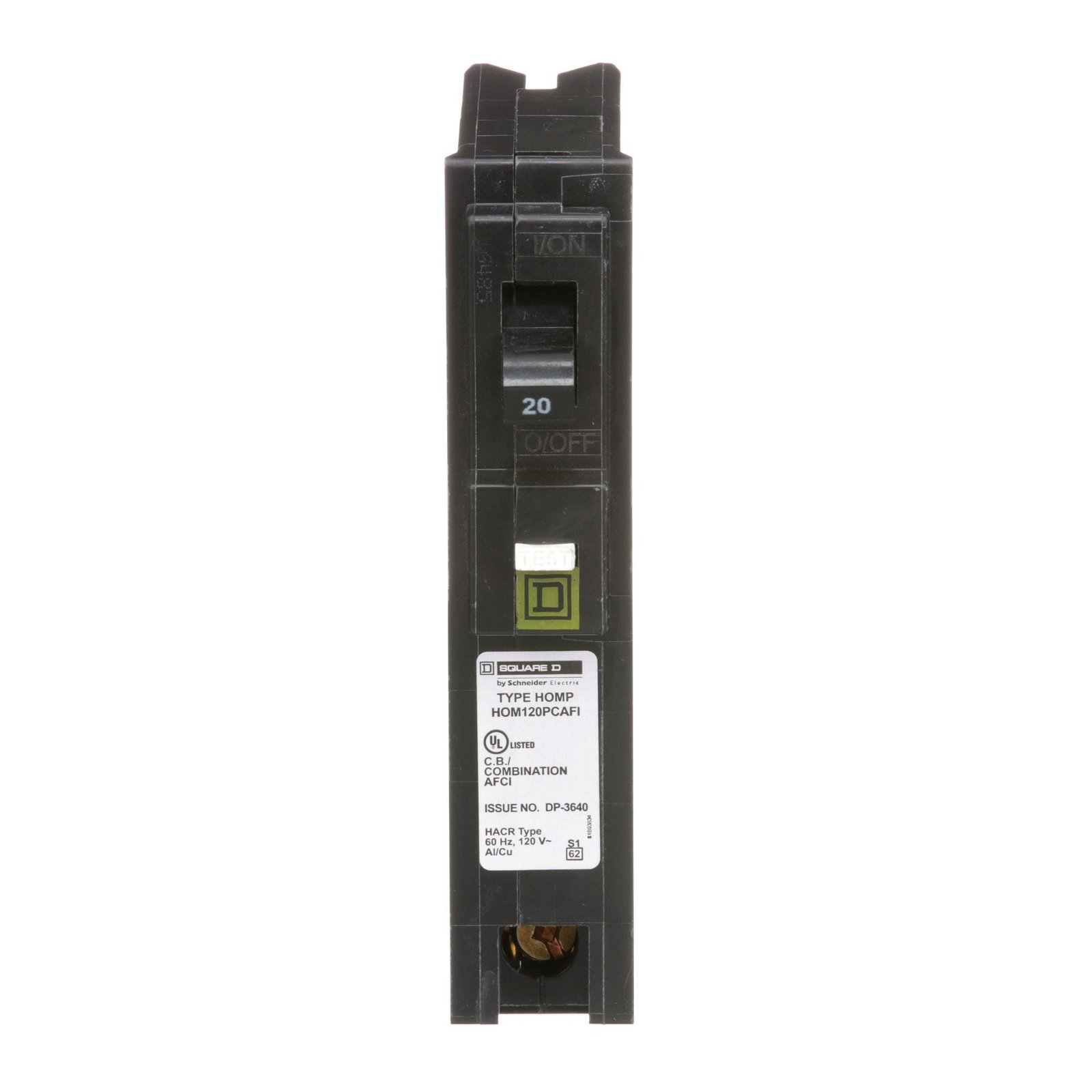

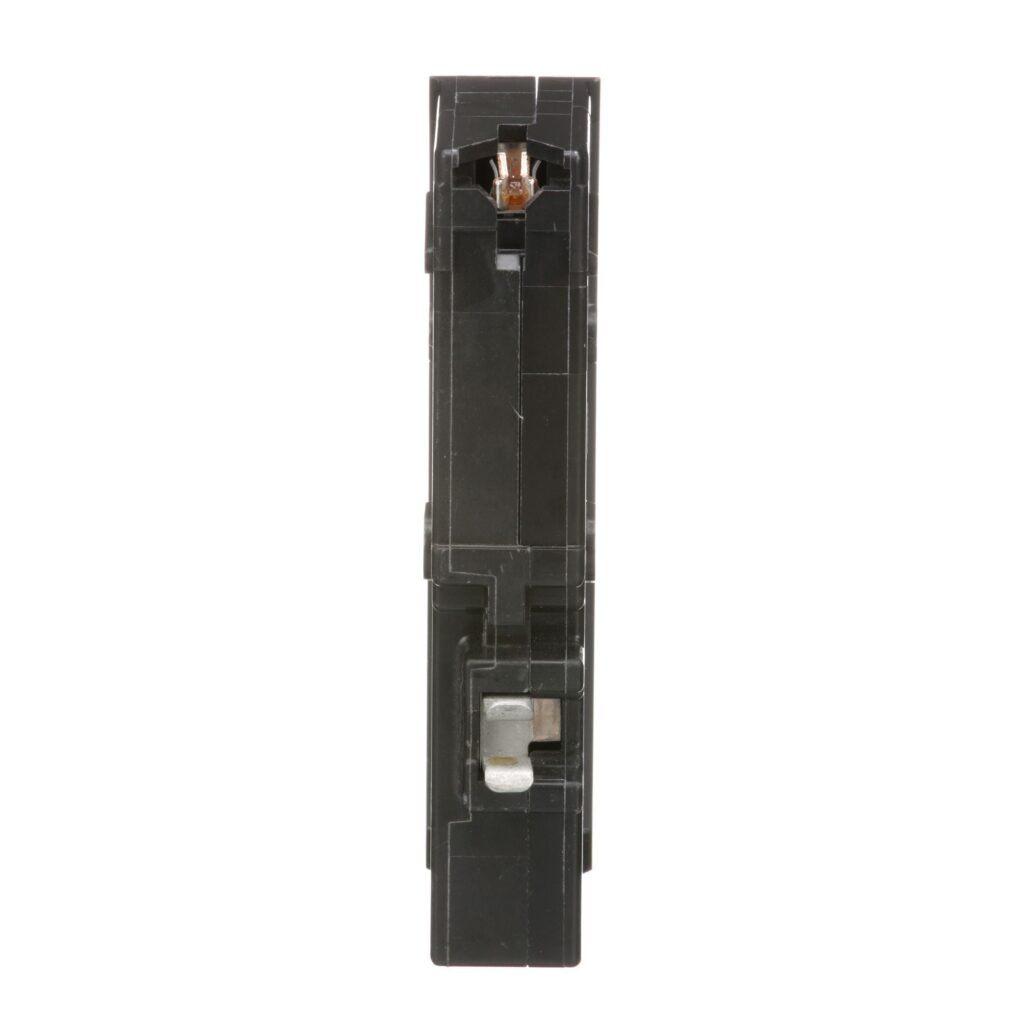

Homeline miniature circuit breakers are engineered and designed for fast installation and superior circuit protection. Homeline circuit breakers are designed to plug into Homeline load centers to provide circuit protection. This circuit breaker provides standard circuit protection and is HACR rated. This 1 pole circuit breaker with plug in mounting is rated 20A at 120/240 VAC. HOM breakers provide 10 kA breaking capacity. Homeline combination arc fault circuit interrupters provide overload and short circuit protection, plus arc fault protection in accordance with the NEC and UL1699. This breaker has a plug on neutral. The electrical connection is a clamp terminal that will accept 2 wires. The clamp terminal will accept a wire range of 14 AWG to 8 AWG copper or aluminum wire. This circuit breaker has a height of 3.13 inches, a width of 1.0 inch and depth of 2.98 inches. HOM Homeline miniature circuit breakers are UL Listed.
