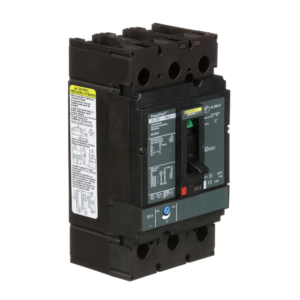

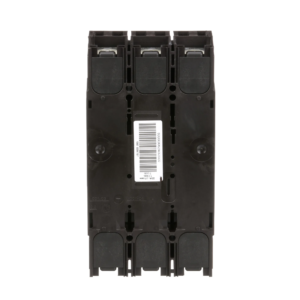

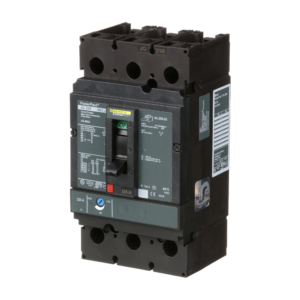

JGL36225 – Square D – Molded Case Circuit Breaker

SKU jgl36225 Category
Availability: Some items may be in stock.
For current availability or a custom quote, please contact us at quote@amrocor.com.

Price:

Original price was: $ 1,891.00.Current price is: $ 852.99.

JGL36225 – Square D – Molded Case Circuit Breaker

SKU jgl36225 Category
Thumb
Thumb
Thumb
Thumb
Thumb
Product Image
Product Image
Product Image
Product Image
Product Image
Click image to view
Photo may not represent actual item. Refer to name and product specs for all details.
Price:

Original price was: $ 1,891.00.Current price is: $ 852.99.

Availability: Some items may be in stock.
For current availability or a custom quote, please contact us at quote@amrocor.com.

Description

Overview

Product Specifications – JGL36225 – Square D Powerpact Circuit Breaker

  • Category:

    Molded Case / 3-Pole

  • Connection:

    Feed-Thru

  • Type:

    JGL

  • Functions:

    LI – Long-Time and Instantaneous

  • Protection:

    Thermal Magnetic

  • AIC Ratings:

    35kA@480V

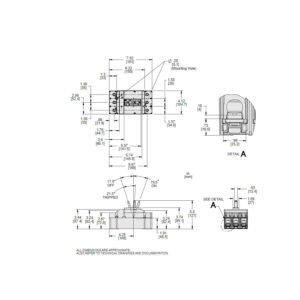

Dimensions

  • Dimensions (HxWxD):

    7.52″ x 4.12″ x 5″

  • Weight:

    5.29 lbs

Standards

CSA Approved logo

Additional Details

  • Protection Type:

    Overload protection / Short-circuit protection

  • Frame Type:

    J-Frame

  • Trip Unit Technology:

    Thermal-magnetic

  • Line Rated Current:

    225 Amp

  • Mounting Mode:

    Unit Mount (Lug)

  • Breaking Capacity Code:

    G

  • Electrical Connection:

    Lug line / Lugs load

  • Magnetic Hold Current:

    1125 Amp

  • Continuous Current Rating:

    80%

  • Control Type:

    Toggle

  • AWG Gauge:

    AWG 4…AWG 4/0 aluminium/copper terminal

Product Description – JGL36225 – Square D Powerpact Circuit Breaker

Schneider Electric / Square D, Powerpact, type JGL, 3P, 3PH, 225A, 600V, 35kA@480V, high interrupting capacity, feed-thru, UL listed, suitable for reverse fed applications, complete with non-interchangeable trip, LI – Long-Time and Instantaneous trip functions and line & load side lug terminals, thermal magnetic, molded case circuit breakers.

Documentation

PDF Icon Catalogue

PDF Icon Technical Specifications
