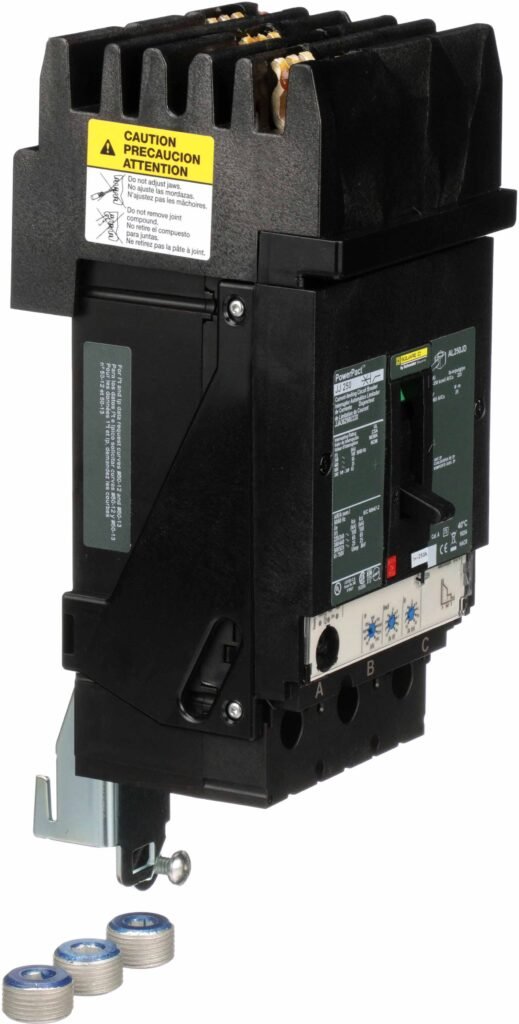

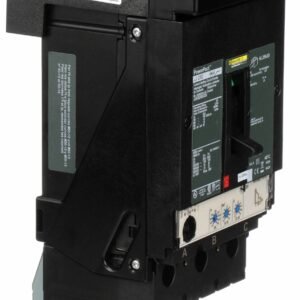

JJA36250U33X – Square D – Molded Case Circuit Breakers

SKU JJA36250U33X Category
Availability: Some items may be in stock.
For current availability or a custom quote, please contact us at quote@amrocor.com.

Price:

Original price was: $ 6,249.00.Current price is: $ 1,600.99.

JJA36250U33X – Square D – Molded Case Circuit Breakers

SKU JJA36250U33X Category
Thumb
Thumb
Thumb
Thumb
Product Image
Product Image
Product Image
Product Image
Click image to view
Photo may not represent actual item. Refer to name and product specs for all details.
Price:

Original price was: $ 6,249.00.Current price is: $ 1,600.99.

Availability: Some items may be in stock.
For current availability or a custom quote, please contact us at quote@amrocor.com.

Description

Overview

Product Specifications – JJA36250U33X – Square D Molded Case Circuit Breakers

  • Category:

    Molded Case / 3-Pole

  • Connection:

    I-Line Style Plug-In

  • Type:

    JJA

  • Functions:

    LSI – Long-Time, Short-Time and Instantaneous

  • Protection:

    Solid State

  • AIC Ratings:

    65kA@480V

Dimensions

  • Dimensions (HxWxD):

    7.52″ x 4.09″ x 3.39″

  • Weight:

    5.29 lbs

Standards

CSA Approved logo

Additional Details

  • Protection Type:

    Short-Circuit / Overload

  • Trip Unit Technology:

    Electronic, standard, MicroLogic 3.2 S, LSI

  • Line Rated Current:

    250 Amp

  • Mounting Mode:

    I-Line bracket

  • Breaking Capacity Code

    J

  • Electrical Connection:

    I-Line connection line / Lugs load

  • Continuous Current Rating

    80%

  • Control Type:

    Toggle

  • AWG Gauge:

    AWG 3/0…350 kcmil aluminium/copper terminals

Product Description – JJA36250U33X – Square D Molded Case Circuit Breakers

Square D, Powerpact, 3P, 3PH, 250A, 600V, 65kA@480V, current limiting, i-line style plug-in, suitable for reverse connection, can be used for 2P applications, complete with micrologic standard 3.2S non-interchangeable trip, LSI – Long-Time, Short-Time and Instantaneous trip functions, solid state electronic, Molded Case Circuit Breaker

Documentation

PDF Icon Catalogue

PDF Icon Installation Instructions

PDF Icon Technical Specifications
