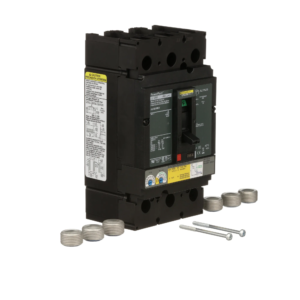

JJL36250M75 – Square D – Molded Case Circuit Breaker

SKU JJL36250M75 Category
Availability: Some items may be in stock.
For current availability or a custom quote, please contact us at quote@amrocor.com.

Price:

Original price was: $ 2,393.00.Current price is: $ 1,097.99.

JJL36250M75 – Square D – Molded Case Circuit Breaker

SKU JJL36250M75 Category
Thumb
Thumb
Thumb
Thumb
Product Image
Product Image
Product Image
Product Image
Click image to view
Photo may not represent actual item. Refer to name and product specs for all details.
Price:

Original price was: $ 2,393.00.Current price is: $ 1,097.99.

Availability: Some items may be in stock.
For current availability or a custom quote, please contact us at quote@amrocor.com.

Description

Overview

Product Specifications – JJL36250M75 – Square D Powerpact Circuit Breaker

  • Category:

    Molded Case / 3-Pole

  • Connection:

    Feed-Thru

  • Type:

    JJL

  • Functions:

    I – Instantaneous

  • Protection:

    Thermal Magnetic

  • AIC Ratings:

    65kA@480V

Dimensions

  • Dimensions (HxWxD):

    7.52″ x 4.12″ x 5″

  • Weight:

    5.29 lbs

Standards

CSA Approved logo

Additional Details

  • Protection Type:

    Overload protection / Short-circuit protection

  • Frame Type:

    J-Frame

  • Trip Unit Technology:

    Thermal-magnetic

  • Line Rated Current:

    250 Amp

  • Mounting Mode:

    Unit-Mount Lug

  • Breaking Capacity Code:

    J

  • Electrical Connection:

    Lug line / Lugs load

  • Magnetic Hold Current:

    1250 Amp

  • Continuous Current Rating:

    80%

  • Control Type:

    Toggle

  • AWG Gauge:

    AWG 3/0…350 kcmil aluminium/copper terminals

Product Description – JJL36250M75 – Square D Powerpact Circuit Breaker

Schneider Electric / Square D, Powerpact, type JJL, 3P, 3PH, 250A, 600V, 65kA@480V, UL listed, current limiting, feed-thru, suitable for reverse fed applications, complete with I – Instantaneous protection only and line & load side lug terminals, MCP, motor circuit protector, magnetic range 684-2500A, magnetic only, molded case circuit breakers.

Documentation

PDF Icon Catalogue

PDF Icon Technical Specifications

You may also like

Related products

Customers Also Bought

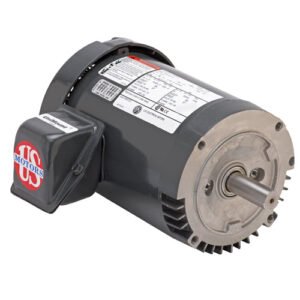

U34P3GCR U.S. Motors General Purpose Steel Edge Motor (3/4 HP, 1200 RPM, 575V, Three Phase)
