Home » Products » JLL36200 – Square D – Molded Case Circuit Breaker

Sale!

JLL36200 – Square D – Molded Case Circuit Breaker

SKU jll36200 Category 3 Pole

Availability: Some items may be in stock.
For current availability or a custom quote, please contact us at quote@amrocor.com.

Price:

Original price was: $ 2,099.99.Current price is: $ 1,486.99.

Condition

Clear

Condition

Clear

JLL36200 – Square D – Molded Case Circuit Breaker

SKU jll36200 Category 3 Pole

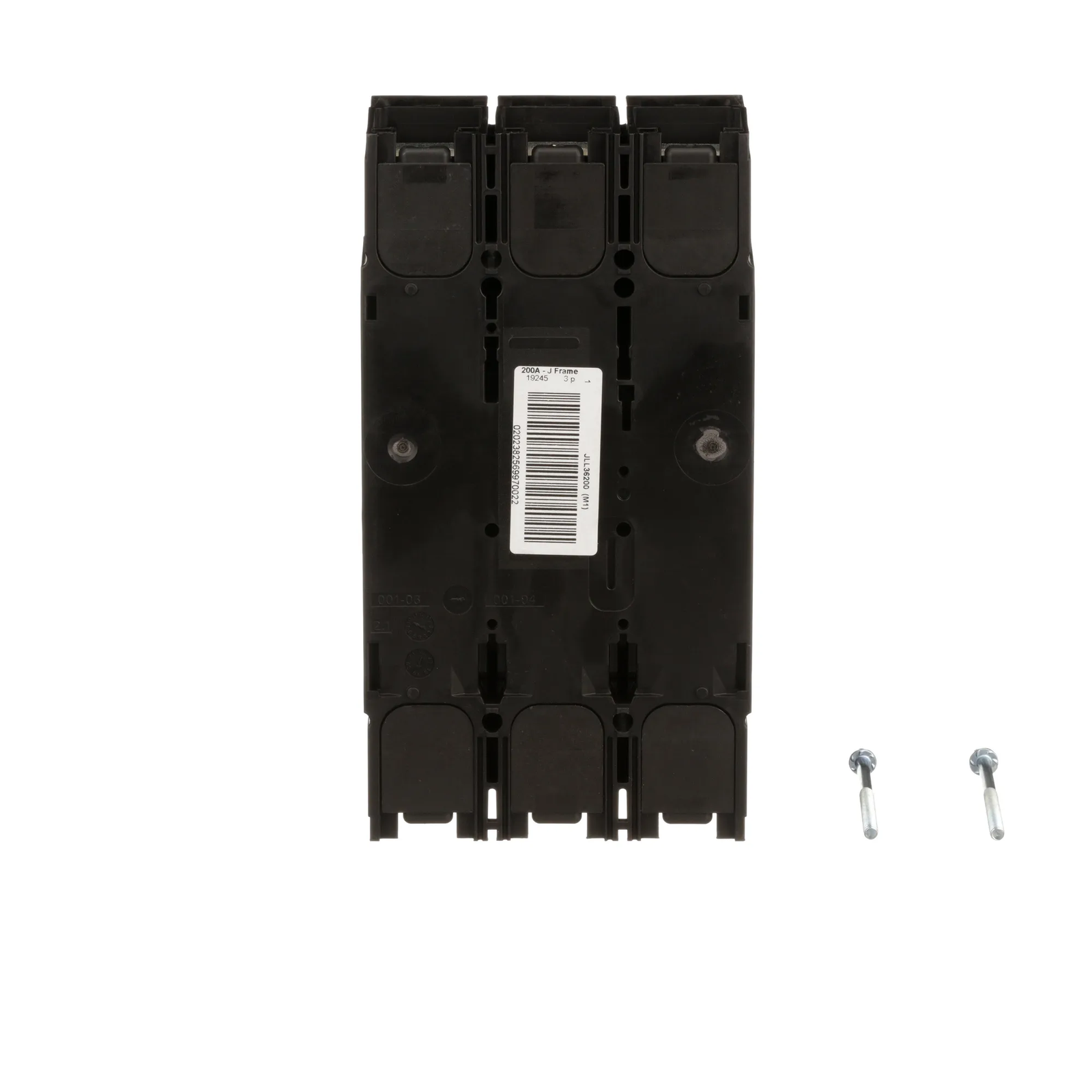

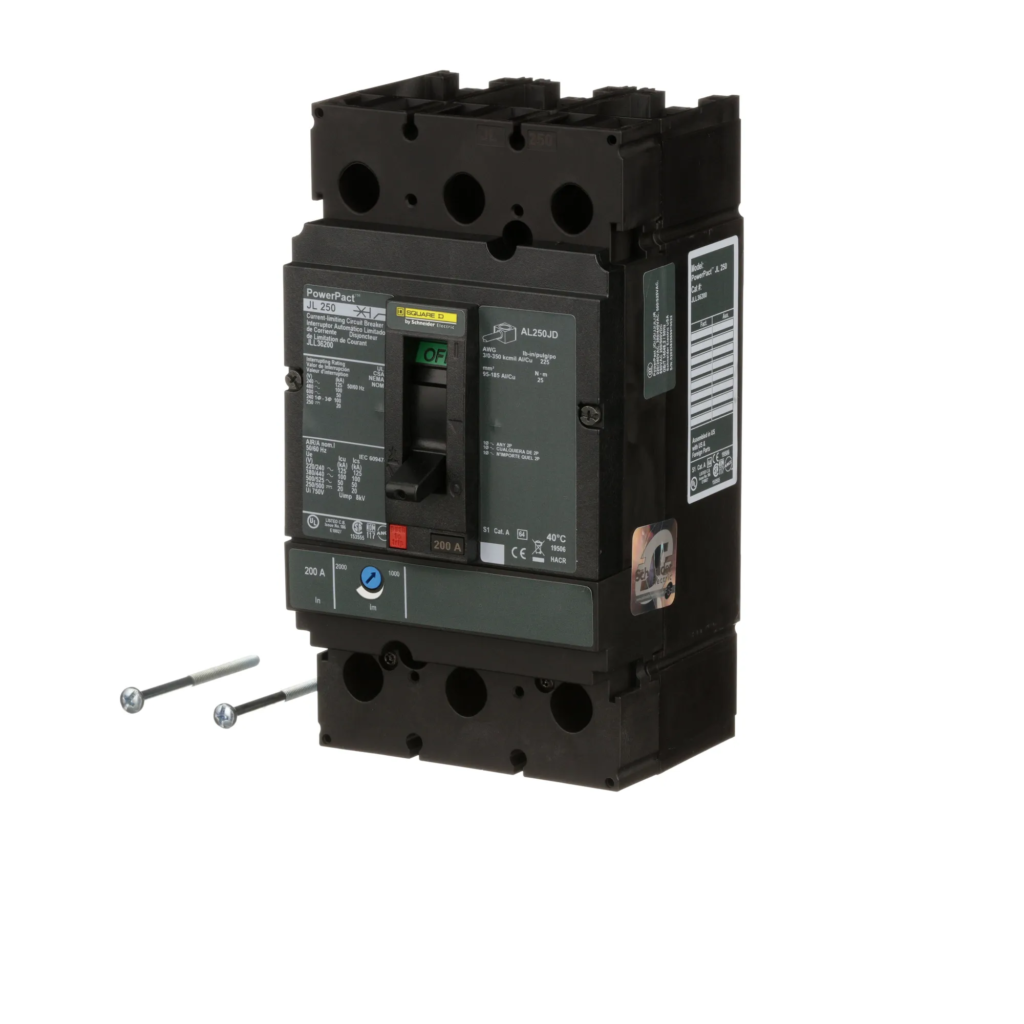

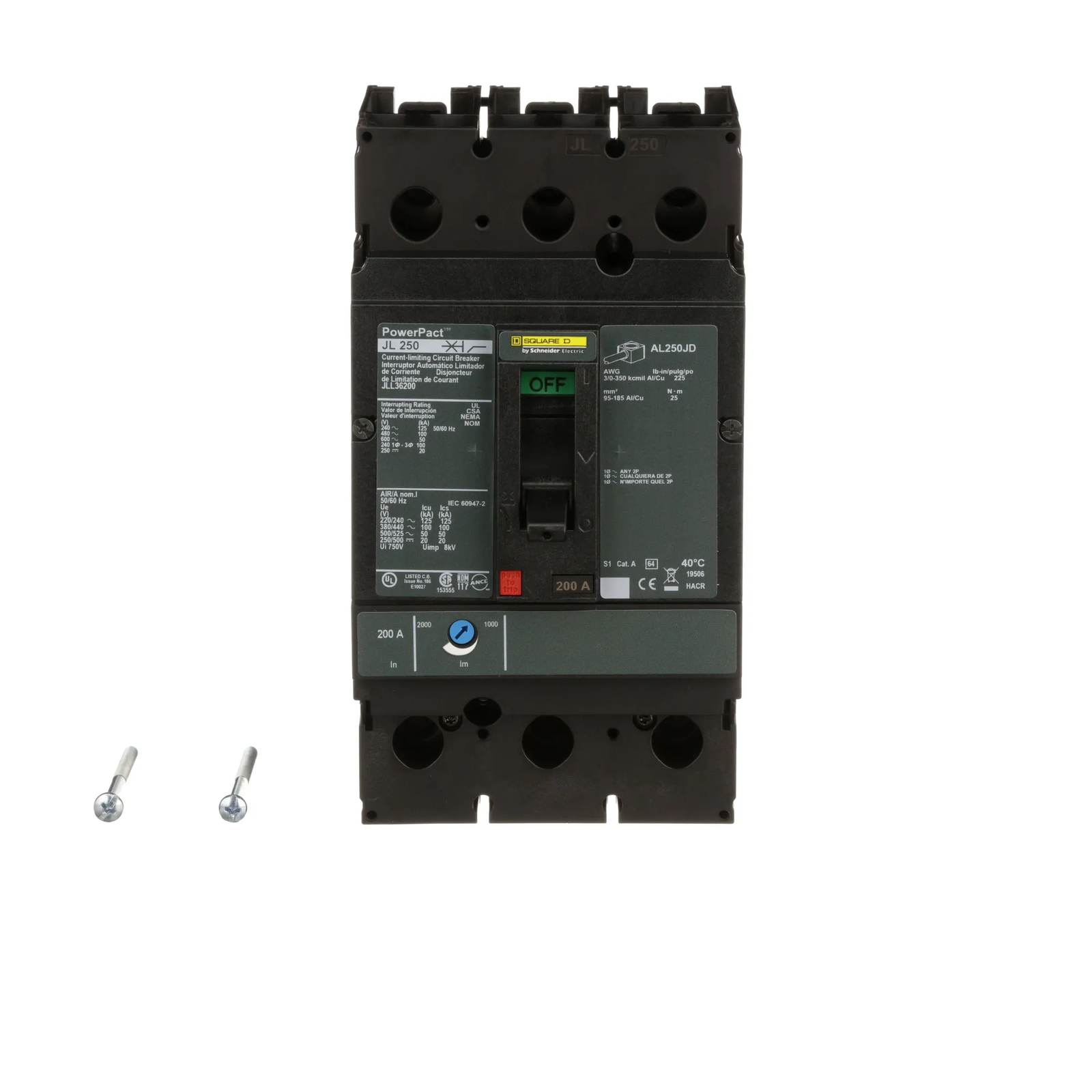

Click image to view
Photo may not represent actual item. Refer to name and product specs for all details.

Price:

Original price was: $ 2,099.99.Current price is: $ 1,486.99.

Availability: Some items may be in stock.
For current availability or a custom quote, please contact us at quote@amrocor.com.

Condition

Clear

Description

Overview

Product Specifications – JLL36200 – Square D Powerpact Circuit Breaker

Part Number:

JLL36200
Manufacturer:

Schneider Electric / Square D
Family:

Powerpact
Pole:

3
Amp

200
Volt:

600
Phase:

3

Category:

Molded Case / 3-Pole
Connection:

Feed-Thru
Type:

JLL
Functions:

LI – Long-Time and Instantaneous
Protection:

Thermal Magnetic
AIC Ratings:

100kA@480V

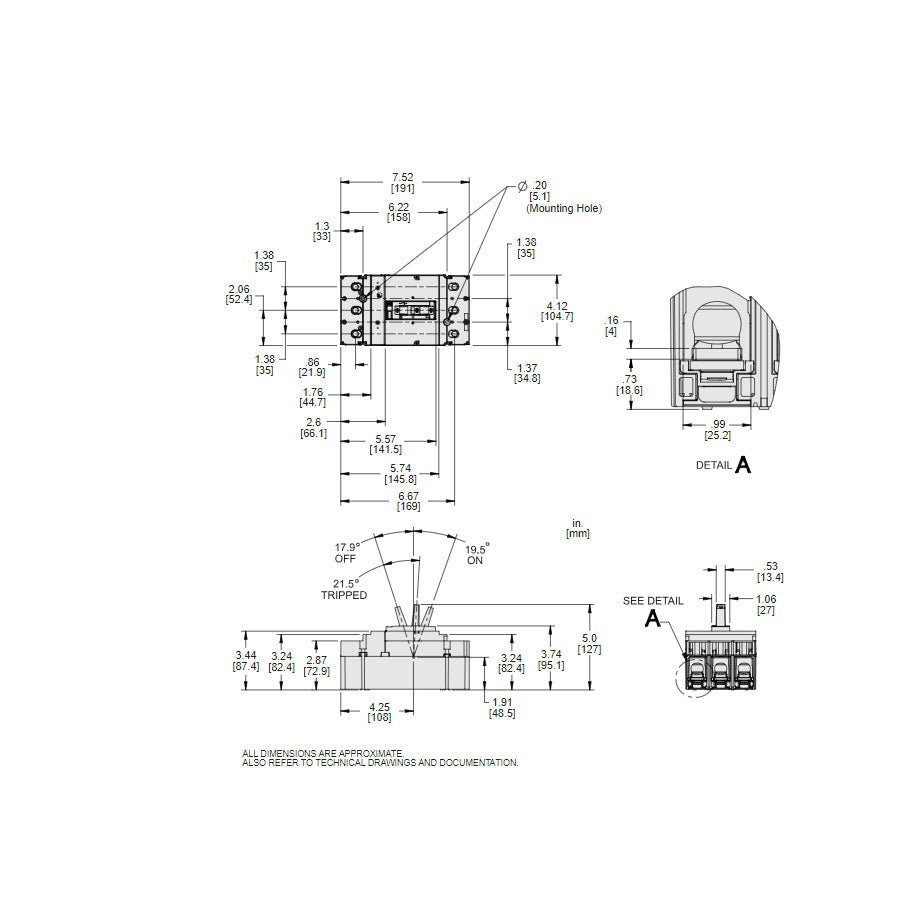

Dimensions

Dimensions (HxWxD):

7.52″ x 4.12″ x 5″
Weight:

5.29 lbs

Standards

Additional Details

Protection Type:

Overload protection / Short-circuit protection
Frame Type:

J-Frame
Trip Unit Technology:

Thermal-magnetic
Line Rated Current:

200 Amp
Mounting Mode:

Unit Mount Lug

Breaking Capacity Code:

L
Electrical Connection:

Lug line / Lugs load
Magnetic Hold Current:

1000 Amp
Continuous Current Rating:

80%
Control Type:

Toggle
AWG Gauge:

AWG 4…AWG 4/0 aluminium/copper terminal

Product Description – JLL36200 – Square D Powerpact Circuit Breaker

Schneider Electric / Square D, Powerpact, type JLL, 3P, 3PH, 200A, 600V, 100kA@480V, UL listed, current limiting, feed-thru, suitable for reverse fed applications, complete with non-interchangeable trip, LI – Long-Time and Instantaneous trip functions and line & load side lug terminals, thermal magnetic, molded case circuit breakers.

Documentation

Catalogue

Technical Specifications
