Home » Products » JLL36250 – Square D – Molded Case Circuit Breaker

Sale!

JLL36250 – Square D – Molded Case Circuit Breaker

SKU jll36250 Category 3 Pole

Availability: Some items may be in stock.
For current availability or a custom quote, please contact us at quote@amrocor.com.

Price:

Original price was: $ 2,299.99.Current price is: $ 1,379.99.

Condition

Clear

Condition

Clear

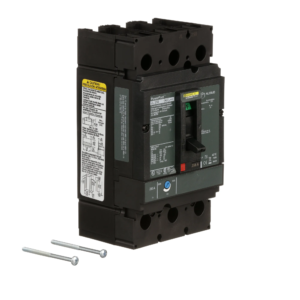

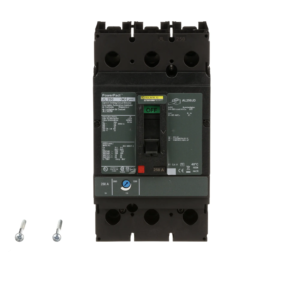

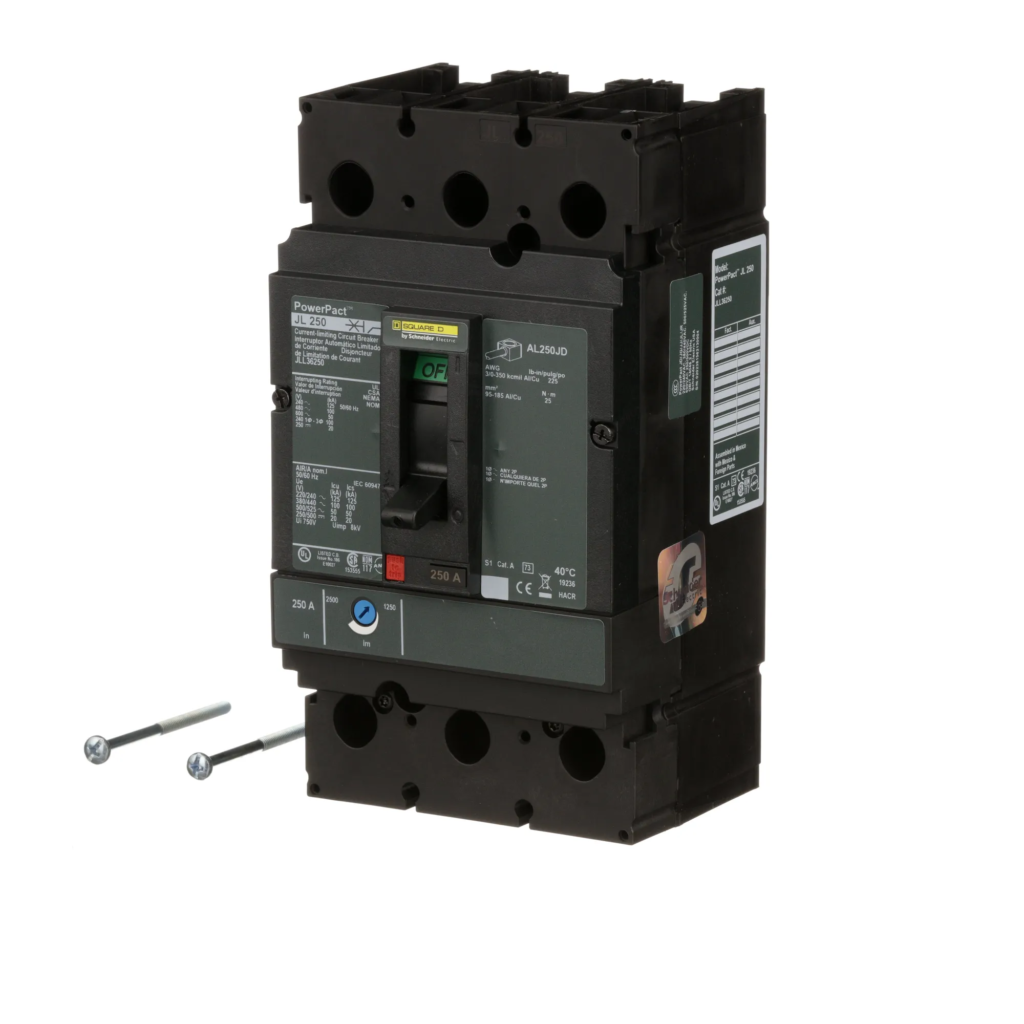

JLL36250 – Square D – Molded Case Circuit Breaker

SKU jll36250 Category 3 Pole

Click image to view
Photo may not represent actual item. Refer to name and product specs for all details.

Price:

Original price was: $ 2,299.99.Current price is: $ 1,379.99.

Availability: Some items may be in stock.
For current availability or a custom quote, please contact us at quote@amrocor.com.

Condition

Clear

Description

Overview

Product Specifications – JLL36250 – Square D Powerpact Circuit Breaker

Part Number:

JLL36250
Manufacturer:

Schneider Electric / Square D
Family:

Powerpact
Pole:

3
Amp

250
Volt:

600
Phase:

3

Category:

Molded Case / 3-Pole
Connection:

Feed-Thru
Type:

JLL
Functions:

LI – Long-Time and Instantaneous
Protection:

Thermal Magnetic
AIC Ratings:

100kA@480V

Dimensions

Dimensions (HxWxD):

7.52″ x 4.12″ x 5″
Weight:

5.29 lbs

Standards

Additional Details

Protection Type:

Overload protection / Short-circuit protection
Frame Type:

J-Frame
Trip Unit Technology:

Thermal-magnetic
Line Rated Current:

250 Amp
Mounting Mode:

Unit Mount Lug

Breaking Capacity Code:

L
Electrical Connection:

Lug line / Lugs load
Magnetic Hold Current:

1250 Amp
Continuous Current Rating:

80%
Control Type:

Toggle
AWG Gauge:

AWG 4…AWG 4/0 aluminium/copper terminal

Product Description – JLL36250 – Square D Powerpact Circuit Breaker

Schneider Electric / Square D, Powerpact, type JLL, 3P, 3PH, 250A, 600V, 100kA@480V, UL listed, current limiting, feed-thru, suitable for reverse fed applications, complete with non-interchangeable trip, LI – Long-Time and Instantaneous trip functions and line & load side lug terminals, thermal magnetic, molded case circuit breakers.

Documentation

Catalogue

Technical Specifications

Customers Also Bought

HD3P1H U.S. Motors General Purpose World Motor ...

SKU: USMOTORS-0447
In stock

$ 548.81

TJK636400WL – GE – Molded Case Circ...

SKU: MOLDED-2457
In stock

$ 1,228.99

00159ST3QIE184TC-W22 WEG Motor (1.5 HP, 900 RPM...

SKU: WEG-1374
In stock

FAZ-B8-3 – Eaton – Circuit Breaker

SKU: FAZ-B8/3
In stock

$ 89.99

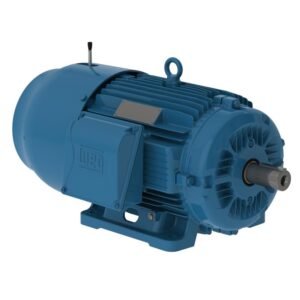

02518ET3EBM284T-W22 WEG Motor (25 HP, 1800 RPM,...
