LDL36400U31X – Square D – Molded Case Circuit Breaker

SKU LDL36400U31X Category
Availability: Some items may be in stock.
For current availability or a custom quote, please contact us at quote@amrocor.com.

Price:

$ 1,662.99

LDL36400U31X – Square D – Molded Case Circuit Breaker

SKU LDL36400U31X Category
Thumb
Product Image
Click image to view
Photo may not represent actual item. Refer to name and product specs for all details.
Price:

$ 1,662.99

Availability: Some items may be in stock.
For current availability or a custom quote, please contact us at quote@amrocor.com.

Description

Overview

Product Specifications – LDL36400U31X – Square D Molded Case Circuit Breakers

  • Category:

    Molded Case / 3-Pole

  • Connection:

    Feed-Thru

  • Type:

    LDL

  • Functions:

    LI – Long-Time and Instantaneous

  • Protection:

    Solid State

  • AIC Ratings:

    18kA@480V

Dimensions

  • Dimensions (HxWxD):

    11.3″ x 5.5″ x 6.61″

  • Weight:

    13.67 lbs

Standards

CSA Approved logo

Additional Details

  • Trip Unit Technology:

    Electronic, standard, MicroLogic 3.3, LI

  • Line Rated Current:

    400 Amp

  • Mounting Mode:

    Unit mount lug

  • Breaking Capacity Code

    D

  • Electrical Connection:

    Lugs line / Lugs load

  • Continuous Current Rating

    80%

  • Control Type:

    Toggle

  • AWG Gauge:

    2 x AWG 2/0…500 kcmil aluminium/copper

Product Description – LDL36400U31X – Square D Molded Case Circuit Breakers

Schneider Electric / Square D, Powerpact, type LDL, 3P, 3PH, 400A, 600V, 14kA@600V, 18kA@480V, 25kA@240V, UL listed, standard interrupting capacity, feed-thru, can used for 2P applications, complete with non-interchangeable micrologic standard 3.3 trip, LI – Long-Time and Instantaneous trip functions and line & load side lug terminals, solid state electronic, molded case circuit breakers

Documentation

PDF Icon Catalogue

PDF Icon Installation Instructions

PDF Icon Data Sheet

You may also like

Related products

Customers Also Bought

E50KL35 - Eaton - Limit Switch
E50KL35 – Eaton – Limit Switch
SKU: E50KL35
In stock
$ 49.99
Placeholder
TMQV22100MM – GE 100 Amp Molded Case Circ...
SKU: TMQV22100MM
In stock
$ 325.99
.2536OT1BW56C-S WEG C-Face Motor (.25 HP, 3600 RPM, 1 Phase, 60 Hz, W56C Frame, ODP, 115/208-230 V)
.2536OT1BW56C-S WEG C-Face Motor (.25 HP, 3600 ...
SKU: WEG-1172
In stock
$ 0.00
AFU0333 55 - Crouse-Hinds - Switch
AFU0333 55 – Crouse-Hinds – Switch
SKU: AFU0333 55
In stock
$ 1,999.99
FXD62B150L - Siemens - Molded Case Circuit Breaker
FXD62B150L – Siemens – Molded Case ...
SKU: FXD62B150L
In stock
$ 770.99

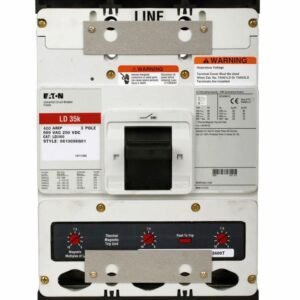

LD3400X - Eaton - Molded Case Circuit Breaker
