LDL36600U33X – Square D – Molded Case Circuit Breaker

SKU LDL36600U33X Category
Availability: Some items may be in stock.
For current availability or a custom quote, please contact us at quote@amrocor.com.

Price:

$ 2,414.99

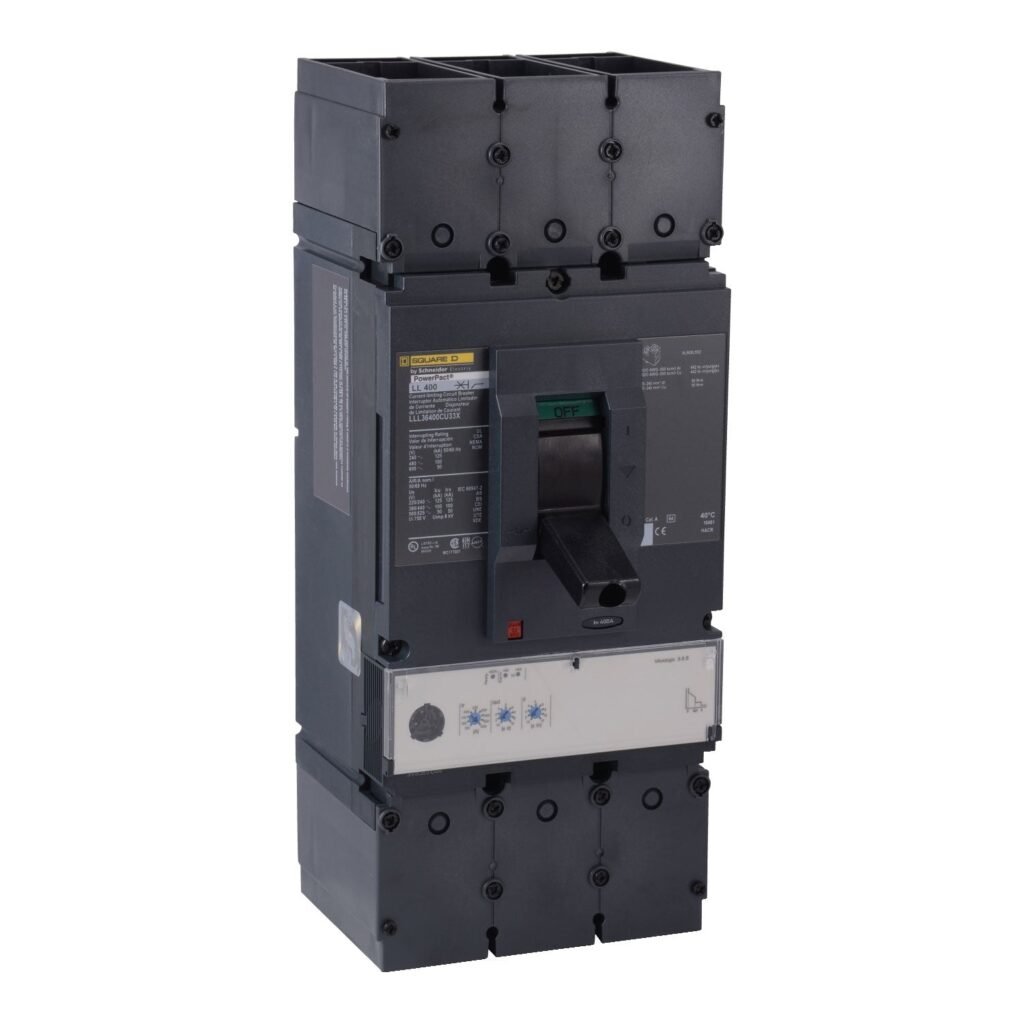

LDL36600U33X – Square D – Molded Case Circuit Breaker

SKU LDL36600U33X Category
Thumb
Product Image
Click image to view
Photo may not represent actual item. Refer to name and product specs for all details.
Price:

$ 2,414.99

Availability: Some items may be in stock.
For current availability or a custom quote, please contact us at quote@amrocor.com.

Description

Overview

Product Specifications – LDL36600U33X – Square D Molded Case Circuit Breakers

  • Category:

    Molded Case / 3-Pole

  • Connection:

    Feed-Thru

  • Type:

    LDL

  • Functions:

    LSI – Long-Time, Short-Time and Instantaneous

  • Protection:

    Solid State

  • AIC Ratings:

    18kA@480V

Dimensions

  • Dimensions (HxWxD):

    13.39″ x 5.51″ x 4.33″

  • Weight:

    13.67 lbs

Standards

CSA Approved logo

Additional Details

  • Trip Unit Technology:

    Electronic, standard, MicroLogic 3.3 S, LSI

  • Line Rated Current:

    600 Amp

  • Mounting Mode:

    Unit mount lug

  • Breaking Capacity Code

    D

  • Electrical Connection:

    Lugs line / Lugs load

  • Continuous Current Rating

    80%

  • Control Type:

    Toggle

  • AWG Gauge:

    2 x AWG 2/0…500 kcmil aluminium/copper

Product Description – LDL36600U33X – Square D Molded Case Circuit Breakers

Schneider Electric,Square D, 3P, 3PH, 600A, 600V, 18kA@480V, UL listed, standard interrupting capacity, Feed-Thru, can used for 2P applications, complete with non-interchangeable micrologic standard 3.3S trip, line & load side lug terminals, Solid State electronic, molded case circuit breakers

Documentation

PDF Icon Catalogue

PDF Icon Installation Instructions

PDF Icon Data Sheet
