LJA36400U33X – Square D – Molded Case Circuit Breaker

SKU LJA36400U33X Category
Availability: Some items may be in stock.
For current availability or a custom quote, please contact us at quote@amrocor.com.

Price:

Original price was: $ 9,366.00.Current price is: $ 2,999.99.

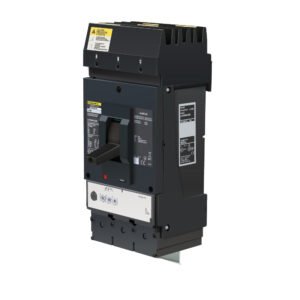

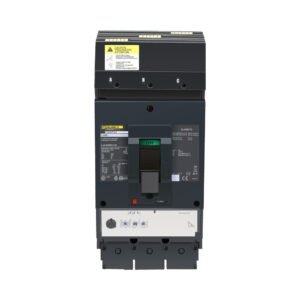

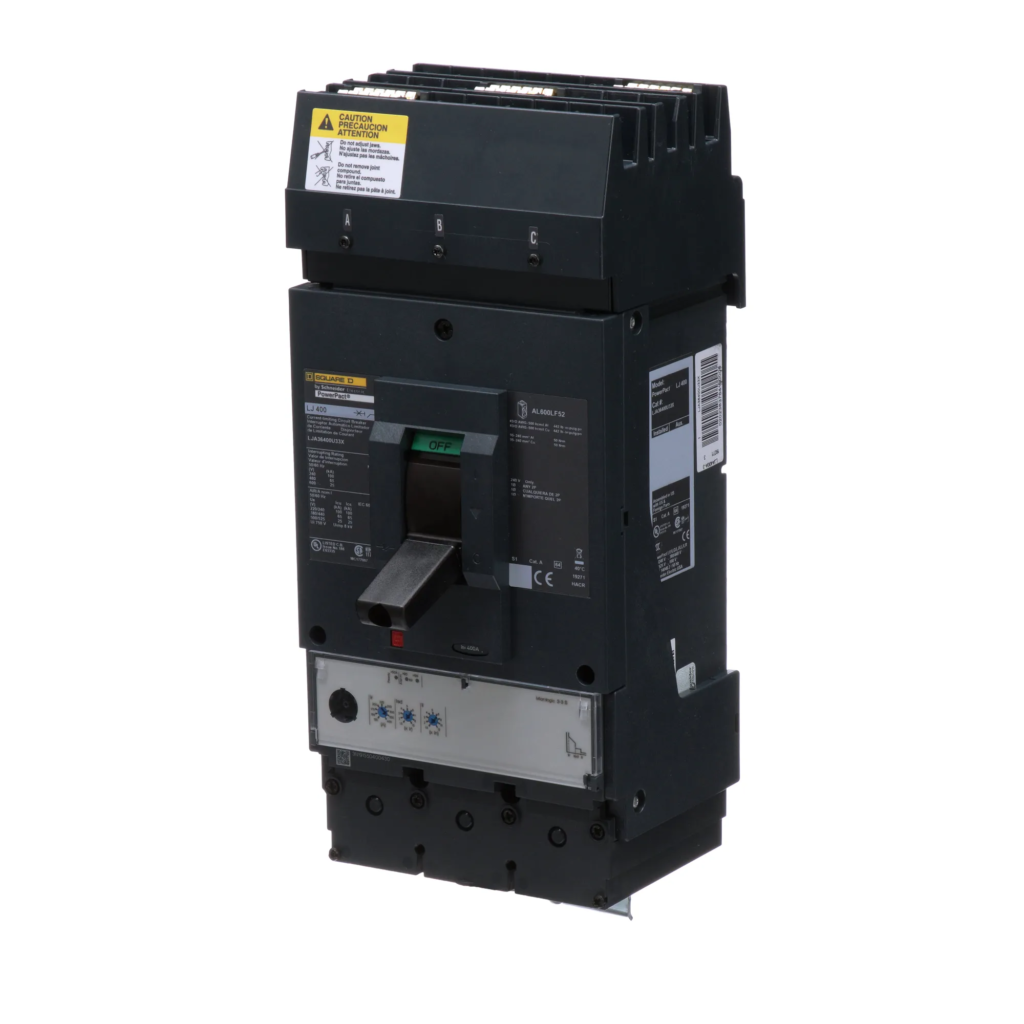

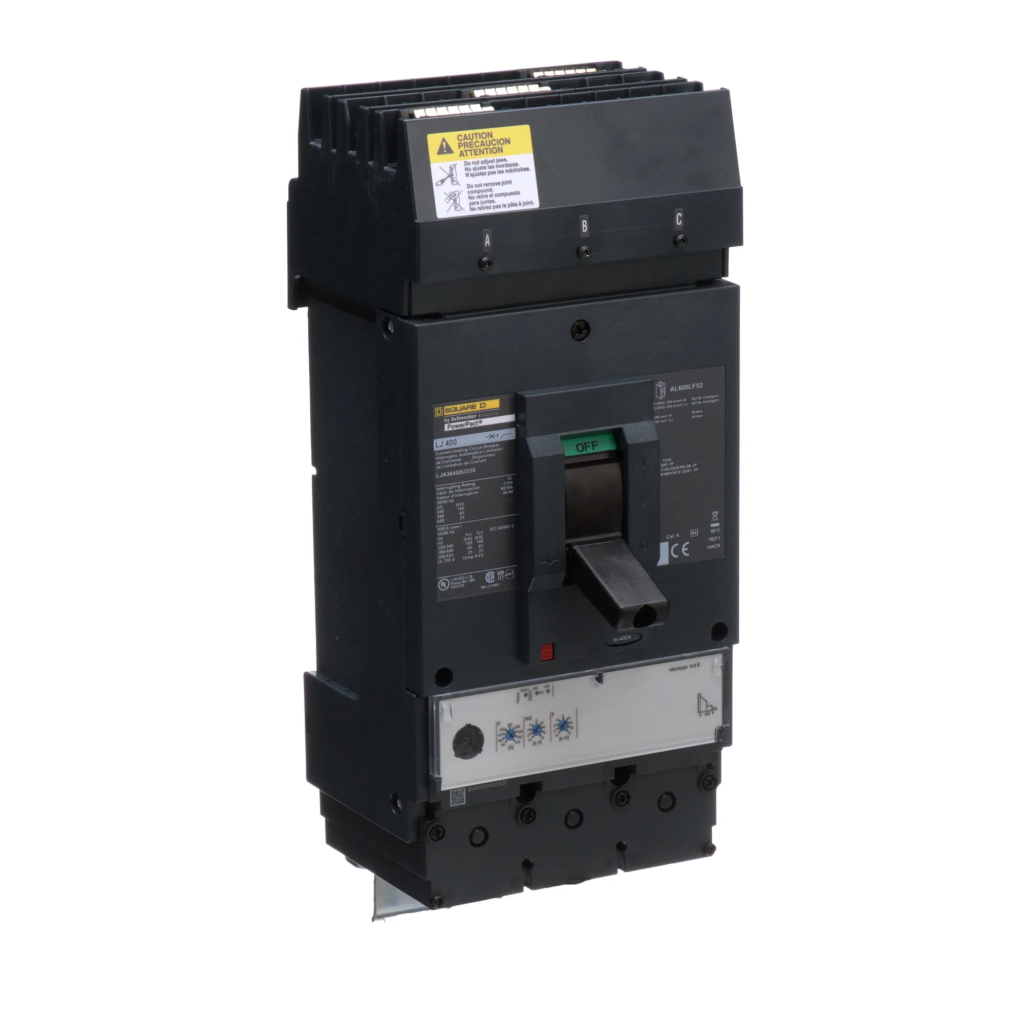

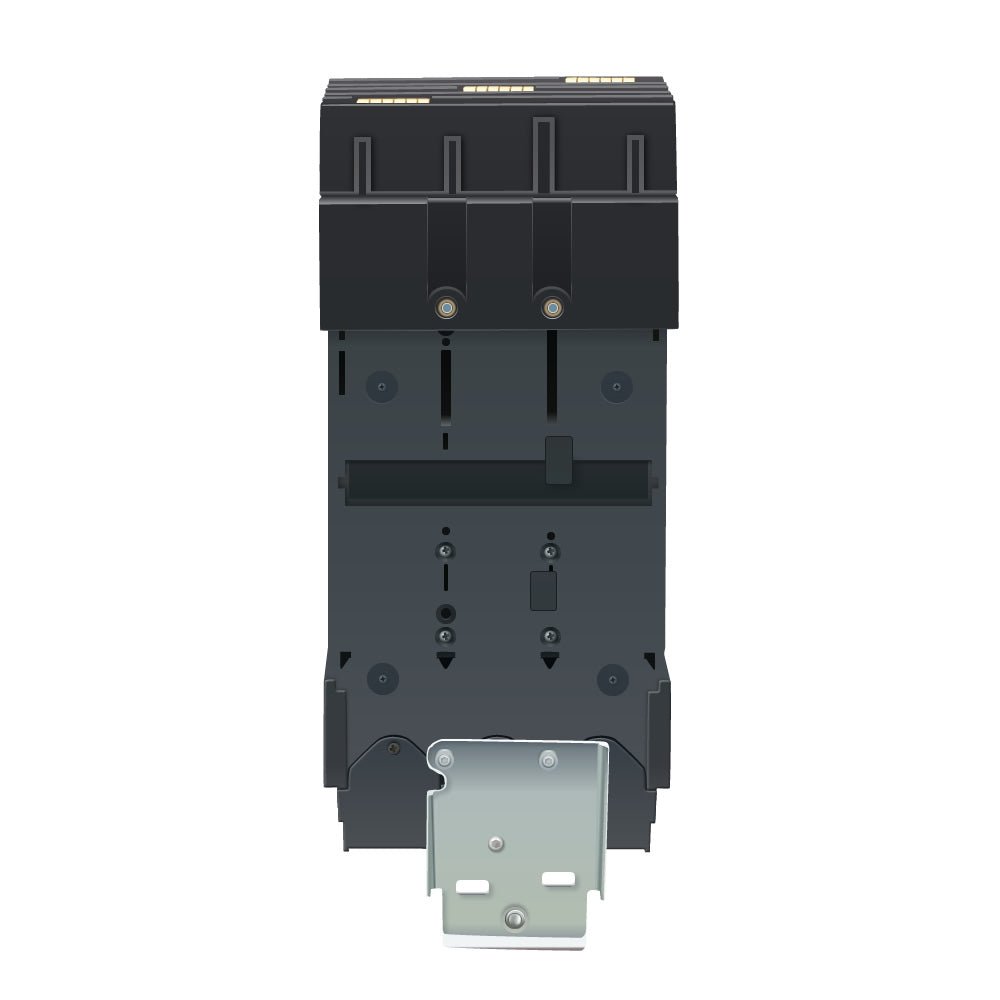

LJA36400U33X – Square D – Molded Case Circuit Breaker

SKU LJA36400U33X Category
Thumb
Thumb
Thumb
Thumb
Thumb
Thumb
Thumb
Thumb
Thumb
Product Image
Product Image
Product Image
Product Image
Product Image
Product Image
Product Image
Product Image
Product Image
Click image to view
Photo may not represent actual item. Refer to name and product specs for all details.
Price:

Original price was: $ 9,366.00.Current price is: $ 2,999.99.

Availability: Some items may be in stock.
For current availability or a custom quote, please contact us at quote@amrocor.com.

Description

Overview

Product Specifications – LJA36400U33X – Square D Powerpact Circuit Breaker

  • Category:

    Molded Case / 3-Pole

  • Connection:

    I-Line Style Plug-In

  • Type:

    LJA

  • Functions:

    LSI – Long-Time, Short-Time and Instantaneous

  • Protection:

    Solid State

  • Frame Type:

    L Frame

  • AIC Ratings:

    65kA@480V

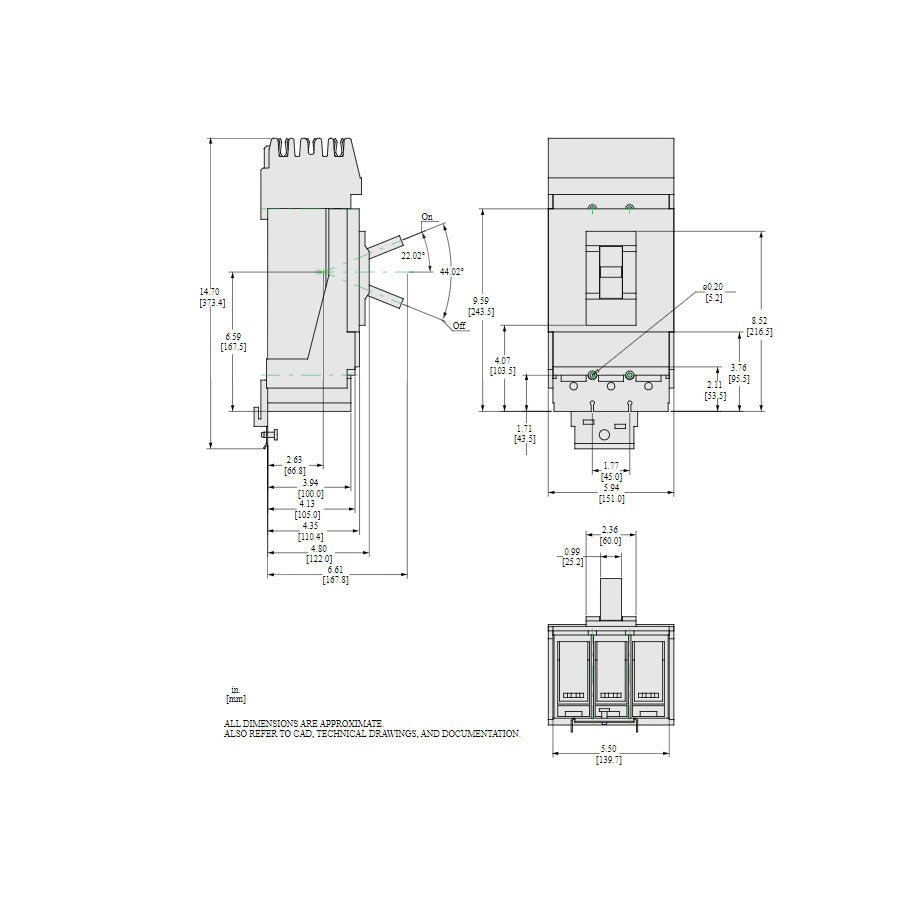

Dimensions

  • Dimensions (HxWxD):

    14.7″ x 5.94″ x 6.61″

Standards

CSA Approved logo

Additional Details

  • Trip Unit Technology:

    Electronic, standard, MicroLogic 3.3, LI

  • Line Rated Current:

    400 Amp

  • Mounting Mode:

    i-Line Bracket

  • Breaking Capacity Code:

    J

  • Electrical Connection:

    I-Line connection line / Lugs load

Product Description – LJA36400U33X – Square D Powerpact Circuit Breaker

Schneider Electric / Square D, Powerpact, type LJA, 3P, 3PH, 400A, 600V, 65kA@480V, UL listed, standard interrupting capacity, i-line style plug-in, can used for 2P applications, complete with non-interchangeable micrologic standard 3.3 trip, LSI – Long-Time, Short-Time and Instantaneous trip functions, solid state electronic, molded case circuit breakers.

Documentation

PDF Icon Catalogue

PDF Icon Data Sheet
