Sale!

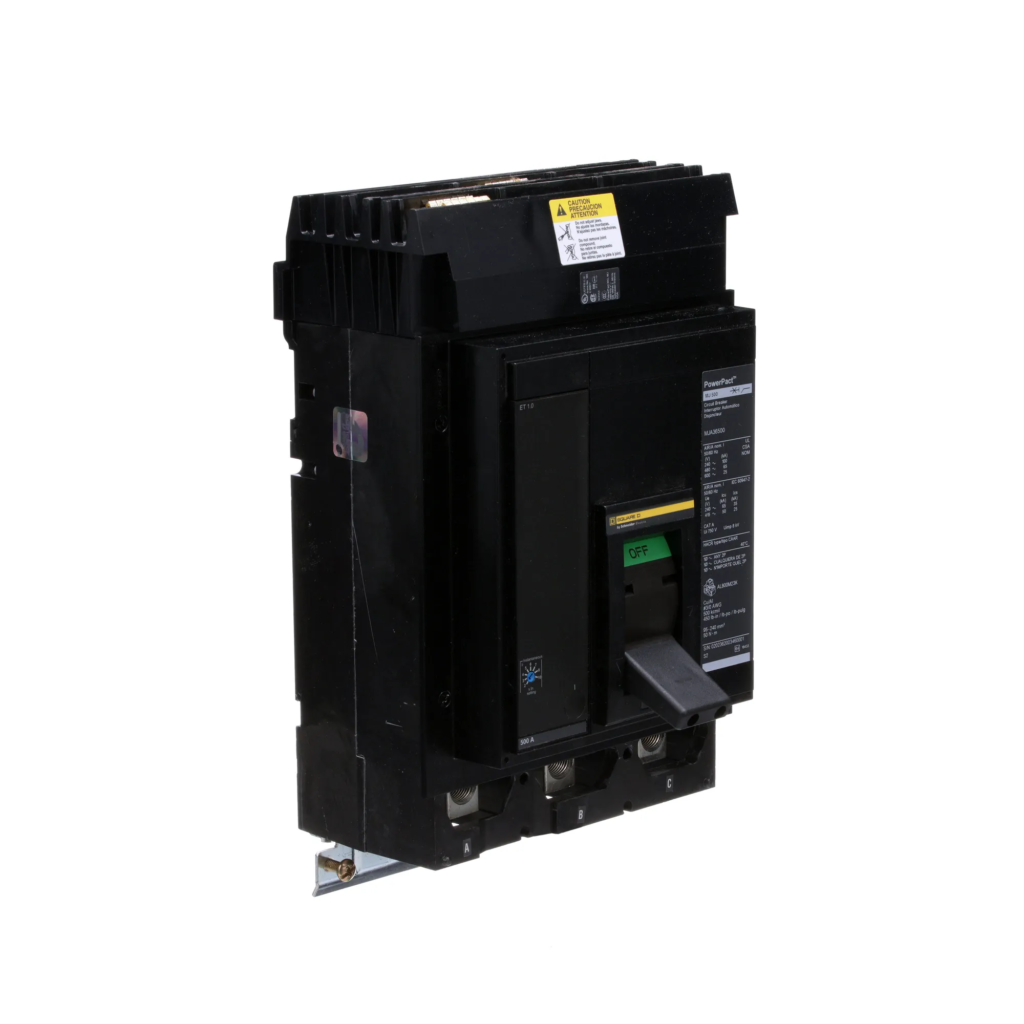

MJA36500 – Square D – Molded Case Circuit Breaker

SKU MJA36500 Category
Availability: Some items may be in stock.
For current availability or a custom quote, please contact us at quote@amrocor.com.

Price:

Original price was: $ 9,929.00.Current price is: $ 3,689.99.

MJA36500 – Square D – Molded Case Circuit Breaker

SKU MJA36500 Category
Thumb
Thumb
Thumb
Thumb
Thumb
Product Image
Product Image
Product Image
Product Image
Product Image
Click image to view
Photo may not represent actual item. Refer to name and product specs for all details.
Price:

Original price was: $ 9,929.00.Current price is: $ 3,689.99.

Availability: Some items may be in stock.
For current availability or a custom quote, please contact us at quote@amrocor.com.

Description

Overview

Product Specifications – MJA36500 – Square D Powerpact Circuit Breaker

  • Category:

    Molded Case / 3-Pole

  • Connection:

    I-Line Style Plug-In

  • Type:

    MJA

  • Functions:

    LI – Long-Time and Instantaneous

  • Protection:

    Solid State

  • AIC Ratings:

    65kA@480V

Dimensions

  • Dimensions (HxWxD):

    12.86″ x 0.32″ x 8.27″

  • Weight:

    29 lbs

Standards

CSA Approved logo

Additional Details

  • FrameType:

    M Frame

  • Trip Unit Technology:

    Electronic, basic, ET 1.0

  • Line Rated Current:

    500

  • Mounting Mode:

    I-Line bracket

  • Breaking Capacity Code

    J

  • Electrical Connection:

    I-Line connection line / Lugs load

  • Continuous Current Rating:

    80%

  • Control Type:

    Toggle

  • AWG Gauge:

    AWG 3/0…350 kcmil Aluminum/Copper Terminals

Product Description – MJA36500 – Square D Powerpact Circuit Breaker

Schneider Electric / Square D, Powerpact, type MJA, 3P, ABC phase circuit configuration, 3PH, 500A, 600V, 65kA@480V, UL listed, current limiting, i-line style plug-in, complete with basic non-interchangeable 1.0 trip, LI – Long-Time and Instantaneous trip functions and load side lug terminals, solid state electronic, molded case circuit breakers.

Documentation

PDF Icon Catalogue

PDF Icon Data Sheet
