QDA32225 – Square D – Molded Case Circuit Breaker

SKU QDA32225 Category
Availability: Some items may be in stock.
For current availability or a custom quote, please contact us at quote@amrocor.com.

Price:

$ 577.99

QDA32225 – Square D – Molded Case Circuit Breaker

SKU QDA32225 Category
Thumb
Product Image
Click image to view
Photo may not represent actual item. Refer to name and product specs for all details.
Price:

$ 577.99

Availability: Some items may be in stock.
For current availability or a custom quote, please contact us at quote@amrocor.com.

Description

Overview

Product Specifications – QDA32225 – Square D I-Line Circuit Breaker

  • Category:

    Molded Case / 3-Pole

  • Connection:

    I-Line Style Plug-In

  • Type:

    QDA

  • Functions:

    LI – Long-Time and Instantaneous

  • Protection:

    Thermal Magnetic

  • AIC Ratings:

    25kA@240V

Dimensions

  • Dimensions (HxWxD):

    6.47″ x 4.5″ x 3.93″

  • Weight:

    4.9 lbs

Standards

CSA Approved logo

Additional Details

  • Frame Type:

    Q-Frame

  • Trip Unit Technology:

    Thermal-magnetic

  • Line Rated Current:

    225 Amp

  • Mounting Mode:

    I-Line bracket

  • Breaking Capacity Code:

    D

  • Electrical Connection:

    I-Line connection line/Lugs load

  • Magnetic Hold Current:

    1200 Amp

  • Continuous Current Rating:

    80%

  • Control Type:

    Operating handle

Product Description – QDA32225 – Square D I-Line Circuit Breaker

Square D, I-Line, type QDA, 3P, ABC phase connection, 3PH, 225A, 240V, 25kA@240V, UL listed, standard interrupting capacity, i-line style plug-in, complete with non-interchangeable trip, LI – Long-Time and Instantaneous trip functions and load side lug terminals, thermal magnetic, molded case circuit breakers.

Documentation

PDF Icon Catalogue

PDF Icon Technical Specifications

PDF Icon Installation Instructions

You may also like

Related products

Customers Also Bought

4 AWG Swan ACSR Aluminum Conductor Steel Reinforced
4 AWG Swan ACSR Aluminum Conductor Steel Reinfo...
SKU: 4GCW1260
In stock
$ 1.80
EFM3313T Baldor General Purpose Industrial Motor, F-2 Mount (10 HP, 1800 RPM, Three Phase, 230/460 Volt, 215T Frame, ODP)
EFM3313T Baldor General Purpose Industrial Moto...
SKU: BALDOR-1361
In stock
Original price was: $ 3,441.25.Current price is: $ 2,318.55.
LA11021 - Square D - Molded Case Circuit Breaker
LA11021 – Square D – Molded Case Ci...
SKU: MOLDED-1222
In stock
$ 499.99
00156OT1BRBO56-S WEG Motor (1.5 HP, 3600 RPM, 1 Phase, 60 Hz, 56 Frame, ODP, 115/208-230 V)
00156OT1BRBO56-S WEG Motor (1.5 HP, 3600 RPM, 1...
SKU: WEG-1182
In stock
Original price was: $ 585.00.Current price is: $ 455.57.
CHC3525A Baldor Single Phase Direct Drive Fan (HVAC) Motor, TEAO, 56Z Frame, Resilient Base (1/2 HP, 1200 RPM)
CHC3525A Baldor Single Phase Direct Drive Fan ...
SKU: BALDOR-0181
In stock
Original price was: $ 1,282.50.Current price is: $ 907.38.
EHM3211T-8 Super-E Baldor Three Phase HVAC Motor , 182T Frame, ODP (3 HP, 1800 RPM)
EHM3211T-8 Super-E Baldor Three Phase HVAC Mot...
SKU: BALDOR-2356
In stock
Original price was: $ 1,423.75.Current price is: $ 959.25.
336.4 Merlin ACSR Aluminum Conductor Steel Reinforced
336.4 Merlin ACSR Aluminum Conductor Steel Rein...
SKU: 3GCW1271
In stock
$ 6.54
MHL368001212 - Square D - Molded Case Circuit Breaker
MHL368001212 – Square D – Molded Ca...
SKU: MHL368001212
In stock
Price range: $ 5,799.99 through $ 5,999.99

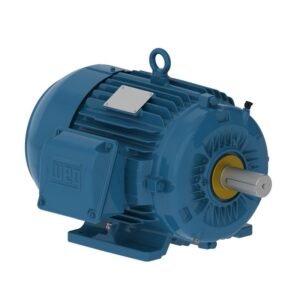

07518ST3HIE365T-W22 WEG Motor (75 HP, 364/5T FRAME, 575 V, THREE PHASE, TEFC , 1775 RPM)
