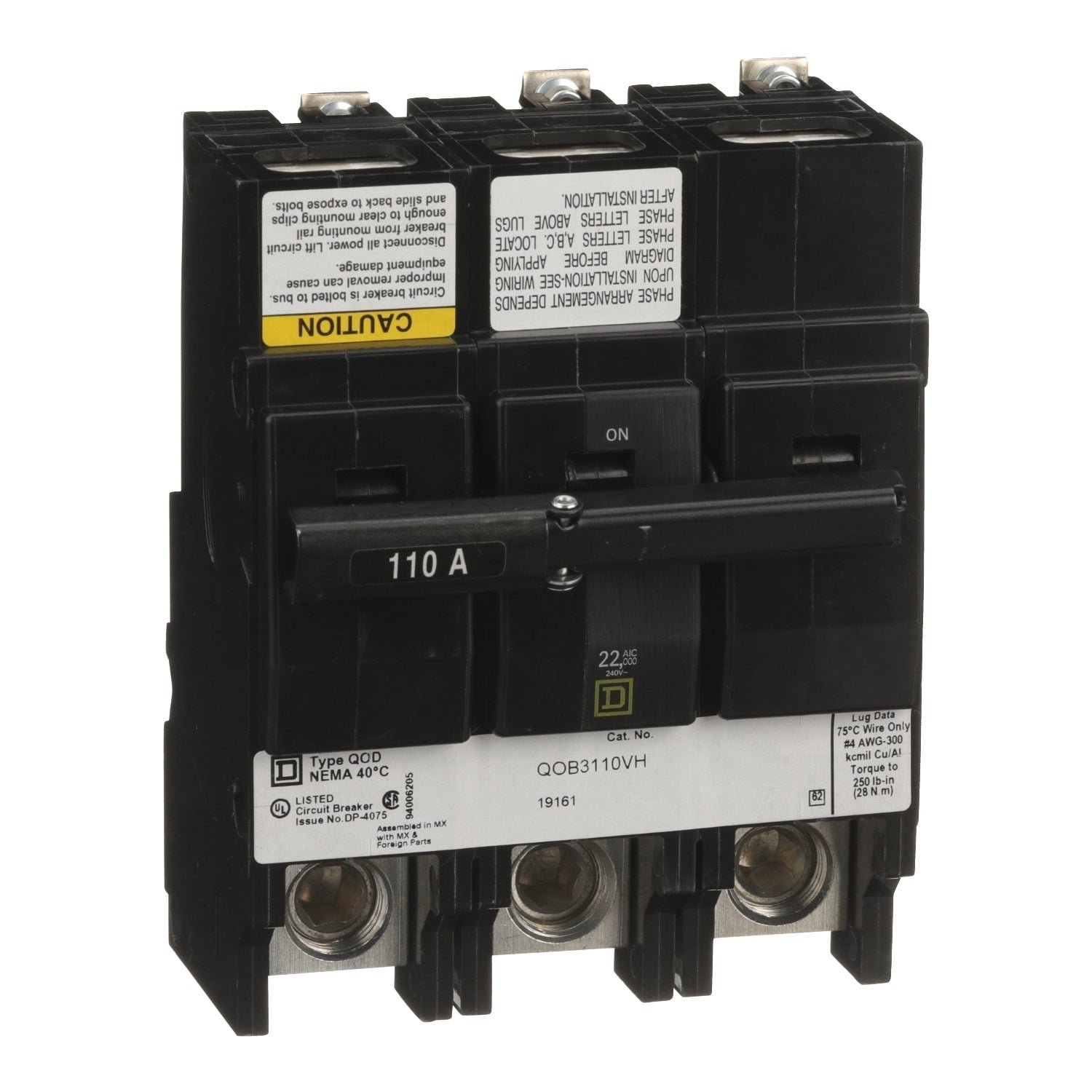

QOB3110VH – Square D Bolt-On 110 Amp Breaker

Square D QOB series three pole 110 ampere bolt-on molded case circuit breaker with maximum voltage rating of 240V tripping method thermal magnetic and standard interrupting rating of 22 kiloampere at 240V functions long-time and instantaneous suitable for QOB series load centers.

Specifications:

• Product: Miniature circuit-breaker
• Range: QO
• Line Rated Current: 110 A
• System Voltage: 120 V AC, 120/240 V AC, 240 V AC
• Mounting Type: Bolt-on
• Number of Poles: 3P
• Circuit Breaker Type: Standard
• Ratings: Not rated
• Electrical Connection: Box lugs
• Inturrupt Rating: 22 kA at: 120/240 V AC 50/60 Hz, 22 kA at: 240 V AC 50/60 Hz, 22 kA at: 120 V AC 50/60 Hz
• Number of Panel Spaces: 6
• Wire Size: AWG 4…300 kcmil (copper or aluminium)
• Height: 5.72 in
• Depth: 4.9 in
• Width: 4.5 in
• Certifications: CSA, UL listed
• Ambient Rating: 104 Degree F (40 Degree C)
• Authentic Square D Product
• Dimensions (H x W x L): 5.72″ x 4.5″ x 4.9″
• 3 phase

Alt model: q0b3110vh
