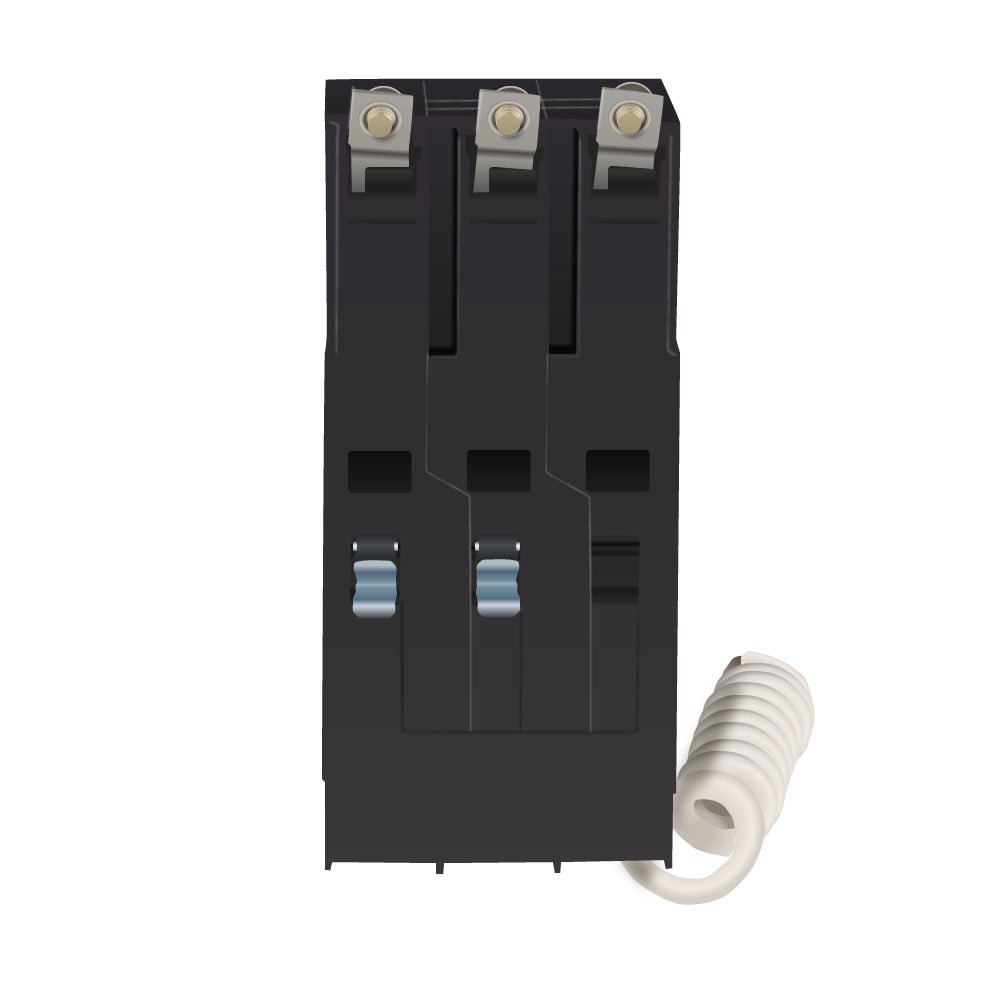

QOB315GFI – Square D Bolt-On 15 Amp GFCI Breaker

QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. This 3 pole QO circuit breaker is rated at 15A at 208Y/120VAC. This unit provides 10kA breaking capacity and bolt on mounting. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. This product includes a 6mA ground fault A with pigtail. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555

Specifications:

• Product: Miniature circuit-breaker
• Range: QO
• Current Rating: 15 A
• Voltage Rating: 208Y/120 V AC
• Mounting Type: Bolt-on
• Number of Poles: 3P
• Circuit Breaker Type: Ground fault protecting class A 6 mA
• Ratings: Not rated
• Electrical Connection: Box lugs
• Inturrupt Rating: 10 kA 208Y/120 V AC 50/60 Hz
• Number of Panel Spaces: 3
• Wire Size: AWG 12…AWG 4 aluminium, AWG 14…AWG 6 copper
• Tightening torque: 40.71 lbf.in (4.6 N.m) 0.00…0.02 in² (2.5…10 mm²) AWG 16…AWG 14), 40.71 lbf.in (4.6 N.m) 0.01…0.03 in² (4…20 mm²) AWG 12…AWG 4)
• Certifications: UL listed, CSA
• Ambient Rating: 104 Degree F (40 Degree C)
• Authentic Square D Product
• Dimensions (H x W x L): 4.12″ x 2.25″ x 2.91″
• 3 phase

Alt model: q0b315gfi
