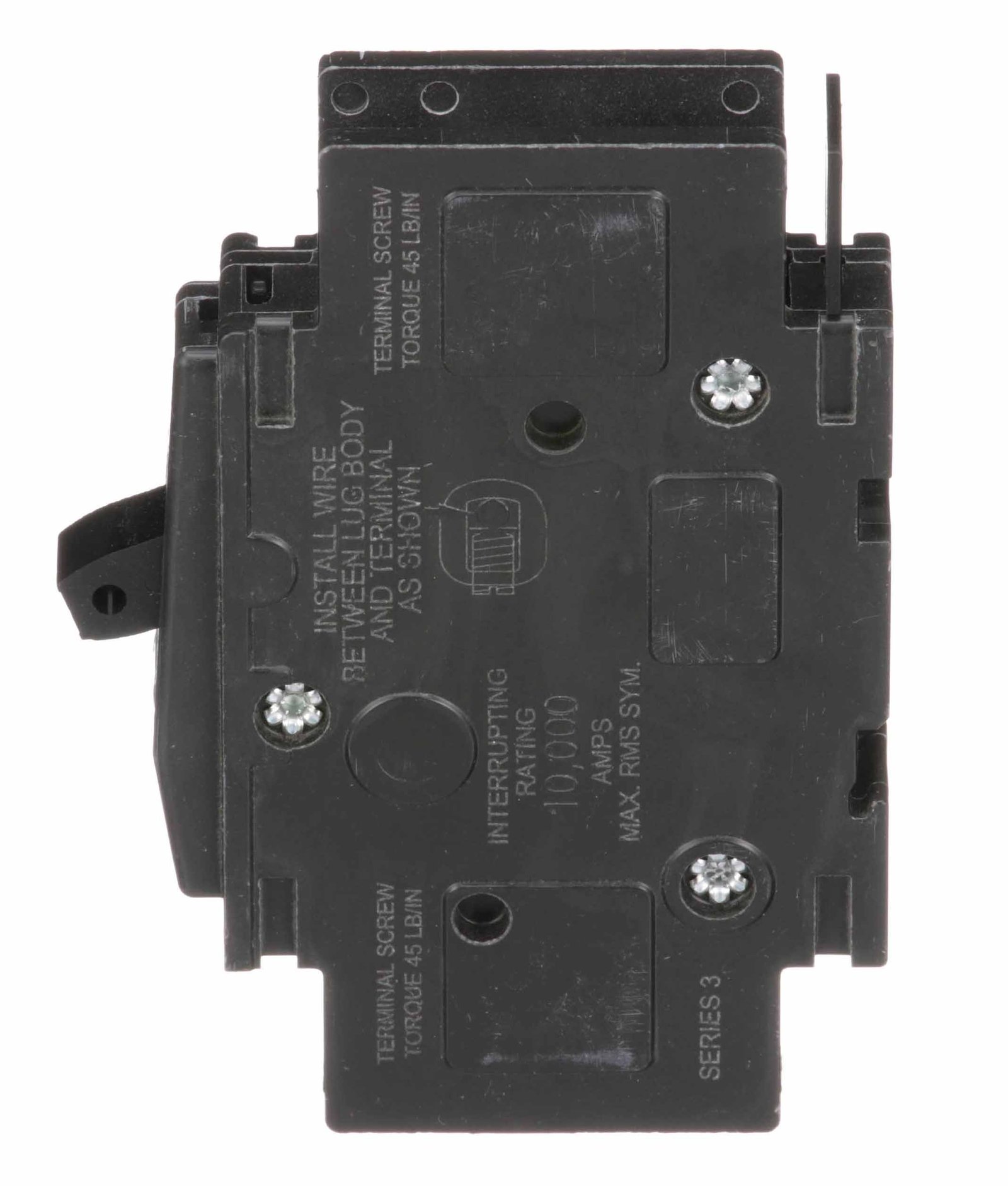

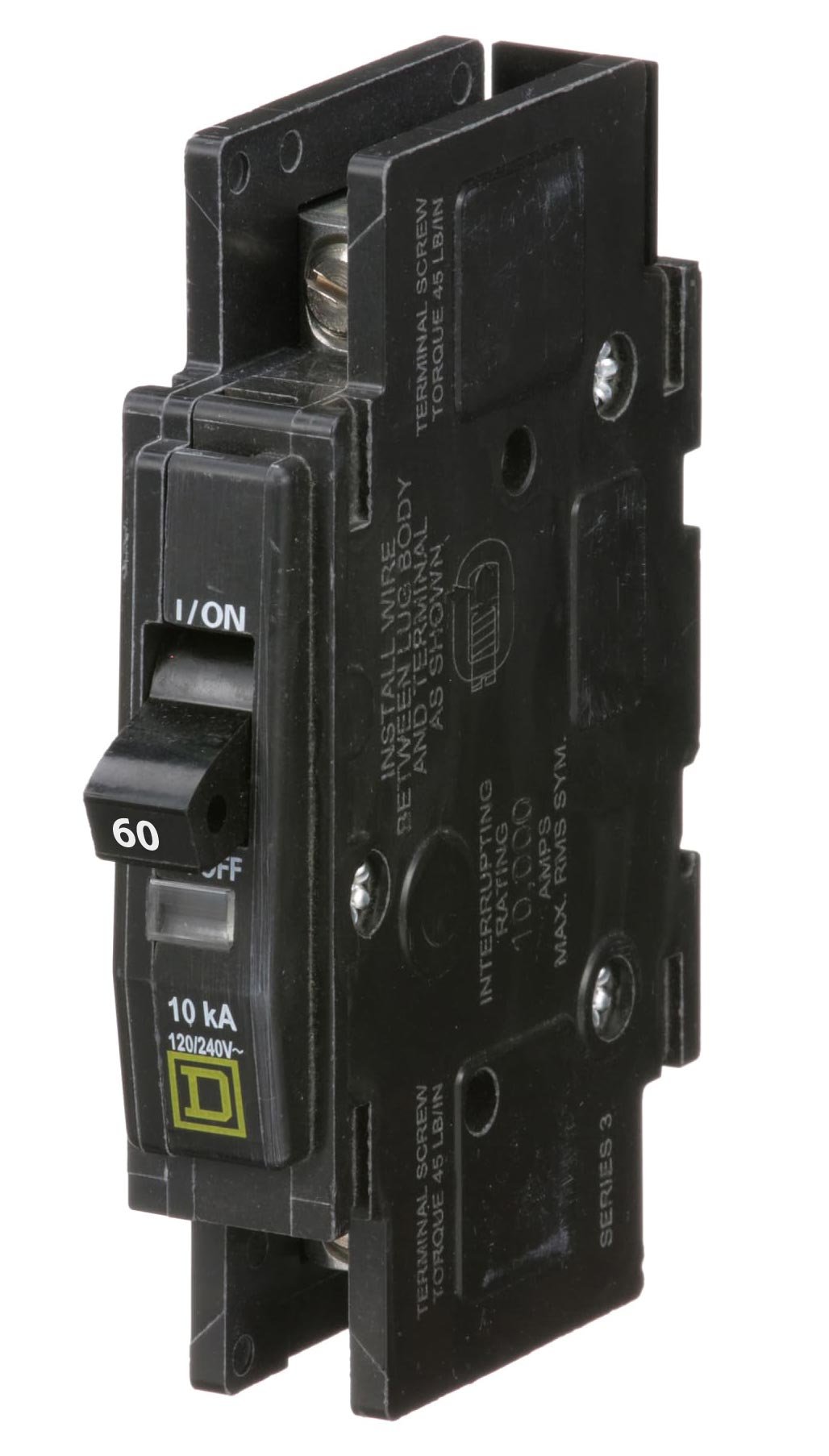

QOU160 – Square D Miniature Circuit Breaker

Specifications:

• Product or component type: Miniature circuit-breaker
• Range of product: QOU
• Circuit breaker type: Standard
• Circuit breaker application: HACR and Switching Duty rated
• Line Rated Current: 60 A
• Number of Poles: 1P
• Interrupt Rating: 10 kA at: 120/240 V AC, 5 kA at: 48 V DC, 10 kA at: 120 V AC
• Electrical connection: Slotted box lugs, line side, Slotted box lugs, load side
• System Voltage: 120 V AC, 120/240 V AC, 48 V DC
• Mounting mode: Unit mount
• AWG gauge: AWG 14…AWG 2 (aluminium/copper)
• Height: 4.05 in
• Depth: 2.95 in
• Width: 0.75 in
• Product certifications: CSA, IEC, UL listed
• Authentic Square D Product
• Dimensions (H x W x L): 4.05″ x 0.75″ x 2.95″

Alt model: q0u160
