THHQB1140 – GE – 22kA Circuit Breaker

SKU THHQB1140 Category
Availability: Some items may be in stock.
For current availability or a custom quote, please contact us at quote@amrocor.com.

Price:

$ 28.21

THHQB1140 – GE – 22kA Circuit Breaker

SKU THHQB1140 Category
Thumb
Thumb
Product Image
Product Image
Click image to view
Photo may not represent actual item. Refer to name and product specs for all details.
Price:

$ 28.21

Availability: Some items may be in stock.
For current availability or a custom quote, please contact us at quote@amrocor.com.

Description

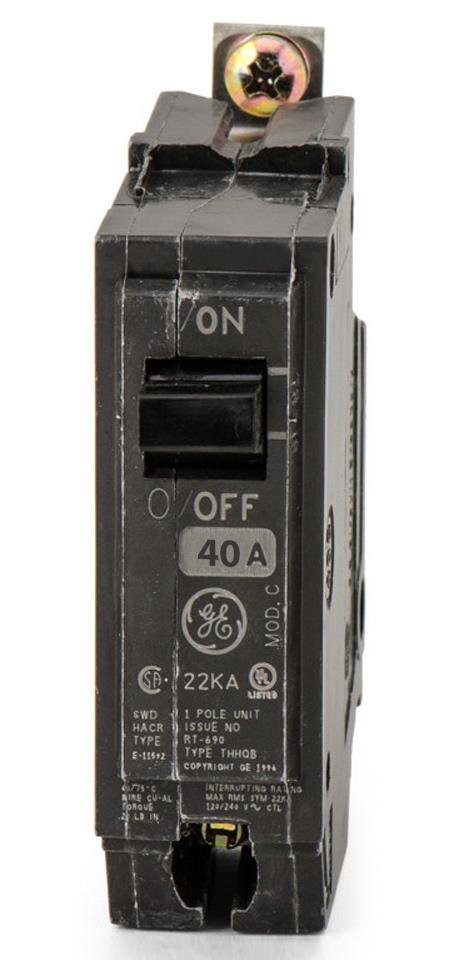

THHQB1140 – GE Bolt-On Molded Case Circuit Breaker

General Electric THHQB Series single pole 40 ampere bolt-on molded case circuit breaker with maximum voltage rating of 240V trip type thermal magnetic and standard interrupting rating of 22 kiloampere at 120V (LI) Long-Time and Instantaneous trip functions and load side lug terminal.

Specifications:

  • Trip Style: Non-Interchangeable
  • Frame Type: Q-Line
  • Amperage: 40 A
  • System Voltage: 120 Vac, 120/240 Vac
  • Poles: 1
  • Trip Function: LI
  • Continuous Current Rated: Standard
  • 120 Vac Interrupting Rating: 22 KAIC
  • 120/240 Vac Interrupting Rating: 22 KAIC
  • Suitable for Reverse Feed: Yes
  • Long Time: Fixed
  • Instantaneous: Fixed
  • Protective Relays: No
  • Current Metering: No
  • Special Markings: HACR
  • GSA Compliance: No
  • Authentic General Electric Product
