THQD32125WL – GE – Molded Case Circuit Breaker

SKU THQD32125WL Category
Availability: Some items may be in stock.
For current availability or a custom quote, please contact us at quote@amrocor.com.

Price:

$ 979.99

THQD32125WL – GE – Molded Case Circuit Breaker

SKU THQD32125WL Category
Thumb
Product Image
Click image to view
Photo may not represent actual item. Refer to name and product specs for all details.
Price:

$ 979.99

Availability: Some items may be in stock.
For current availability or a custom quote, please contact us at quote@amrocor.com.

Description

Overview

Product Specifications – THQD32125WL – GE Molded Case Circuit Breaker

  • Part Number:

    THQD32125WL

  • Manufacturer:

    General Electric

  • Family:

    Q-Line

  • Pole:

    3

  • Amp

    125

  • Volt:

    240

  • Phase:

    3

  • Category:

    Molded Case / 3-Pole

  • Connection:

    Feed-Thru

  • Type:

    THQD

  • Functions:

    LI – Long-Time and Instantaneous

  • Protection:

    Thermal Magnetic

  • AIC Ratings:

    22kA@240V

Dimensions

  • Dimensions (HxWxD):

    6.56″ x 4.13″ x 2.67″

  • Weight:

    8 lbs

Standards

CSA Approved logo

Product Description – THQD32125WL – GE Molded Case Circuit Breaker

General Electric Q-Line, Type THQD, 3P, 3PH, 125A, 240V, 22kA@240V, complete with non-interchangeable trip unit and line & load side lug terminals, high interrupting capacity, 40 degree C, feed-thru, thermal magnetic molded case circuit breakers

Documentation

PDF Icon Catalogue

PDF Icon Technical Specifications

PDF Icon Data Sheet

You may also like

Related products

Customers Also Bought

QOB2100 - Square D - 100 Amp Circuit Breaker
QOB2100 – Square D – 100 Amp Circui...
SKU: qob2100
In stock
$ 60.99
L3514M Baldor Single Phase Motor, TEFC, 56/56H Frame (1 1/2 HP, 1800 RPM)
L3514M Baldor Single Phase Motor, TEFC, 56/56H...
SKU: BALDOR-1715
In stock
Original price was: $ 1,622.50.Current price is: $ 1,111.41.
X100P2B U.S. Motors NEMA Premium, Dual Label Motor (100 HP, 230/460 Voltage, Three Phase, 1800 RPM)
X100P2B U.S. Motors NEMA Premium, Dual Label Mo...
SKU: USMOTORS-1133
In stock
$ 13,714.32
BR13S2ACR3 U.S. Motors FCR Series Brake Motors (1/3 HP, 56C Frame, 4.4 Brake Torque , C-Face , 1800 RPM)
BR13S2ACR3 U.S. Motors FCR Series Brake Motors ...
SKU: USMOTORS-1750
In stock
$ 1,918.88
XS12CA2JCR U.S. Motors Hazardous Location Motor (1/2 HP, 56C Frame, 1800 RPM)
XS12CA2JCR U.S. Motors Hazardous Location Motor...
SKU: USMOTORS-1775
In stock
$ 674.36
05036ET3E326HP-W22 WEG NEMA P-Base Motor (50 HP, 37 kW, 3600 RPM, 326HP Frame, 230/460 Voltage, 3 Phase, TEFC)
05036ET3E326HP-W22 WEG NEMA P-Base Motor (50 HP...
SKU: WEG-0194
In stock
Original price was: $ 8,685.30.Current price is: $ 6,763.68.
ECP83774T-5 Baldor Severe Duty IEEE 841 Motor (10 HP, 1800 RPM, 3 Phase, 215T Frame, TEFC Enclosure, 575 Voltage)
ECP83774T-5 Baldor Severe Duty IEEE 841 Motor (...
SKU: BALDOR-1186
In stock
Original price was: $ 4,601.25.Current price is: $ 3,243.88.
ZCKD05 - Square D - Switch
ZCKD05 – Square D – Switch
SKU: ZCKD05
In stock
$ 28.99

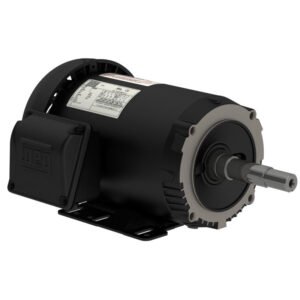

00156ET3E143JM-S WEG Close Coupled Pump Motor (1 .5 HP, 3 Phase, 230/460 Voltage, TEFC Enclosure, 3600 RPM, 143/5JM Frame)
