1000 kVA Three-Phase OLTC Substation Transformer

Categories ,
Availability: Some items may be in stock.
For current availability or a custom quote, please contact us at quote@amrocor.com.

Price:

$ 150,000.00

1000 kVA Three-Phase OLTC Substation Transformer

Categories ,
Thumb
Product Image
Click image to view
Photo may not represent actual item. Refer to name and product specs for all details.
Price:

$ 150,000.00

Availability: Some items may be in stock.
For current availability or a custom quote, please contact us at quote@amrocor.com.

Description

This 1,000 kVA Three-Phase Substation Transformer with On-Load Tap Changer (OLTC) is designed for accurate voltage regulation and reliable power delivery in industrial, commercial, and utility networks. Built for efficiency, durability, and compliance with IEEE and UL standards, it provides dependable performance under varying load conditions.

Technical Specifications

Feature Specification
Cooling Type ONAN / ONAF
Primary Voltage 2,400 V – 46,000 V
Secondary Voltage 208 V – 15,000 V
Rated Frequency 60 Hz
Tap Range ±2 × 2.5% (On-Load Tap Changer)
Winding Materials Copper or Aluminum
Core Material Grain-Oriented Silicon Steel Sheet
Impedance ~6.50%
Standards IEEE C57.12.00 etc., UL Listed
Sound Level ~68 dB (for 10 MVA, similar levels for larger units)
Dielectric Fluid Options Non-PCB Mineral Oil or FR3 Biodegradable Oil
Vector Configurations Delta–Wye, Wye–Wye, Delta–Delta, Wye–Delta (per request)

You may also like

Related products

Customers Also Bought

EHM3611T-5 Baldor Three Phase HVAC Motor, TEFC, 182T Frame, TEFC (3 HP, 1800 RPM)
EHM3611T-5 Baldor Three Phase HVAC Motor, TEF...
SKU: BALDOR-2316
In stock
Original price was: $ 1,588.75.Current price is: $ 1,070.43.

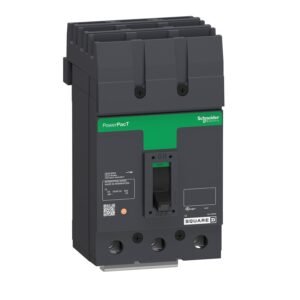

QDA32150 - Square D - Molded Case Circuit Breaker
QDA32150 – Square D – Molded Case C...
SKU: QDA32150
In stock
$ 568.99
114167.00 Leeson Motors (C6C17FK50 , 3/4 HP, 56 Frame, 1725RPM, 115/208-230, TEFC)
114167.00 Leeson Motors (C6C17FK50 , 3/4 HP, ...
SKU: LEESON-0552
In stock
$ 0.00
55-530249G005 - General Electrics - Magnetic Coil
55-530249G005 – General Electrics –...
SKU: 55-530249G005
In stock
$ 648.99
BAB3045H - Eaton - 45 Amp Circuit Breaker
BAB3045H – Eaton – 45 Amp Circuit B...
SKU: bab3045h
In stock
Original price was: $ 171.99.Current price is: $ 149.99.

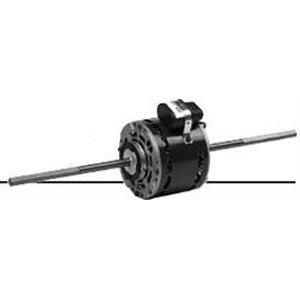

4125 U.S. Motors Permanent Split Cap. A/C-Heat Pump Motor (1/30 HP, 115 Volts, Single Shaft, 1100 RPM)
