1000 kVA Three-Phase OLTC Substation Transformer

Categories ,
Availability: Some items may be in stock.
For current availability or a custom quote, please contact us at quote@amrocor.com.

Price:

$ 150,000.00

1000 kVA Three-Phase OLTC Substation Transformer

Categories ,
Thumb
Product Image
Click image to view
Photo may not represent actual item. Refer to name and product specs for all details.
Price:

$ 150,000.00

Availability: Some items may be in stock.
For current availability or a custom quote, please contact us at quote@amrocor.com.

Description

This 1,000 kVA Three-Phase Substation Transformer with On-Load Tap Changer (OLTC) is designed for accurate voltage regulation and reliable power delivery in industrial, commercial, and utility networks. Built for efficiency, durability, and compliance with IEEE and UL standards, it provides dependable performance under varying load conditions.

Technical Specifications

Feature Specification
Cooling Type ONAN / ONAF
Primary Voltage 2,400 V – 46,000 V
Secondary Voltage 208 V – 15,000 V
Rated Frequency 60 Hz
Tap Range ±2 × 2.5% (On-Load Tap Changer)
Winding Materials Copper or Aluminum
Core Material Grain-Oriented Silicon Steel Sheet
Impedance ~6.50%
Standards IEEE C57.12.00 etc., UL Listed
Sound Level ~68 dB (for 10 MVA, similar levels for larger units)
Dielectric Fluid Options Non-PCB Mineral Oil or FR3 Biodegradable Oil
Vector Configurations Delta–Wye, Wye–Wye, Delta–Delta, Wye–Delta (per request)

You may also like

Related products

Customers Also Bought

Placeholder
Mobilith SHC 220–40 Tube Case | Advanced Multip...
SKU: AMRO-00235
In stock
$ 0.00
CMD63B500 - Siemens - Molded Case Circuit Breaker
CMD63B500 – Siemens – Molded Case C...
SKU: CMD63B500
In stock
$ 5,590.99

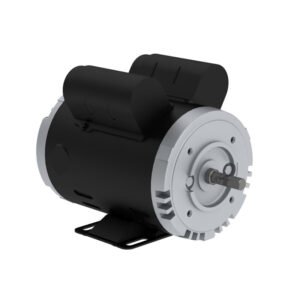

.3336OT1BW56C-S WEG C-Face Motor (.33 HP, 3600 RPM, 1 Phase, 60 Hz, W56C Frame, ODP, 115/208-230 V)
.3336OT1BW56C-S WEG C-Face Motor (.33 HP, 3600 ...
SKU: WEG-1171
In stock
Original price was: $ 370.50.Current price is: $ 288.54.
CD5375 Baldor Shunt Wound SCR Drive Motor (3/4 HP, 90 VDC, TEFC , 1750 RPM)
CD5375 Baldor Shunt Wound SCR Drive Motor (3/4...
SKU: BALDOR-1438
In stock
Original price was: $ 3,036.25.Current price is: $ 2,045.68.
GHC2020 - Eaton - Molded Case Circuit Breaker
GHC2020 – Eaton – Molded Case Circu...
SKU: GHC2020
In stock
$ 120.99

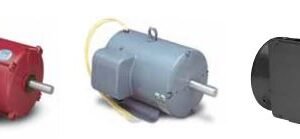

111266.00 Leeson Motors (A6P17NR1 , 3/4 HP, 56H Frame, 1625RPM, 115/230V, TENV)
111266.00 Leeson Motors (A6P17NR1 , 3/4 HP, 5...
SKU: LEESON-0359
In stock
$ 0.00
M1509T Baldor Definite Purpose Motor (7.5/3.8 HP, 1800/900 RPM, 3 Phase, 215T Frame, TEFC Enclosure, 18.9 Voltage )
M1509T Baldor Definite Purpose Motor (7.5/3.8 H...
SKU: BALDOR-0959
In stock
Original price was: $ 6,650.00.Current price is: $ 4,480.44.
MP220240CT2 - Siemens - 40 Amp Molded Case Circuit Breaker
MP220240CT2 – Siemens – 40 Amp Mold...
SKU: MOLDED-3447
In stock
$ 37.99

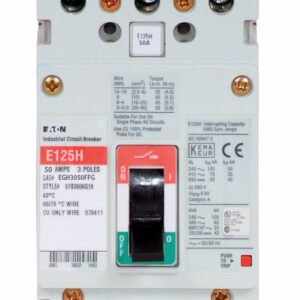

EGH3050FFG - Eaton - Molded Case Circuit Breaker
EGH3050FFG – Eaton – Molded Case Ci...
SKU: MOLDED-2653
In stock
Original price was: $ 710.99.Current price is: $ 477.99.

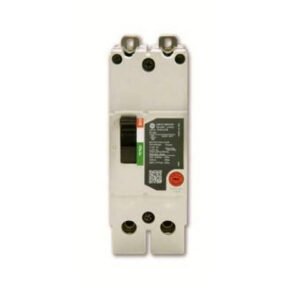

TEYH2060B - GE 60 Amp Molded Case Circuit Breaker
