1000 kVA Three-Phase OLTC Substation Transformer

Categories ,
Availability: Some items may be in stock.
For current availability or a custom quote, please contact us at quote@amrocor.com.

Price:

$ 150,000.00

1000 kVA Three-Phase OLTC Substation Transformer

Categories ,
Thumb
Product Image
Click image to view
Photo may not represent actual item. Refer to name and product specs for all details.
Price:

$ 150,000.00

Availability: Some items may be in stock.
For current availability or a custom quote, please contact us at quote@amrocor.com.

Description

This 1,000 kVA Three-Phase Substation Transformer with On-Load Tap Changer (OLTC) is designed for accurate voltage regulation and reliable power delivery in industrial, commercial, and utility networks. Built for efficiency, durability, and compliance with IEEE and UL standards, it provides dependable performance under varying load conditions.

Technical Specifications

Feature Specification
Cooling Type ONAN / ONAF
Primary Voltage 2,400 V – 46,000 V
Secondary Voltage 208 V – 15,000 V
Rated Frequency 60 Hz
Tap Range ±2 × 2.5% (On-Load Tap Changer)
Winding Materials Copper or Aluminum
Core Material Grain-Oriented Silicon Steel Sheet
Impedance ~6.50%
Standards IEEE C57.12.00 etc., UL Listed
Sound Level ~68 dB (for 10 MVA, similar levels for larger units)
Dielectric Fluid Options Non-PCB Mineral Oil or FR3 Biodegradable Oil
Vector Configurations Delta–Wye, Wye–Wye, Delta–Delta, Wye–Delta (per request)

You may also like

Related products

Customers Also Bought

BQC2152120 - Eaton - 15 Amp Molded Case Circuit Breaker
BQC2152120 – Eaton – 15 Amp Molded ...
SKU: MOLDED-3439
In stock
$ 51.99

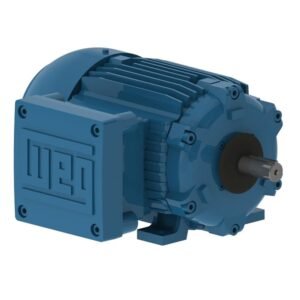

06036XT3H364TS WEG Explosion Proof Motor (60 HP, 3600 RPM, 3 Phase, 364/5TS Frame, 575 Voltage, Explosion Proof)
06036XT3H364TS WEG Explosion Proof Motor (60 HP...
SKU: WEG-1744
In stock
Original price was: $ 12,984.40.Current price is: $ 10,111.60.
00236OS1BJPR56J-S WEG Jet Pump Motor (2 HP, 3600 RPM, ODP Enclosure, Single Phase, 115/208-230 Voltage)
00236OS1BJPR56J-S WEG Jet Pump Motor (2 HP, 360...
SKU: WEG-0073
In stock
Original price was: $ 569.40.Current price is: $ 443.42.
D40P2HS U.S. Motors General Purpose Motor (40 HP, 324TS Frame, Three Phase, 1800 RPM)
D40P2HS U.S. Motors General Purpose Motor (40 H...
SKU: USMOTORS-2145
In stock
$ 2,686.72
HMCP070M2C - Eaton - Molded Case Circuit Breaker
HMCP070M2C – Eaton – Molded Case Ci...
SKU: MOLDED-0547
In stock
Original price was: $ 518.99.Current price is: $ 263.99.
Skydrol SKY-5 Fire Resistant Hydraulic Fluid – 5 Gal Pail | High Stability Hydraulic Oil for Aircraft Systems
Skydrol SKY-5 Fire Resistant Hydraulic Fluid – ...
SKU: EAST-0023
In stock
$ 1,200.00
B125 - Siemens - 25 Amp Circuit Breaker
B125 – Siemens – 25 Amp Circuit Bre...
SKU: b125
In stock
$ 16.19
LGB2B070B - Siemens - Molded Case Circuit Breaker
LGB2B070B – Siemens – Molded Case C...
SKU: LGB2B070B
In stock
$ 218.99
EM2542T-CI Premium Efficient Super-E Baldor Industrial Motor, Three Phase, ODP, 324TS Frame (50 HP, 3600 RPM)
EM2542T-CI Premium Efficient Super-E Baldor Ind...
SKU: BALDOR-1925
In stock
Original price was: $ 11,147.50.Current price is: $ 7,510.63.

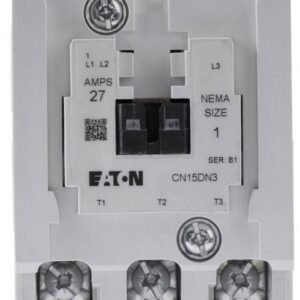

CN15DN3AB - Eaton - Magnetic Contactor
