167 kVA 13200Y/7620 Single Phase Pad-Mount Transformer

Categories ,
Availability: Some items may be in stock.
For current availability or a custom quote, please contact us at quote@amrocor.com.

Price:

$ 17,800.00

167 kVA 13200Y/7620 Single Phase Pad-Mount Transformer

Categories ,
Thumb
Product Image
Click image to view
Photo may not represent actual item. Refer to name and product specs for all details.
Price:

$ 17,800.00

Availability: Some items may be in stock.
For current availability or a custom quote, please contact us at quote@amrocor.com.

Description

This 167 kVA Single-Phase Pad-Mount Transformer efficiently steps down 13200Y/7620V to 120/240V, making it well-suited for commercial, utility, and light industrial power distribution. The dead-front, loop-feed configuration enhances safety, simplifies maintenance, and supports underground distribution networks. ONAN cooling provides consistent, long-term performance, while the tamper-resistant pad-mount enclosure is engineered for durability in demanding outdoor environments.

Technical Specifications:

  • Power Rating: 167 kVA

  • Phase: Single Phase

  • Primary Voltage: 13200Y/7620V

  • Secondary Voltage: 120/240V

  • Cooling: ONAN (Oil Natural Air Natural)

  • Configuration: Dead Front, Loop Feed

  • Mounting Type: Padmount

  • Insulation: Mineral Oil (FR3 fluid optional)

  • Application: Commercial, Utility, Light Industrial

  • Frequency: 60 Hz

  • Certifications: ANSI C57.12.00 / C57.12.34

  • Efficiency: Meets DOE 2016 energy efficiency standards

  • Temperature Rise: 65 °C

You may also like

Related products

Customers Also Bought

00318ET3H182TC-W22 WEG Motor (3 HP, 1800 RPM, 3 Phase, 60 Hz, 182/4TC, 575V, TEFC, Foot Mount)
00318ET3H182TC-W22 WEG Motor (3 HP, 1800 RPM, 3...
SKU: WEG-0898
In stock
Original price was: $ 910.00.Current price is: $ 708.67.
C25DND215A - Eaton - Magnetic Contactor
C25DND215A – Eaton – Magnetic Conta...
SKU: C25DND215A
In stock
$ 254.99
TQD22200WL - GE - Molded Case Circuit Breaker
TQD22200WL – GE – Molded Case Circu...
SKU: MOLDED-3184
In stock
$ 503.99

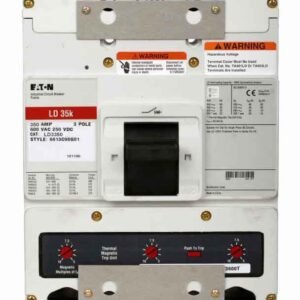

LD3350Y - Eaton - Molded Case Circuit Breaker
LD3350Y – Eaton – Molded Case Circu...
SKU: LD3350Y
In stock
Original price was: $ 3,244.99.Current price is: $ 2,551.99.

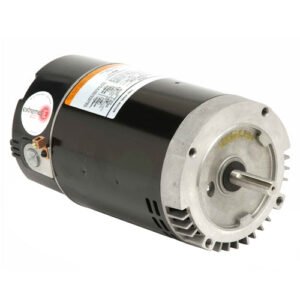

EB817 U.S. Motors C-Flange Pool and Spa Motor (3 HP, 56C Frame)
EB817 U.S. Motors C-Flange Pool and Spa Motor (...
SKU: USMOTORS-2389
In stock
$ 712.11
Placeholder
THLC136090 – GE – Molded Case Circu...
SKU: THLC136090
In stock
$ 706.99
WDS2P2AC U.S. Motors Stainless Steel Washdown Motor (2 HP, 145TC Frame, 1800 RPM)
WDS2P2AC U.S. Motors Stainless Steel Washdown M...
SKU: USMOTORS-1701
In stock
$ 1,688.56
419914-10L Baldor SLIDE BASE HEAVY DUTY L2168
419914-10L Baldor SLIDE BASE HEAVY DUTY L2168
SKU: BALDOR-0057
In stock
$ 0.00
C10P1B U.S. Motors General Purpose CORRO DUTY NEMA Efficient Motors (10 HP, 3600 RPM, 230/460 Voltage)
C10P1B U.S. Motors General Purpose CORRO DUTY N...
SKU: USMOTORS-0579
In stock
$ 1,563.78

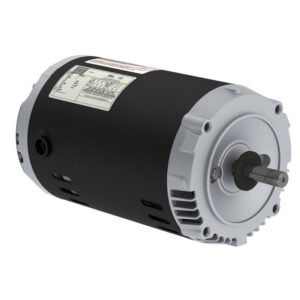

00136OS3EJPR56J-S WEG Jet Pump Motor (1 HP, B56 FRAME, 208-230/460 V, THREE PHASE, ODP , 3470 RPM)
