2-2-4 Stephens Aluminum Triplex URD Direct Burial Cable

SKU 2GCW3 Category
Availability: Some items may be in stock.
For current availability or a custom quote, please contact us at quote@amrocor.com.

Price:

$4.68

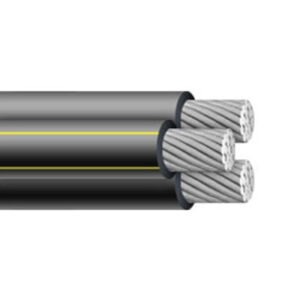

2-2-4 Stephens Aluminum Triplex URD Direct Burial Cable

SKU 2GCW3 Category
Thumb
Product Image
Click image to view
Photo may not represent actual item. Refer to name and product specs for all details.
Price:

$4.68

Availability: Some items may be in stock.
For current availability or a custom quote, please contact us at quote@amrocor.com.

Description

2-2-4 Underground Secondary Distribution Cable

Color:
Black.

Description:
Underground Secondary Distribution Cables are twisted assemblies of alloy 1350 aluminum conductors insulated with cross-linked polyethylene. THey are used in various underground applications in secondary distribution circuits.

Conductor:
Compressed Class B compressed stranded, 1350 series aluminum alloy.

Insulation:
Black cross-linked polyethylene (XLPE)

Assembly:
Phase conductors and neutral conductors are cabled together to form a twisted assembly.

Applicable Standards:
– UL 854: Service ENtrance Cables
– ICEA S-105-692 Standard for 600 Volt Single Layer Thermoset Insulated Utility Underground Distribution Cables

2-2-4 Triplex URD Cable Specifications*:

Phase Conductor-Size: 2 AWG
Conductor Strand: 7
Neutral Conductor-Size: 4 AWG
Conductor Strand: 7
Insulation Thickness: 0.060 inches
Outside Diameter: .830 inches
Allowable Ampacity-Direct Burial: 160 Amps at 90°C
Allowable Ampacity-In-Duct: 120 Amps at 90°C
Weight: 0.249 lbs per ft

*Data provided on this page is subject to change based on different manufacturers variances.

You may also like

Related products

Customers Also Bought

HMCP400Y5 – Eaton – Molded Case Cir...
SKU: HMCP400Y5
In stock
Original price was: $2,023.99.Current price is: $1,988.99.
00112ST3QIE145TC-W22 WEG Motor (1 HP, 1200 RPM,...
SKU: WEG-1376
In stock
Original price was: $1,445.60.Current price is: $1,125.77.

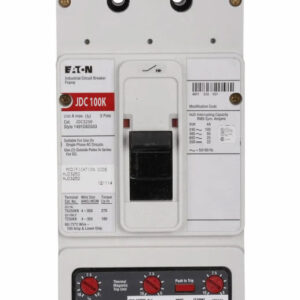

JDC3250 – Eaton – Molded Case Circu...
SKU: JDC3250
In stock
Original price was: $3,435.99.Current price is: $1,714.99.

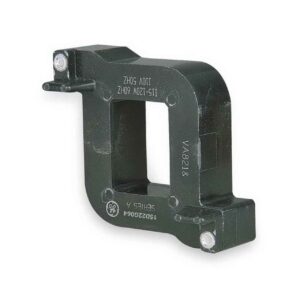

15D22G064 – General Electrics – Mag...
