2000 kVA Three-Phase OLTC Substation Transformer

Categories ,
Availability: Some items may be in stock.
For current availability or a custom quote, please contact us at quote@amrocor.com.

Price:

$ 340,000.00

2000 kVA Three-Phase OLTC Substation Transformer

Categories ,
Thumb
Product Image
Click image to view

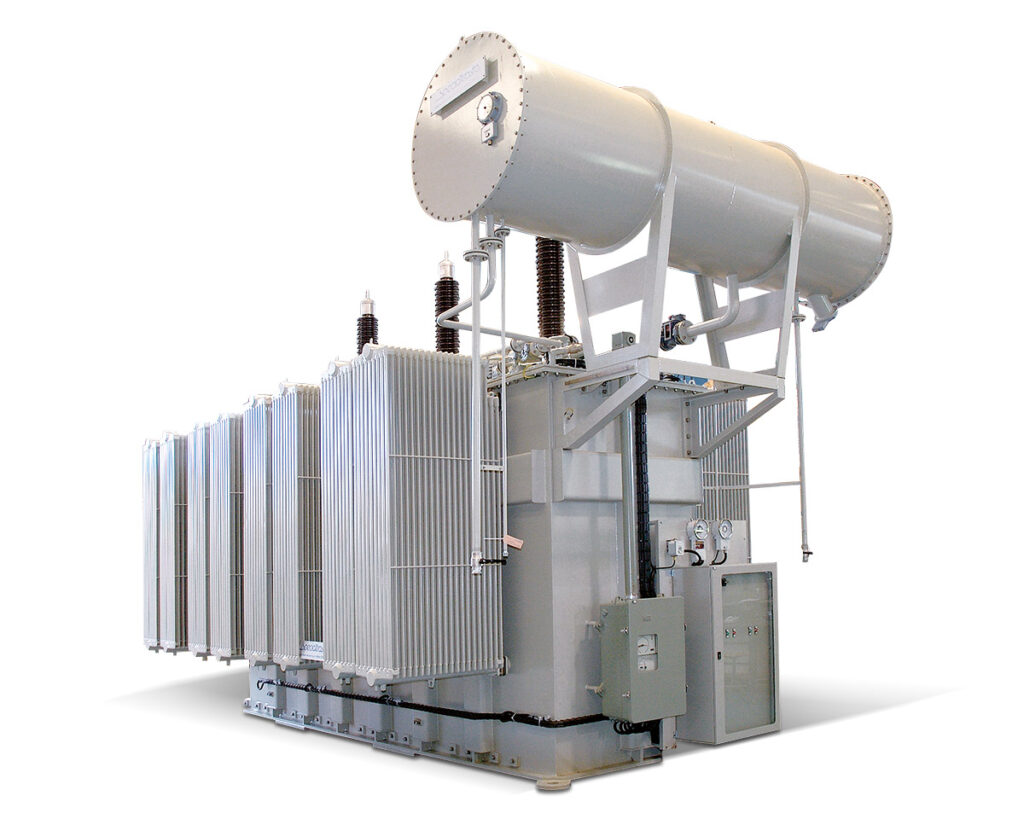

Photo may not represent actual item. Refer to name and product specs for all details.
Price:

$ 340,000.00

Availability: Some items may be in stock.
For current availability or a custom quote, please contact us at quote@amrocor.com.

Description

This 2,000 kVA Three-Phase Substation Transformer with On-Load Tap Changer (OLTC) is built for precise voltage regulation and reliable power distribution in industrial, commercial, and utility networks. Engineered for efficiency and long service life, it complies with IEEE and UL standards to ensure consistent performance under varying load conditions.

Technical Specifications

Feature Specification
Cooling Type ONAN / ONAF
Primary Voltage 2,400 V – 46,000 V
Secondary Voltage 208 V – 15,000 V
Rated Frequency 60 Hz
Tap Range ±2 × 2.5% (On-Load Tap Changer)
Winding Materials Copper or Aluminum
Core Material Grain-Oriented Silicon Steel Sheet
Impedance ~6.50%
Standards IEEE C57.12.00 etc., UL Listed
Sound Level ~68 dB (for 10 MVA, similar levels for larger units)
Dielectric Fluid Options Non-PCB Mineral Oil or FR3 Biodegradable Oil
Vector Configurations Delta–Wye, Wye–Wye, Delta–Delta, Wye–Delta (per request)

You may also like

Related products

Customers Also Bought

Placeholder
HNF366A – Siemens – Disconnect
SKU: HNF366A
In stock
$ 1,367.99
HO100V2SLGX US Motors HOLLOSHAFT® High Thrust Motor (WPI,100 HP,1 SPD,4 P,1785 RPM)
HO100V2SLGX US Motors HOLLOSHAFT® High Thrust M...
SKU: USMOTORS-0994
In stock
$ 15,698.61
AR1037 - Crouse-Hinds - Receptacle
AR1037 – Crouse-Hinds – Receptacle
SKU: AR1037
In stock
$ 1,155.99
E42B040 - Siemens - 40 Amp Molded Case Circuit Breaker
E42B040 – Siemens – 40 Amp Molded C...
SKU: E42B040
In stock
$ 155.99
42GRU9002 - Allen-Bradley - Photoswitch
42GRU9002 – Allen-Bradley – Photosw...
SKU: 42GRU9002
In stock
$ 316.99
EM31116 Baldor General Purpose Industrial Motor (1 HP, 1800 RPM, Three Phase, 230/460 Volt, ODP Enclosure)
EM31116 Baldor General Purpose Industrial Motor...
SKU: BALDOR-1407
In stock
Original price was: $ 1,185.00.Current price is: $ 798.39.

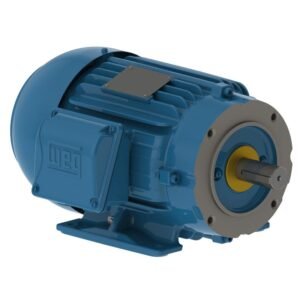

00218ST3QIE145TC-W22 WEG Motor (2 HP, 1800 RPM, 3 Phase, 143/5TC Frame, TEFC Enclosure, 460 Voltage)
