2000 kVA Three-Phase OLTC Substation Transformer

Categories ,
Availability: Some items may be in stock.
For current availability or a custom quote, please contact us at quote@amrocor.com.

Price:

$ 340,000.00

2000 kVA Three-Phase OLTC Substation Transformer

Categories ,
Thumb
Product Image
Click image to view
Photo may not represent actual item. Refer to name and product specs for all details.
Price:

$ 340,000.00

Availability: Some items may be in stock.
For current availability or a custom quote, please contact us at quote@amrocor.com.

Description

This 2,000 kVA Three-Phase Substation Transformer with On-Load Tap Changer (OLTC) is built for precise voltage regulation and reliable power distribution in industrial, commercial, and utility networks. Engineered for efficiency and long service life, it complies with IEEE and UL standards to ensure consistent performance under varying load conditions.

Technical Specifications

Feature Specification
Cooling Type ONAN / ONAF
Primary Voltage 2,400 V – 46,000 V
Secondary Voltage 208 V – 15,000 V
Rated Frequency 60 Hz
Tap Range ±2 × 2.5% (On-Load Tap Changer)
Winding Materials Copper or Aluminum
Core Material Grain-Oriented Silicon Steel Sheet
Impedance ~6.50%
Standards IEEE C57.12.00 etc., UL Listed
Sound Level ~68 dB (for 10 MVA, similar levels for larger units)
Dielectric Fluid Options Non-PCB Mineral Oil or FR3 Biodegradable Oil
Vector Configurations Delta–Wye, Wye–Wye, Delta–Delta, Wye–Delta (per request)

You may also like

Related products

Customers Also Bought

EB653 U.S. Motors C-Flange Pool and Spa Motor (1 HP, 56C Frame)
EB653 U.S. Motors C-Flange Pool and Spa Motor (...
SKU: USMOTORS-2390
In stock
$ 404.77
110090.00 Leeson Motors (M6K17FB4, 2 HP, 56H Frame, 1725RPM, 115/208-230V, TEFC)
110090.00 Leeson Motors (M6K17FB4, 2 HP, 56H F...
SKU: LEESON-0372
In stock
$ 0.00
FAL36050 - Square D - Molded Case Circuit Breaker
FAL36050 – Square D – Molded Case C...
SKU: MOLDED-0687
In stock
Original price was: $ 466.99.Current price is: $ 279.99.
ADS36200HS - GE 200 Amp Panel Board Switch
ADS36200HS – GE 200 Amp Panel Board Switch
SKU: ADS36200HS
In stock
$ 2,320.00
Placeholder
HGG3B040L – Siemens – 40 Amp Molded...
SKU: HGG3B040L
In stock
$ 242.99
D60P2GS U.S. Motors General Purpose Motor (60 HP, 364TS Frame, Three Phase, 1800 RPM)
D60P2GS U.S. Motors General Purpose Motor (60 H...
SKU: USMOTORS-2040
In stock
$ 4,220.84
CD6215 Baldor Shunt Wound SCR Drive Motor (1 1/2 HP, 180 VDC, TEFC , 1750 RPM)
CD6215 Baldor Shunt Wound SCR Drive Motor (1 1...
SKU: BALDOR-1433
In stock
Original price was: $ 4,837.50.Current price is: $ 3,259.26.
NGB3B035B - Siemens - Molded Case Circuit Breaker
NGB3B035B – Siemens – Molded Case C...
SKU: NGB3B035B
In stock
Original price was: $ 419.99.Current price is: $ 200.99.

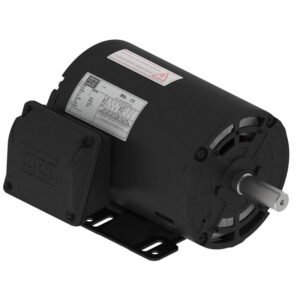

00512OT3E215T-S WEG Motor (5 HP, 1200 RPM, 3 Phase, 60 Hz, 213/5T Frame, ODP, 230/460 V, Foot-Mount)
