25 kVA 13200Y/7620 Single Phase Pad-Mount Transformer

Categories ,
Availability: Some items may be in stock.
For current availability or a custom quote, please contact us at quote@amrocor.com.

Price:

$ 6,700.00

25 kVA 13200Y/7620 Single Phase Pad-Mount Transformer

Categories ,
Thumb
Product Image
Click image to view
Photo may not represent actual item. Refer to name and product specs for all details.
Price:

$ 6,700.00

Availability: Some items may be in stock.
For current availability or a custom quote, please contact us at quote@amrocor.com.

Description

This 25 kVA Single-Phase Pad-Mount Transformer efficiently steps down 13200Y/7620V to 120/240V, making it ideal for small commercial, utility, and light industrial power distribution. Its dead-front, loop-feed configuration enhances safety, simplifies maintenance, and supports underground network integration. ONAN cooling ensures consistent, long-term performance, while the tamper-resistant pad-mount enclosure is engineered for reliable outdoor service in demanding environments.

Technical Specifications:

  • Power Rating: 25 kVA

  • Phase: Single Phase

  • Primary Voltage: 13200Y/7620V

  • Secondary Voltage: 120/240V

  • Cooling: ONAN (Oil Natural Air Natural)

  • Configuration: Dead Front, Loop Feed

  • Mounting Type: Padmount

  • Insulation: Mineral Oil (FR3 fluid optional)

  • Application: Small Commercial, Utility, Light Industrial

  • Frequency: 60 Hz

  • Certifications: ANSI C57.12.00 / C57.12.34

  • Efficiency: Meets DOE 2016 energy efficiency standards

  • Temperature Rise: 65 °C

You may also like

Related products

Customers Also Bought

ECP84413T-5 Baldor Severe Duty IEEE 841 Motor (150 HP, 3600 RPM, 3 Phase, 445TS Frame, TEFC Enclosure, 575 Voltage)
ECP84413T-5 Baldor Severe Duty IEEE 841 Motor (...
SKU: BALDOR-1155
In stock
Original price was: $ 40,507.50.Current price is: $ 28,557.79.
111935.00 Leeson Motors (A6T17XC23 , 3/4 HP, 56 Frame, 1725RPM, 208-230/460V, EPFC)
111935.00 Leeson Motors (A6T17XC23 , 3/4 HP, ...
SKU: LEESON-0482
In stock
$ 0.00
JJA36250U44X - Square D - Molded Case Circuit Breaker
JJA36250U44X – Square D – Molded Ca...
SKU: JJA36250U44X
In stock
$ 2,904.99
Placeholder
Amrocor AW 68 High Performance Hydraulic Oil | ...
SKU: AMRO-001
In stock
$ 0.00
QOB325 - Square D - 25 Amp Circuit Breaker
QOB325 – Square D – 25 Amp Circuit ...
SKU: qob325
In stock
$ 95.99
C10P1B U.S. Motors General Purpose CORRO DUTY NEMA Efficient Motors (10 HP, 3600 RPM, 230/460 Voltage)
C10P1B U.S. Motors General Purpose CORRO DUTY N...
SKU: USMOTORS-0579
In stock
$ 1,563.78
RGC320036E - Eaton - Molded Case Circuit Breaker
RGC320036E – Eaton – Molded Case Ci...
SKU: RGC320036E
In stock
Original price was: $ 10,330.99.Current price is: $ 8,264.99.
EHFM2515T Super-E Baldor Three Phase HVAC Motor , 256T Frame, ODP (20 HP, 1800 RPM)
EHFM2515T Super-E Baldor Three Phase HVAC Moto...
SKU: BALDOR-2333
In stock
Original price was: $ 4,771.25.Current price is: $ 3,214.63.

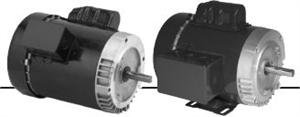

C1P1DCR U.S. Motors Vertical C-Face Motor (1 HP, 3600 RPM, 208-230/460 Voltage, 143TC Frame)
