3000 kVA Three-Phase OLTC Substation Transformer

Categories ,
Availability: Some items may be in stock.
For current availability or a custom quote, please contact us at quote@amrocor.com.

Price:

$ 189,500.00

3000 kVA Three-Phase OLTC Substation Transformer

Categories ,
Thumb
Product Image
Click image to view
Photo may not represent actual item. Refer to name and product specs for all details.
Price:

$ 189,500.00

Availability: Some items may be in stock.
For current availability or a custom quote, please contact us at quote@amrocor.com.

Description

This 3,000 kVA Three-Phase Substation Transformer with On-Load Tap Changer (OLTC) is engineered for efficient, high-capacity power distribution in industrial, commercial, and utility applications. It provides precise voltage regulation under varying load conditions and meets rigorous IEEE and UL standards for reliability and performance.

Technical Specifications

Feature Specification
Cooling Type ONAN / ONAF
Primary Voltage 2,400 V – 46,000 V
Secondary Voltage 208 V – 15,000 V
Rated Frequency 60 Hz
Tap Range ±2 × 2.5% (On-Load Tap Changer)
Winding Materials Copper or Aluminum
Core Material Grain-Oriented Silicon Steel Sheet
Impedance ~6.50%
Standards IEEE C57.12.00 etc., UL Listed
Sound Level ~68 dB (for 10 MVA, similar levels for larger units)
Dielectric Fluid Options Non-PCB Mineral Oil or FR3 Biodegradable Oil
Vector Configurations Delta–Wye, Wye–Wye, Delta–Delta, Wye–Delta (per request)

You may also like

Related products

Customers Also Bought

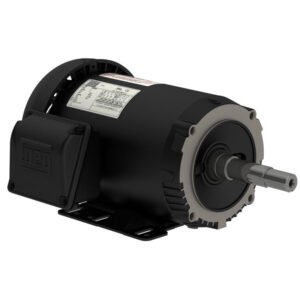

00712ET3E254JM-S WEG Close Coupled Pump Motor (7 .5 HP, 3 Phase, 230/460 Voltage, TEFC Enclosure, 1200 RPM, 254/6JM Frame)
00712ET3E254JM-S WEG Close Coupled Pump Motor (...
SKU: WEG-0124
In stock
Original price was: $ 3,191.50.Current price is: $ 2,485.39.
Q1515NC - Siemens - 15/15 Amp Tandem Circuit Breaker
Q1515NC – Siemens – 15/15 Amp Tande...
SKU: q1515nc
In stock
$ 13.99
H321AWK - Square D - Disconnect
H321AWK – Square D – Disconnect
SKU: H321AWK
In stock
$ 275.99
CL3712T Baldor Single Phase C-Face Motor, TEFC, 213TC Frame (10 HP, 1800 RPM)
CL3712T Baldor Single Phase C-Face Motor, TEFC,...
SKU: BALDOR-1591
In stock
Original price was: $ 5,395.00.Current price is: $ 3,695.58.
ANFL3507M Baldor Farm Duty Auger Drive Motors (0.75 HP, 1725 RPM, 1 Phase, 60 Hertz, 48YZ Frame, 115/230 Voltage)
ANFL3507M Baldor Farm Duty Auger Drive Motors (...
SKU: BALDOR-0186
In stock
Original price was: $ 1,477.50.Current price is: $ 1,045.33.

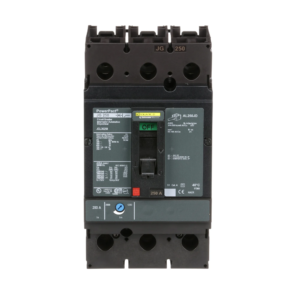

JGL36250 - Square D - Molded Case Circuit Breaker
JGL36250 – Square D – Molded Case C...
SKU: jgl36250
In stock
Original price was: $ 2,449.00.Current price is: $ 1,181.99.
01518ET3E254T-W22 WEG Motor (15 HP, 254T FRAME, 208-230/460V, THREE PHASE, TEFC , 1765 RPM)
01518ET3E254T-W22 WEG Motor (15 HP, 254T FRAME,...
SKU: WEG-2881
In stock
Original price was: $ 2,402.40.Current price is: $ 1,870.87.
.3336OT3E56-S WEG Motor (.33 HP, 3600 RPM, 3 Phase, 60 Hz, 56 Frame, ODP, 230/460 V, Foot-Mount)
.3336OT3E56-S WEG Motor (.33 HP, 3600 RPM, 3 Ph...
SKU: WEG-0008
In stock
Original price was: $ 314.60.Current price is: $ 261.33.

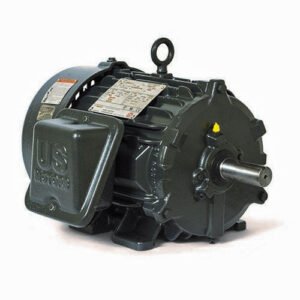

CD20P3G U.S. Motors General Purpose World Motor CORRO-Duty Motor (20 HP, 1200 RPM, 575 Voltage, 286T Frame, 3 Phase, TEFC)
CD20P3G U.S. Motors General Purpose World Motor...
SKU: USMOTORS-0233
In stock
$ 0.00

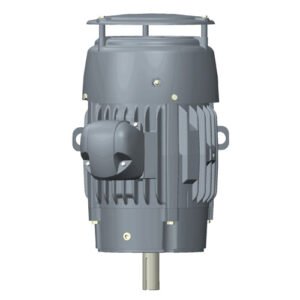

C50P2FSCR U.S. Motors Vertical C-Face Motor (50 HP, 1800 RPM, 460 Voltage, 326TSC Frame)
