350, 350, 350 & 4/0 Slippery Rock Aluminum Quadruplex URD Direct Burial Cable

SKU 3GCW25 Category
Availability: Some items may be in stock.
For current availability or a custom quote, please contact us at quote@amrocor.com.

Price:

$ 20.88

350, 350, 350 & 4/0 Slippery Rock Aluminum Quadruplex URD Direct Burial Cable

SKU 3GCW25 Category
Thumb
Product Image
Click image to view
Photo may not represent actual item. Refer to name and product specs for all details.
Price:

$ 20.88

Availability: Some items may be in stock.
For current availability or a custom quote, please contact us at quote@amrocor.com.

Description

350, 350, 350, & 4/0 Underground Secondary Distribution Cable

Color:
Black.

Description:
Underground Secondary Distribution Cables are twisted assemblies of alloy 1350 aluminum conductors insulated with cross-linked polyethylene. They are used in various underground applications in secondary distribution circuits.

Conductor:
Compressed Class B compressed stranded, 1350 series aluminum alloy.

Insulation:
Black cross-linked polyethylene (XLPE)

Assembly:
Phase conductors and neutral conductors are cabled together to form a twisted assembly.

Applicable Standards:
– UL 854: Service Entrance Cables
– ICEA S-105-692 Standard for 600 Volt Single Layer Thermoset Insulated Utility Underground Distribution Cables

350, 350, 350, & 4/0 Quadruplex URD Cable Specifications*:

Phase Conductor-Size: 350 MCM
Conductor Strand: 37
Neutral Conductor-Size: 4/0 AWG
Conductor Strand: 19
Insulation Thickness: 0.095 inches
Outside Diameter: 1.945 inches
Allowable Ampacity-Direct Burial: 385 Amps
Allowable Ampacity-In Duct: 305 Amps
Weight: 1.535 lbs per ft

*Data provided on this page is subject to change based on different manufacturers variances.

You may also like

Related products

Customers Also Bought

BQD6125 - Siemens - 25 Amp Molded Case Circuit Breaker
BQD6125 – Siemens – 25 Amp Molded C...
SKU: BQD6125
In stock
Original price was: $ 273.00.Current price is: $ 73.99.

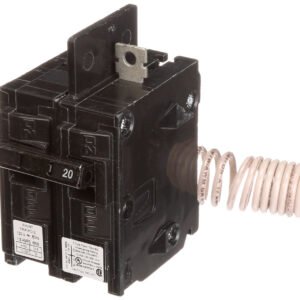

BQ1B02000S01 - Siemens - 20 Amp Shunt Trip Circuit Breaker
