50 kVA 12470Y/7200 Single Phase Pad-Mount Transformer

Categories ,
Availability: Some items may be in stock.
For current availability or a custom quote, please contact us at quote@amrocor.com.

Price:

$ 7,000.00

50 kVA 12470Y/7200 Single Phase Pad-Mount Transformer

Categories ,
Thumb
Product Image
Click image to view
Photo may not represent actual item. Refer to name and product specs for all details.
Price:

$ 7,000.00

Availability: Some items may be in stock.
For current availability or a custom quote, please contact us at quote@amrocor.com.

Description

This 50 kVA Single-Phase Pad-Mount Transformer efficiently steps down 12470Y/7200V to 120/240V, making it ideal for commercial, utility, and light industrial applications. Its dead-front, loop-feed configuration enhances safety, simplifies maintenance, and supports underground distribution networks. ONAN cooling delivers consistent, long-term performance, while the tamper-resistant pad-mount enclosure is engineered for durability in demanding outdoor conditions.

Technical Specifications:

  • Power Rating: 50 kVA

  • Phase: Single Phase

  • Primary Voltage: 12470Y/7200V

  • Secondary Voltage: 120/240V

  • Cooling: ONAN (Oil Natural Air Natural)

  • Configuration: Dead Front, Loop Feed

  • Mounting Type: Padmount

  • Insulation: Mineral Oil (FR3 fluid optional)

  • Application: Commercial, Utility, Light Industrial

  • Frequency: 60 Hz

  • Certifications: ANSI C57.12.00 / C57.12.34

  • Efficiency: Meets DOE 2016 energy efficiency standards

  • Temperature Rise: 65 °C

You may also like

Related products

Customers Also Bought

CV2200XMM - Eaton - Molded Case Circuit Breaker
CV2200XMM – Eaton – Molded Case Cir...
SKU: CV2200XMM
In stock
Original price was: $ 534.49.Current price is: $ 398.99.
6 AWG Walnut ACSR Aluminum Conductor Steel Reinforced
6 AWG Walnut ACSR Aluminum Conductor Steel Rein...
SKU: 6GCW1259
In stock
$ 15.60
CDPWD3585 Baldor Washdown Duty Permanent Magnet SCR Drive Motor (2 HP, 180 VDC, 1750 Base Speed)
CDPWD3585 Baldor Washdown Duty Permanent Magnet...
SKU: BALDOR-1501
In stock
Original price was: $ 7,320.00.Current price is: $ 4,931.85.
00236ET3H56C-S WEG Motor (2 HP, 3600 RPM, 3 Phase, 60 Hz, 56HC Frame, Foot Mount, TEFC, 575 V)
00236ET3H56C-S WEG Motor (2 HP, 3600 RPM, 3 Pha...
SKU: WEG-0932
In stock
Original price was: $ 672.10.Current price is: $ 523.39.
THN3361SS316 - General Electric - Disconnect
THN3361SS316 – General Electric – D...
SKU: THN3361SS316
In stock
$ 1,106.99

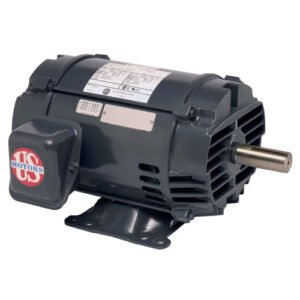

D100P3G U.S. Motors General Purpose Motor (100 HP, 444T Frame, Three Phase, 1200 RPM)
