50 kVA 13200Y/7620 Single Phase Pad-Mount Transformer

Categories ,
Availability: Some items may be in stock.
For current availability or a custom quote, please contact us at quote@amrocor.com.

Price:

$ 7,900.00

50 kVA 13200Y/7620 Single Phase Pad-Mount Transformer

Categories ,
Thumb
Product Image
Click image to view
Photo may not represent actual item. Refer to name and product specs for all details.
Price:

$ 7,900.00

Availability: Some items may be in stock.
For current availability or a custom quote, please contact us at quote@amrocor.com.

Description

This 50 kVA Single-Phase Pad-Mount Transformer steps down 13200Y/7620V to 120/240V with high efficiency, making it well-suited for commercial, utility, and light industrial distribution systems. Its dead-front, loop-feed configuration enhances operational safety, simplifies maintenance, and allows seamless integration into underground networks. Equipped with ONAN cooling, it delivers consistent, long-term performance, while its tamper-resistant pad-mount enclosure is engineered for reliable operation in demanding outdoor conditions.

Technical Specifications:

  • Power Rating: 50 kVA

  • Phase: Single Phase

  • Primary Voltage: 13200Y/7620V

  • Secondary Voltage: 120/240V

  • Cooling: ONAN (Oil Natural Air Natural)

  • Configuration: Dead Front, Loop Feed

  • Mounting Type: Padmount

  • Insulation: Mineral Oil (FR3 fluid optional)

  • Application: Commercial, Utility, Light Industrial

  • Frequency: 60 Hz

  • Certifications: ANSI C57.12.00 / C57.12.34

  • Efficiency: Meets DOE 2016 energy efficiency standards

  • Temperature Rise: 65 °C

You may also like

Related products

Customers Also Bought

LFD3070R - Eaton - Current Limiter
LFD3070R – Eaton – Current Limiter
SKU: LFD3070R
In stock
Original price was: $ 765.99.Current price is: $ 474.99.
QE115 - Siemens - 15 Amp GFEP Circuit Breaker
QE115 – Siemens – 15 Amp GFEP Circu...
SKU: GFCI-0181
In stock
$ 87.99
06012ET3H404T-W22 WEG Motor (60 HP, 1200 RPM, 3 Phase, 60 Hz, 404/5T Frame, TEFC, 575 V)
06012ET3H404T-W22 WEG Motor (60 HP, 1200 RPM, 3...
SKU: WEG-1033
In stock
Original price was: $ 13,646.10.Current price is: $ 10,626.90.
131541.00 Leeson Motors (P182C17FB12, 2 HP, 182 Frame, 1740RPM, 115/208-230V, TEFC)
131541.00 Leeson Motors (P182C17FB12, 2 HP, 18...
SKU: LEESON-0356
In stock
$ 0.00
NGB2B100B - Siemens - Molded Case Circuit Breaker
NGB2B100B – Siemens – Molded Case C...
SKU: NGB2B100B
In stock
$ 186.99
ECP84400T-5 Baldor Severe Duty IEEE 841 Motor (100 HP, 1800 RPM, 3 Phase, 405T Frame, TEFC Enclosure, 575 Voltage)
ECP84400T-5 Baldor Severe Duty IEEE 841 Motor (...
SKU: BALDOR-1162
In stock
Original price was: $ 31,521.25.Current price is: $ 22,222.49.
2050A14G10 - Eaton - Coil
2050A14G10 – Eaton – Coil
SKU: 2050A14G10
In stock
$ 649.99

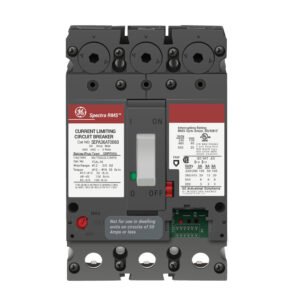

SEPA36AT0060 - GE - Molded Case Circuit Breaker
SEPA36AT0060 – GE – Molded Case Cir...
SKU: SEPA36AT0060
In stock
$ 550.99

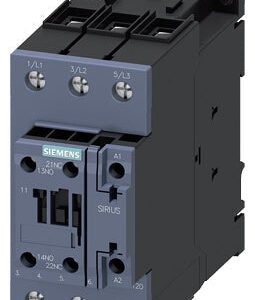

3RT20361AM20 - Siemens - 50 Amp Magnetic Contactor
