500, 500, 500 & 350 Wofford Aluminum Quadruplex URD Direct Burial Cable

SKU 5GCW26 Category
Availability: Some items may be in stock.
For current availability or a custom quote, please contact us at quote@amrocor.com.

Price:

$ 26.91

500, 500, 500 & 350 Wofford Aluminum Quadruplex URD Direct Burial Cable

SKU 5GCW26 Category
Thumb

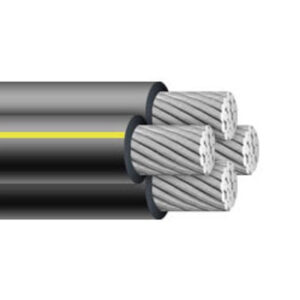

Product Image
Click image to view
Photo may not represent actual item. Refer to name and product specs for all details.
Price:

$ 26.91

Availability: Some items may be in stock.
For current availability or a custom quote, please contact us at quote@amrocor.com.

Description

500, 500, 500, & 350 Underground Secondary Distribution Cable

Color:
Black

Description:
Underground Secondary Distribution Cables are twisted assemblies of alloy 1350 aluminum conductors insulated with cross-linked polyethylene. They are used in various underground applications in secondary distribution circuits.

Conductor:
Compressed Class B compressed stranded, 1350 series aluminum alloy.

Insulation:
Black cross-linked polyethylene (XLPE)

Assembly:
Phase conductors and neutral conductors are cabled together to form a twisted assembly.

Applicable Standards:
– UL 854: Service Entrance Cables
– ICEA S-105-692 Standard for 600 Volt Single Layer Thermoset Insulated Utility Underground Distribution Cables

500, 500, 500, & 350 Quadruplex URD Cable Specifications*:

Phase Conductor-Size: 500 MCM
Conductor Strand: 37
Neutral Conductor-Size: 350 MCM
Conductor Strand: 37
Insulation Thickness: 0.095 inches
Outside Diameter: 2.348 inches
Allowable Ampacity-Direct Burial: 467 Amps
Allowable Ampacity-In Duct: 420 Amps
Weight: 2.174 lbs per ft

*Data provided on this page is subject to change based on different manufacturers variances.
