5000 kVA Three-Phase OLTC Substation Transformer

Categories ,
Availability: Some items may be in stock.
For current availability or a custom quote, please contact us at quote@amrocor.com.

Price:

$ 350,000.00

5000 kVA Three-Phase OLTC Substation Transformer

Categories ,
Thumb
Product Image
Click image to view
Photo may not represent actual item. Refer to name and product specs for all details.
Price:

$ 350,000.00

Availability: Some items may be in stock.
For current availability or a custom quote, please contact us at quote@amrocor.com.

Description

This 5000 kVA Three-Phase Substation Transformer with On-Load Tap Changer (OLTC) is engineered for high-capacity, continuous operation in demanding industrial, commercial, and utility applications. Designed for precise voltage regulation under load, it delivers reliable, efficient power distribution while meeting rigorous IEEE and UL standards.

Technical Specifications

Feature Specification
Cooling Type ONAN / ONAF
Primary Voltage 2,400 V – 46,000 V
Secondary Voltage 208 V – 15,000 V
Rated Frequency 60 Hz
Tap Range ±2 × 2.5% (On-Load Tap Changer)
Winding Materials Copper or Aluminum
Core Material Grain-Oriented Silicon Steel Sheet
Impedance ~6.50%
Standards IEEE C57.12.00 etc., UL Listed
Sound Level ~68 dB (for 10 MVA, similar levels for larger units)
Dielectric Fluid Options Non-PCB Mineral Oil or FR3 Biodegradable Oil
Vector Configurations Delta–Wye, Wye–Wye, Delta–Delta, Wye–Delta (per request)

You may also like

Related products

Customers Also Bought

20018OT3G445TS-W40 WEG Motor (200 HP, 445TS FRAME, 460 V, THREE PHASE, ODP , 1780 RPM)
20018OT3G445TS-W40 WEG Motor (200 HP, 445TS FRA...
SKU: WEG-2520
In stock
Original price was: $ 16,905.20.Current price is: $ 13,164.92.
TECL36100 - GE 100 Amp Molded Case Circuit Breaker
TECL36100 – GE 100 Amp Molded Case Circui...
SKU: TECL36100
In stock
$ 596.99
Belden 1585LC, Cat5e, 24 AWG, 4PR, U/Utp, Plenum, Nonbonded-Pair Twisted Cable - 1000 ft. Spool
Belden 1585LC, Cat5e, 24 AWG, 4PR, U/Utp, Plenu...
SKU: BELDEN-31
In stock
Original price was: $ 1,900.00.Current price is: $ 1,800.00.

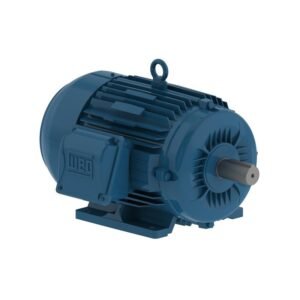

12512ET3ERB445T-W22 WEG Motor (125 HP, 1200 RPM, 3 Phase, 60 Hz, 444/5T Frame, TEFC, 230/460 V)
