5000 kVA Three-Phase OLTC Substation Transformer

Categories ,
Availability: Some items may be in stock.
For current availability or a custom quote, please contact us at quote@amrocor.com.

Price:

$ 350,000.00

5000 kVA Three-Phase OLTC Substation Transformer

Categories ,
Thumb
Product Image
Click image to view
Photo may not represent actual item. Refer to name and product specs for all details.
Price:

$ 350,000.00

Availability: Some items may be in stock.
For current availability or a custom quote, please contact us at quote@amrocor.com.

Description

This 5000 kVA Three-Phase Substation Transformer with On-Load Tap Changer (OLTC) is engineered for high-capacity, continuous operation in demanding industrial, commercial, and utility applications. Designed for precise voltage regulation under load, it delivers reliable, efficient power distribution while meeting rigorous IEEE and UL standards.

Technical Specifications

Feature Specification
Cooling Type ONAN / ONAF
Primary Voltage 2,400 V – 46,000 V
Secondary Voltage 208 V – 15,000 V
Rated Frequency 60 Hz
Tap Range ±2 × 2.5% (On-Load Tap Changer)
Winding Materials Copper or Aluminum
Core Material Grain-Oriented Silicon Steel Sheet
Impedance ~6.50%
Standards IEEE C57.12.00 etc., UL Listed
Sound Level ~68 dB (for 10 MVA, similar levels for larger units)
Dielectric Fluid Options Non-PCB Mineral Oil or FR3 Biodegradable Oil
Vector Configurations Delta–Wye, Wye–Wye, Delta–Delta, Wye–Delta (per request)

You may also like

Related products

Customers Also Bought

Placeholder
NFG3B200L – Siemens – 900 Amp Molde...
SKU: NFG3B200L
In stock
$ 1,413.99

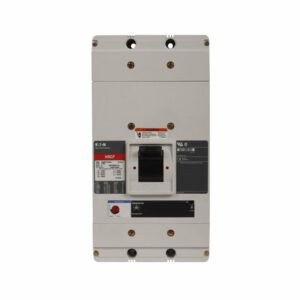

HMCP800X7 - Eaton - Molded Case Circuit Breaker
HMCP800X7 – Eaton – Molded Case Cir...
SKU: HMCP800X7
In stock
Original price was: $ 3,404.99.Current price is: $ 2,723.99.

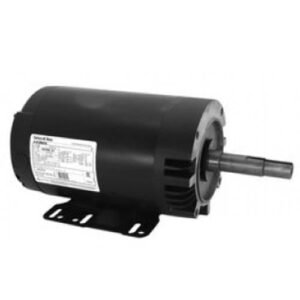

TCP71005 Century Industrial Close-Coupled Pump Motor (5 HP, 184JM Frame)
TCP71005 Century Industrial Close-Coupled Pump ...
SKU: CENTURY-0141
In stock
$ 0.00
LJL36600U33X - Square D - Molded Case Circuit Breaker
LJL36600U33X – Square D – Molded Ca...
SKU: LJL36600U33X
In stock
Original price was: $ 11,134.00.Current price is: $ 4,999.99.
FA32090 - Square D - Molded Case Circuit Breakers
FA32090 – Square D – Molded Case Ci...
SKU: MOLDED-3008
In stock
$ 603.99
CD3475 Baldor Shunt Wound SCR Drive Motor (3/4 HP, 90 VDC, TEFC , 1750 RPM)
CD3475 Baldor Shunt Wound SCR Drive Motor (3/4...
SKU: BALDOR-1440
In stock
Original price was: $ 2,291.25.Current price is: $ 1,543.74.
HJL36030 - Square D - Molded Case Circuit Breaker
HJL36030 – Square D – Molded Case C...
SKU: HJL36030
In stock
Original price was: $ 1,949.00.Current price is: $ 449.99.
HED43B045 - Siemens - Molded Case Circuit Breaker
HED43B045 – Siemens – Molded Case C...
SKU: HED43B045
In stock
$ 447.99

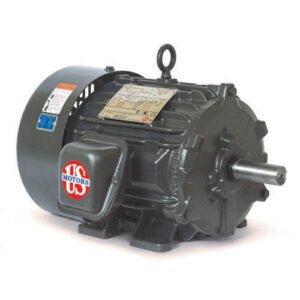

HD150P3FB U.S. Motors General Purpose World Motor Hostile Duty Motor (150 HP, 1200 RPM, 460 Voltage, 447T Frame)
