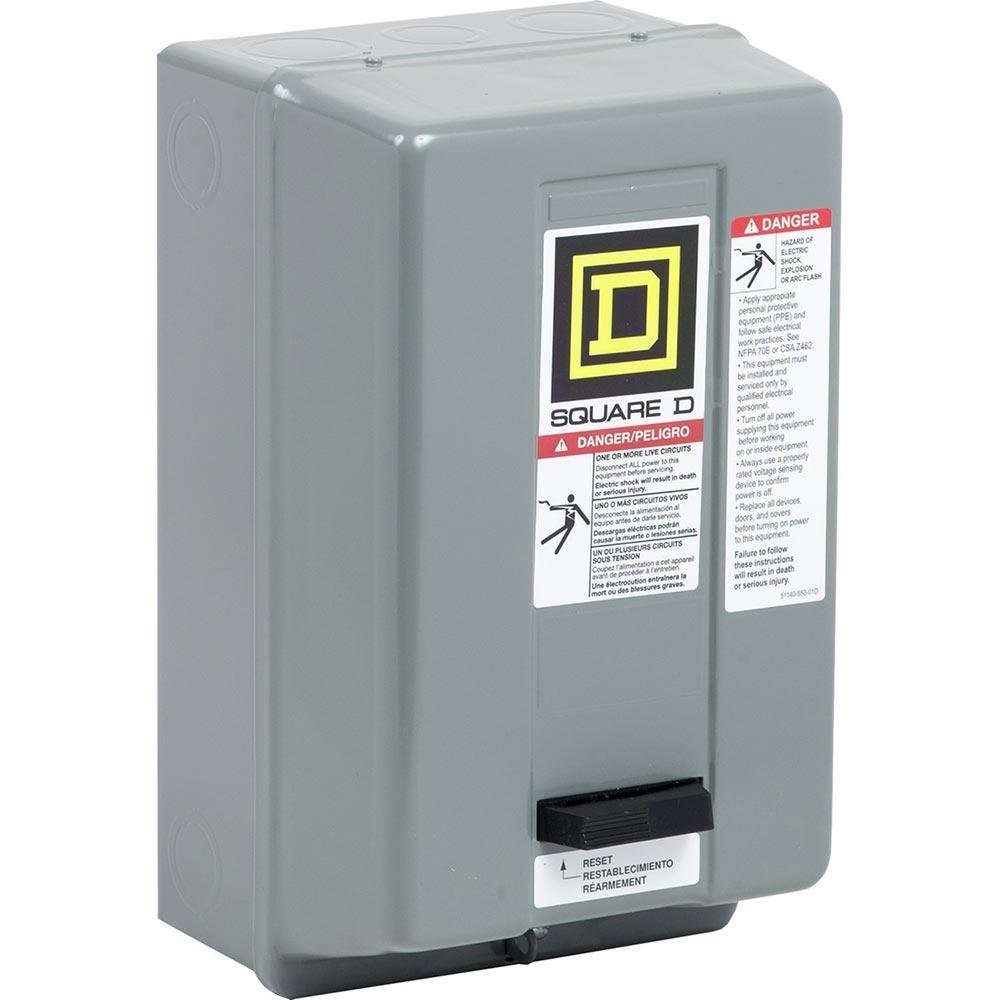

8536SBG2V03 – Square D Motor Starter

Schneider Electric / Square D Nema Starter features a three pole three phase 18 ampere Nema full voltage non reversing starter it has a high power rating of 3 Hp At 200/230 V 50/60 Hz 5 Hp At 460/575 V 50/60 Hz with overloads melting alloy.

Specifications:

• Product or Component Type: Starter
• Type: S
• Control Circuit Type: Common control circuit
• Control Circuit Voltage: 220 V AC 50 Hz, 240 V AC 60 Hz
• Motor starter type: Non reversing
• Line Rated Current: 18 A
• Number of Poles: 3P
• Phase: 3 phases
• Horsepower Rating: 3 HP 200 V AC, 3 HP 230 V AC, 5 HP 460 V AC, 5 HP 575 V AC
• System Voltage: 600 V AC
• Control Units: No control units
• Thermal overload type: Melting alloy 3 Thermal Units
• Electrical connection: Screw clamp terminals
• NEMA size: 0
• Height: 10 in (254 mm)
• Depth: 5.55 in (141 mm)
• Width: 5.98 in (152 mm)
• Enclosure Type: NEMA 1 painted sheet steel
• Product certifications: UL listed, CSA, NEMA
• Authentic Square D Product
• Dimensions (H x W x L): 10″ x 5.98″ x 5.55″
• 3 phase
