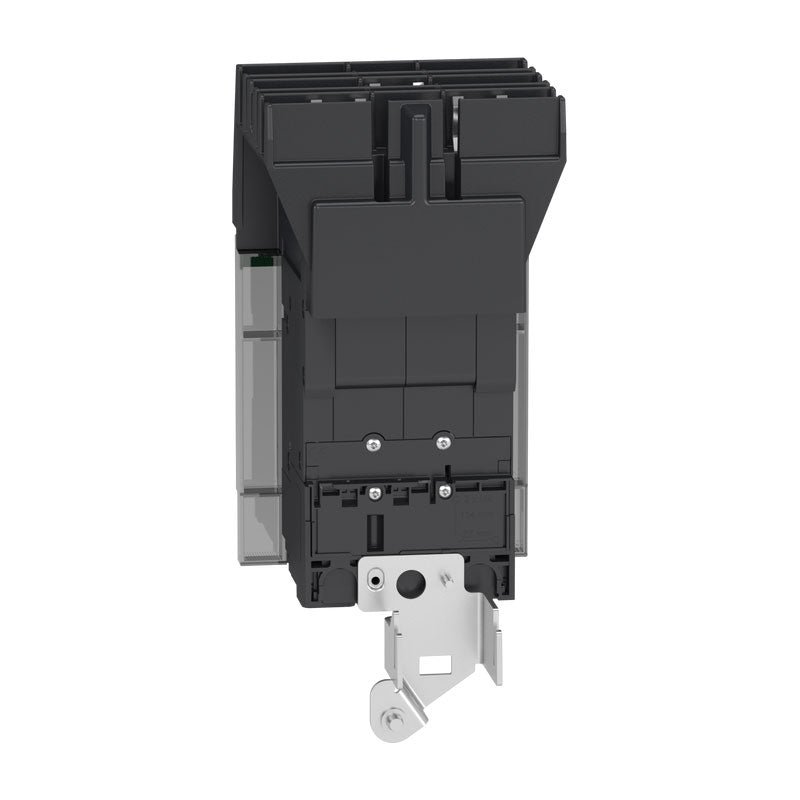

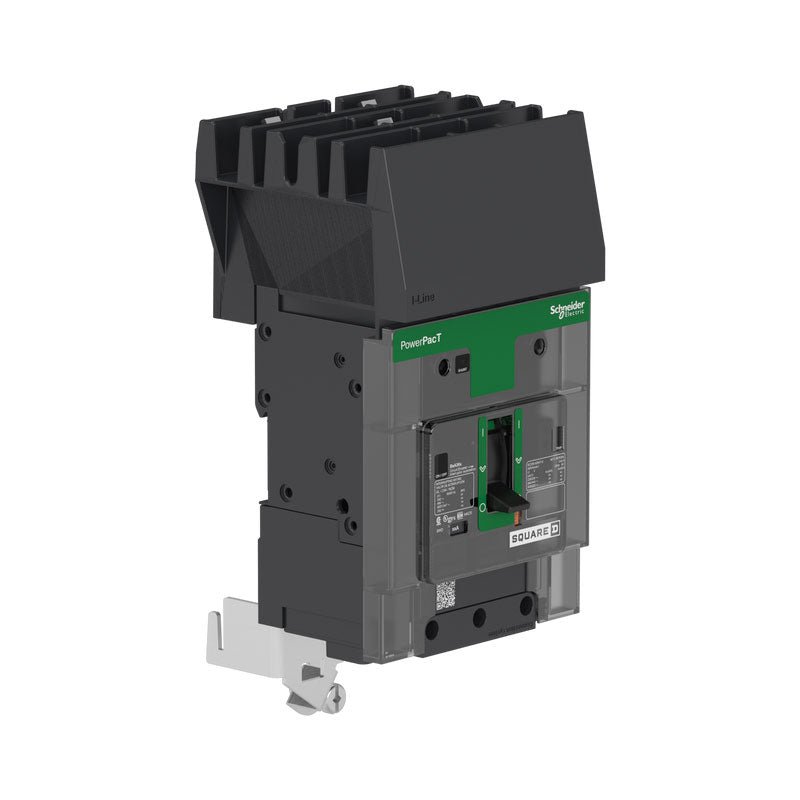

BDA36080 – Square D – Molded Case Circuit Breaker

SKU MOLDED-0370 Category
Availability: Some items may be in stock.
For current availability or a custom quote, please contact us at quote@amrocor.com.

Price:

Original price was: $ 1,225.00.Current price is: $ 599.99.

BDA36080 – Square D – Molded Case Circuit Breaker

SKU MOLDED-0370 Category
Thumb
Thumb
Thumb
Thumb
Thumb
Product Image
Product Image
Product Image
Product Image
Product Image
Click image to view
Photo may not represent actual item. Refer to name and product specs for all details.
Price:

Original price was: $ 1,225.00.Current price is: $ 599.99.

Availability: Some items may be in stock.
For current availability or a custom quote, please contact us at quote@amrocor.com.

Description

Overview

Product Specifications – BDA36080 – Square D Molded Case Circuit Breakers

  • Part Number:

    BDA36080

  • Manufacturer:

    Square D

  • Family:

    Powerpact

  • Pole:

    3

  • Amp

    80

  • Volt:

    600

  • Phase:

    3

  • Category:

    Molded Case / 3-Pole

  • Connection:

    I-Line Style Plug-In

  • Type:

    BDA

  • Functions:

    LI – Long-Time and Instantaneous

  • Protection:

    Thermal Magnetic

  • AIC Ratings:

    18kA@480V

Dimensions

  • Dimensions (HxWxD):

    5.39″ x 3.19″ x 3.50″

  • Weight:

    2.90 lbs

Additional Details

  • Trip Unit Technology:

    Thermal-magnetic

  • Line Rated Current:

    80 Amp

  • Mounting Mode:

    I-Line

  • Breaking Capacity Code

    D

  • Electrical Connection:

    I-Line connection line / Lugs load

  • Continuous Current Rating

    80%

  • Control Type:

    Toggle

  • AWG Gauge:

    AWG 14…AWG 2/0 aluminium/copper

Standards

CSA Approved logo

Product Description – BDA36080 – Square D Molded Case Circuit Breakers

Square D / Schneider Electric, Powerpact, type BDA, 3PH, 3P, 600Y/347Vac, 80A, 18kA@480V rated, i-line style plug-in with ABC phase connection, complete with non-interchangeable trip, LI – Long-Time and Instantaneous trip functions and load side mechanical lug terminals, thermal magnetic, molded case circuit breakers

Documentation

PDF Icon Catalogue

PDF Icon Product Specifcation
