BDL26070 – Square D – Molded Case Circuit Breaker

SKU BDL26070 Category
Availability: Some items may be in stock.
For current availability or a custom quote, please contact us at quote@amrocor.com.

Price:

$ 314.99

BDL26070 – Square D – Molded Case Circuit Breaker

SKU BDL26070 Category

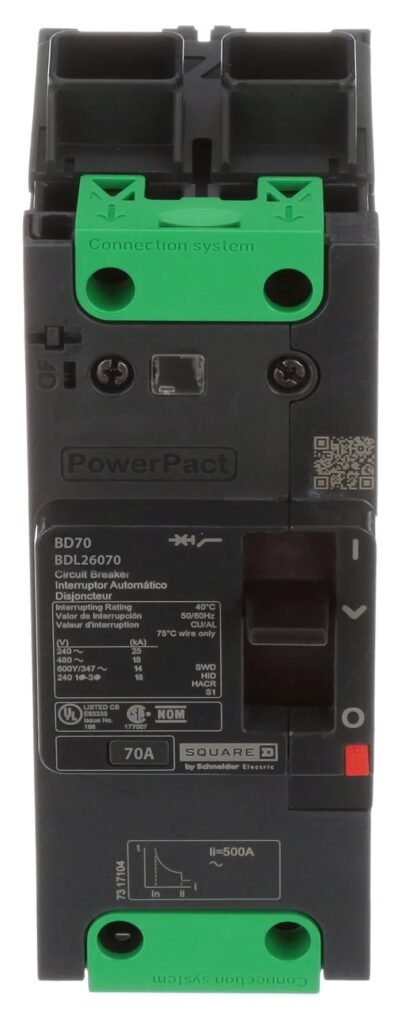

Thumb
Product Image
Click image to view
Photo may not represent actual item. Refer to name and product specs for all details.
Price:

$ 314.99

Availability: Some items may be in stock.
For current availability or a custom quote, please contact us at quote@amrocor.com.

Description

Overview

Product Specifications – BDL26070 – Square D Molded Case Circuit Breakers

  • Part Number:

    BDL26070

  • Manufacturer:

    Square D

  • Family:

    Powerpact

  • Pole:

    2

  • Amp

    70

  • Volt:

    600

  • Phase:

    1

  • Category:

    Molded Case / 2-Pole

  • Connection:

    Feed-Thru

  • Type:

    BDL

  • Functions:

    LI – Long-Time and Instantaneous

  • Protection:

    Thermal Magnetic

  • AIC Ratings:

    18kA@480V

Dimensions

  • Dimensions (HxWxD):

    5.39″ x 2.13″ x 3.15″

  • Weight:

    1.70 lbs

Additional Details

  • Trip Unit Technology:

    Thermal-magnetic

  • Line Rated Current:

    70 Amp

  • Mounting Mode:

    Clip-on 35 x 15 mm symmetrical DIN rail)
    By screws plate)

  • Breaking Capacity Code

    D

  • Electrical Connection:

    Everlink lug line / Everlink lug load

  • Continuous Current Rating

    80%

  • Control Type:

    Toggle

  • AWG Gauge:

    AWG 6…AWG 2/0 fine stranded aluminium/copper
    AWG 14…AWG 3/0 rigid or stranded aluminium/copper

Standards

CSA Approved logo

Product Description – BDL26070 – Square D Molded Case Circuit Breakers

Square D / Schneider Electric, Powerpact, type BDL, 1PH, 2P, 600Y/347Vac, 70A, 18kA@480V, feed-thru with EverLink connectors, complete with non-interchangeable trip, LI – Long-Time and Instantaneous trip functions and line & load side lug terminals.

Documentation

PDF Icon Catalogue

PDF Icon Product Specifcation
