ED22B100L – Siemens – Molded Case Circuit Breaker

SKU ED22B100L Category
Availability: Some items may be in stock.
For current availability or a custom quote, please contact us at quote@amrocor.com.

Price:

$ 132.99

ED22B100L – Siemens – Molded Case Circuit Breaker

SKU ED22B100L Category
Thumb

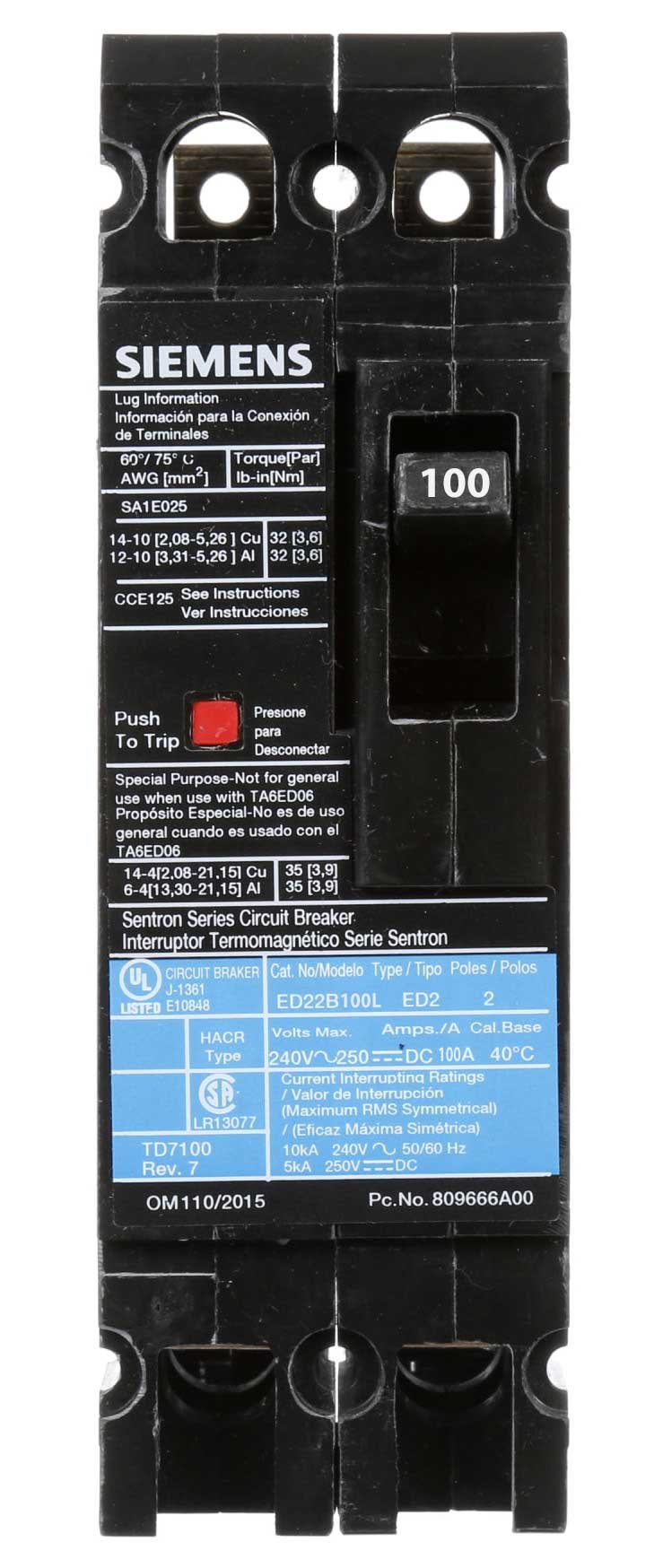

Product Image
Click image to view
Photo may not represent actual item. Refer to name and product specs for all details.
Price:

$ 132.99

Availability: Some items may be in stock.
For current availability or a custom quote, please contact us at quote@amrocor.com.

Description

Overview

Product Specifications – ED22B100L – Siemens Breakers Molded Case Circuit Breakers

  • Part Number:

    ED22B100L

  • Manufacturer:

    Siemens Breakers

  • Family:

    Sentron Series

  • Pole:

    2

  • Amp

    100

  • Volt:

    240

  • Phase:

    1

  • Category:

    Molded Case / 2-Pole

  • Connection:

    Feed-Thru

  • Type:

    ED

  • Functions:

    LI – Long-Time and Instantaneous

  • Protection:

    Thermal Magnetic

  • AIC Ratings:

    10kA@240V

Dimensions

  • Dimensions (HxWxD):

    6.35″ x 2″ x 3.92″

  • Weight:

    2.7 lbs

Standards

CSA Approved logo

Product Description – ED22B100L – Siemens Breakers Molded Case Circuit Breakers

Siemens, Sentron Series, type ED, 2P, 1PH, 100A, 240V, 10kA@240V, standard interrupting capacity, 40 degree C, feed-thru, complete with LI – Long-Time and Instantaneous trip functions and line & load side lug terminals, thermal magnetic molded case circuit breakers.

Documentation

PDF Icon Catalogue

PDF Icon Installation Instructions
